65W GaN battery charger

65W GaN Charger for 10.6~29.4V Li-Ion, LiFePO4 and Pb-Acid battery type

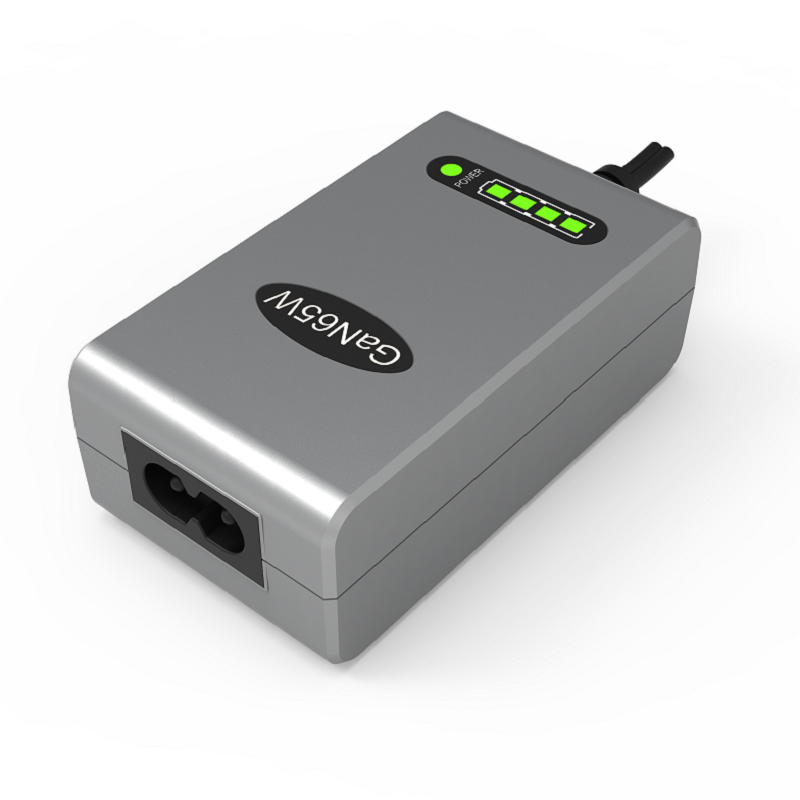

65W GaN battery charger

G6012-LX lithium battery charger is suitable for 3 ~ 8 series lithium ion batteries, with outputs of 12.6V3.3A, 16.8V2.8A, 21V2.2A, and 29.4V1.6A; G6012-FX iron lithium battery charger is suitable for...

Specifications

Rated input: 100~240V 50/60Hz

Rated output: 10.8V~29.4V 65W, see the attached table for details

Efficiency: >90%

Suitable batteries: Lead-acid batteries, Li-ion batteries, LiFePO4 batteries

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)

Output protection:  overcurrent, overvoltage, short circuit, reverse connection protection

Safety certification: cTUVus, CE, FCC

Dimensions Weight: 73 x 67 x 29mm/270g


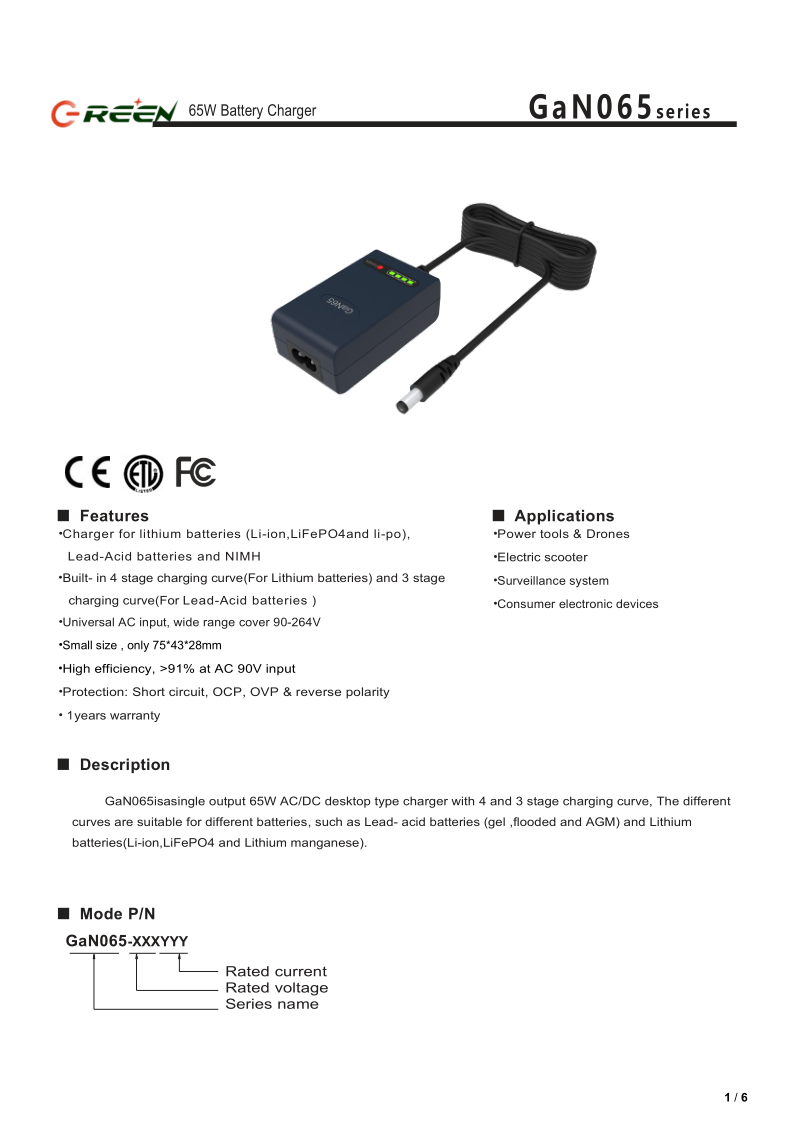

Product features:

  • GaN Based Power Supplies with Enhanced Digital Control, slim szie and hing effiency.

  • Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.

  • Suitable for 3 to 8 series Li-Ion / LiFePO4 batteries,  12V/24V Pb-Acid (SLA, VRLA, AGM, GEL).

  • Four segment green LEDs to indicate battery SOC (capacity level) during charging process

  • Multiple protections for overcurrent, overvoltage, and short circuit error.

  • Safety certifications,  CCC, cTUVus, FCC, PSE, CE





Detailed technical indicators:

Rated input: 100~240V

Rated output: 10.8V~29.4V 65W, see the attached table for output voltage and current of each model

Suitable batteries: 10.8V~26.2V li-ion, LiFePO4 battery,  12V~24V lead-acid (VRLA, AGM, GEL) batteries

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)

Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc

Power efficiency: 90% @ 220V full load output

Back Drain current: less than 1.5 mA (current flowing from battery  to the charger when AC off)

Operating temperature: - 10~+40 ℃

Heat dissipation: natural cooling (without fan)

AC Input plug: AC inlet ICE-320-C8 type, AC cable / plug is optional part.

DC Output plug: standard DC terminal 5.5 * 2.5 * 12mm, output wire AWG18, length 1.5m

Safety certification: CE, cTUVus, FCC

Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000

Dimensions Weight: 73 x 43 x 28mm/100g


P/N of all GaN065-xxxyyy

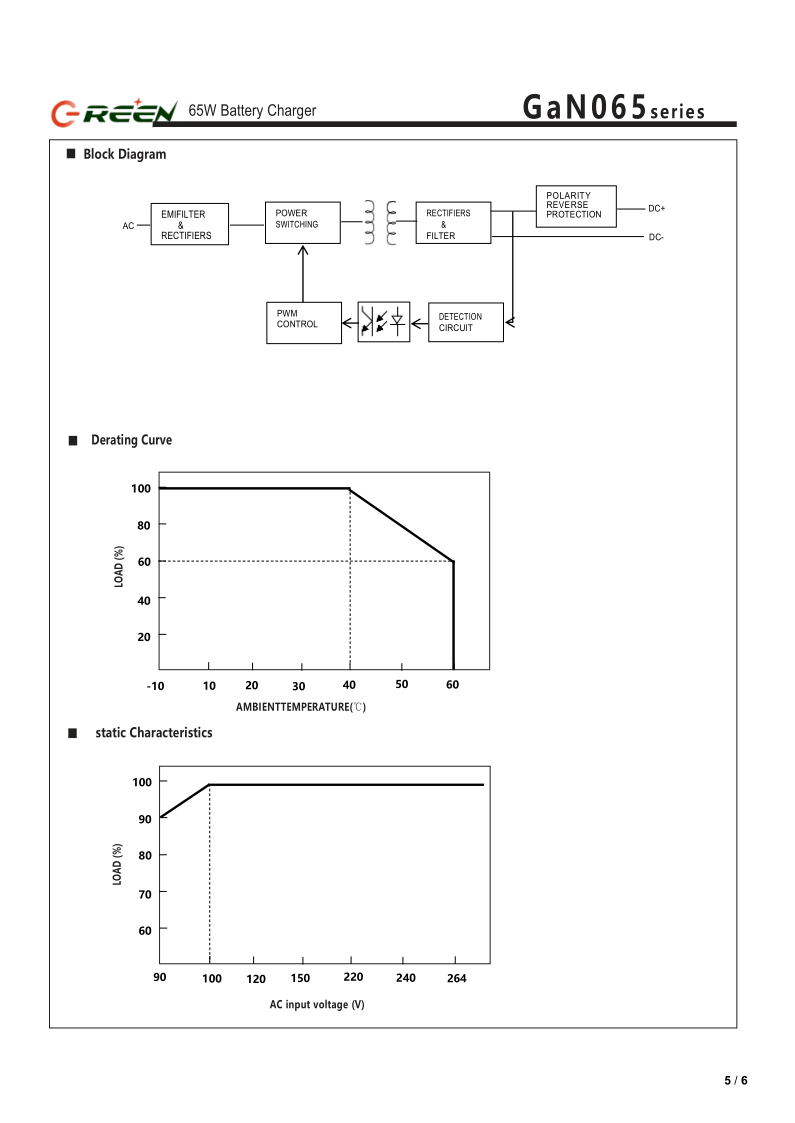

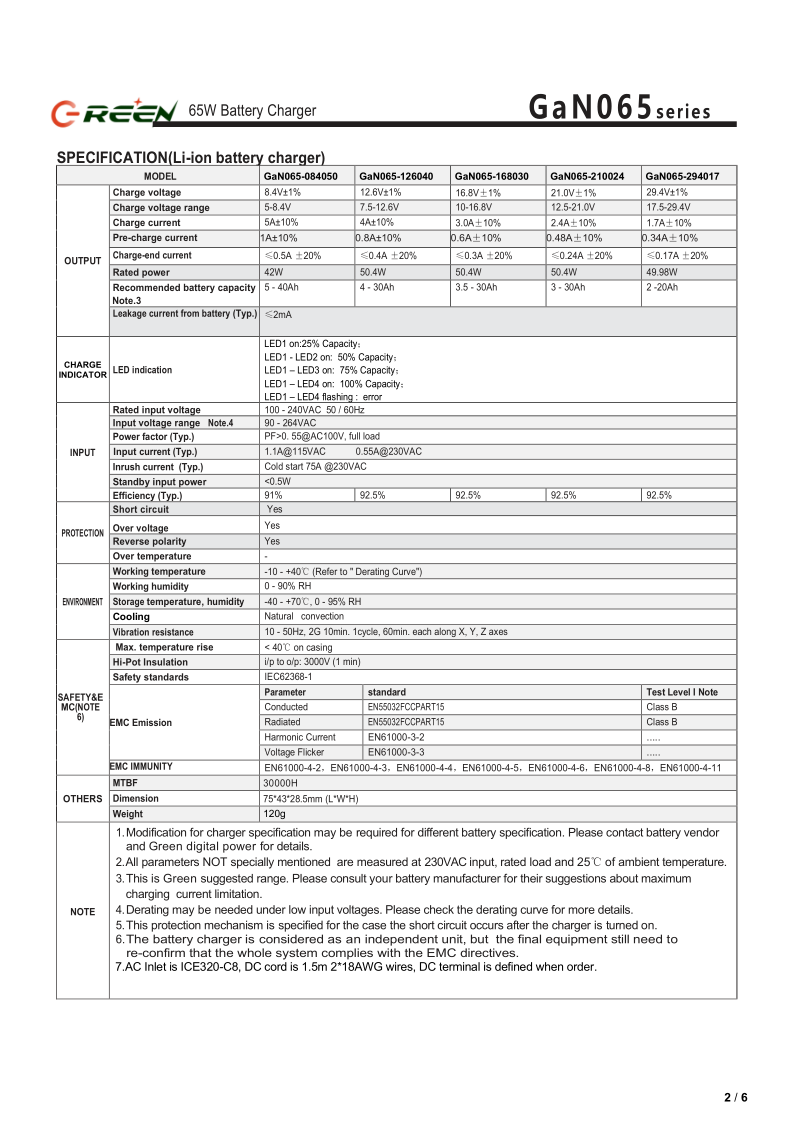

Models for Li-Ion battery charger:

P/NCharge VoltageCharge CurrentCut-off currentSuitable battery
GaN065-12604012.6V +-1%4.0A +-7%0.4A +-0.08A3S Li-ion 4~45Ah
GaN065-16803816.8V +-1%3.8A +-7%0.4A +-0.08A4S Li-ion 4~38Ah
GaN065-21003021.0V +-1%3.0A +-7%0.3A +-0.06A5S Li-ion 3~30Ah
GaN065-25202525.2V +-1%2.5A +-7%0.3A +-0.06A6S Li-ion 3~25Ah
GaN065-29402229.4V +-1%2.2A +-7%0.3A +-0.06A7S Li-ion 2~22Ah

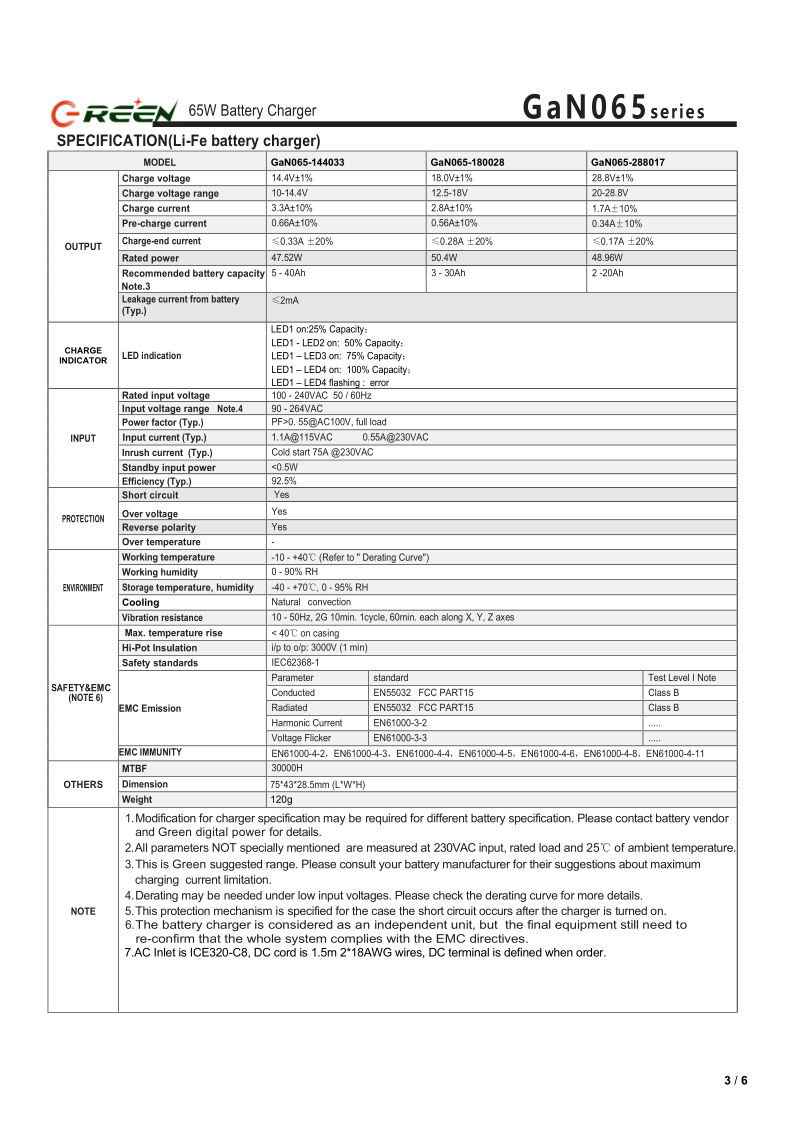

Models for LiFePO4 battery charger:

P/NCharge VoltageCharge CurrentCut-off currentSuitable battery
GaN065-14404014.4V +-1%4.0A +-7%0.4A +-0.07A4S LiFePO4 3~30Ah
GaN065-18003518.0V +-1%3.5A +-7%0.4A +-0.07A5S LiFePO4 3~26Ah
GaN065-21603021.6V +-1%3.0A +-7%0.3A +-0.06A6S LiFePO4 2~20Ah
GaN065-28802228.8V +-1%2.2A +-7%0.2A +-0.06A8S LiFePO4 2~18Ah

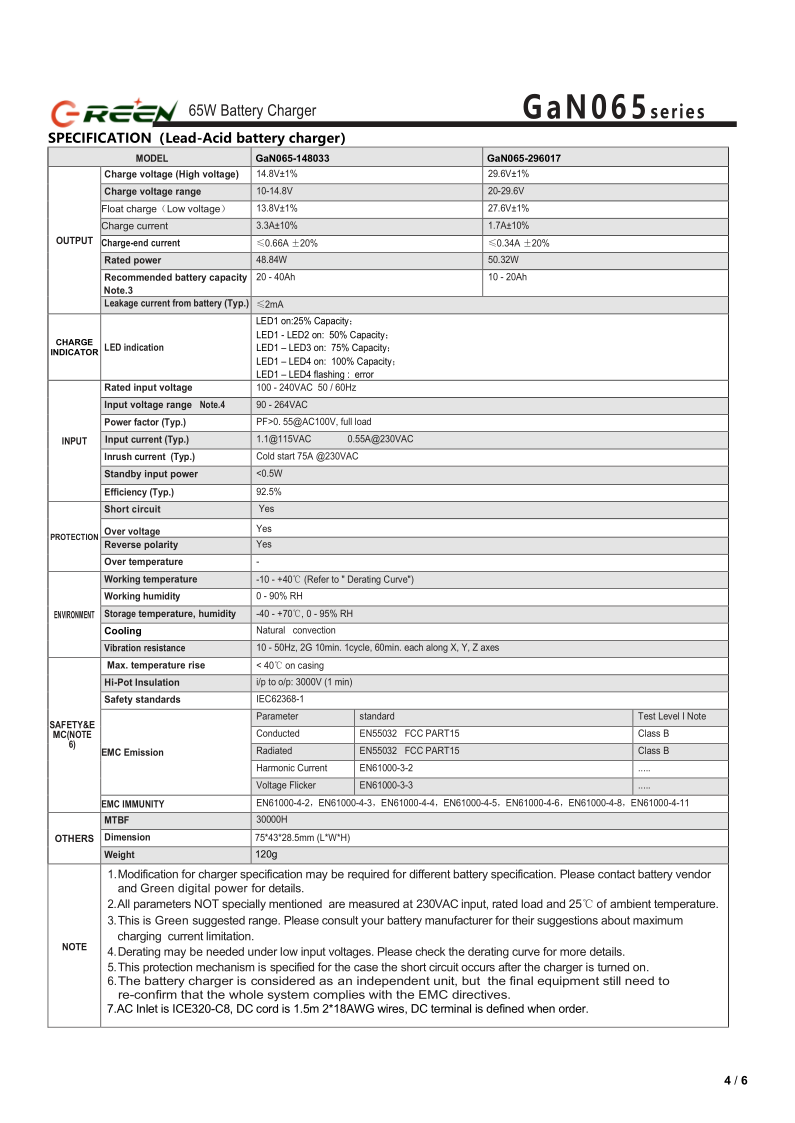

Models for Pb-Acid battery charger

P/NCharge VoltageCharge CurrentFloating voltageSuitable battery
GaN065-138040
14.5V +-1%4.0A +-7%13.8V +-1%12V Pb-Acid 16~ 50Ah
GaN065-27602029.0V +-1%2.0A +-7%27.6V +-1%24V Pb-Acid 8~24Ah



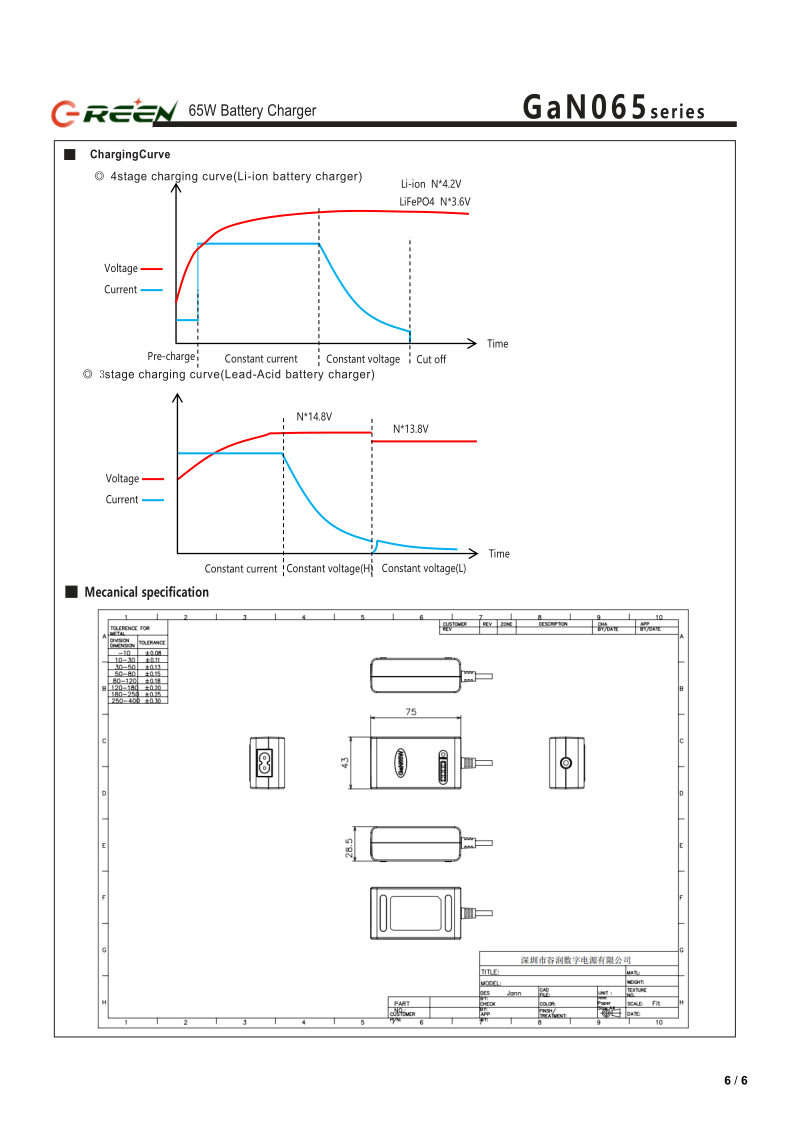

product drawing:
