Specifications
Rated input: 100~240V 50/60Hz
High Power Factor: > 0.98
Rated output: 12V~58.8V 168W, see the attached table for details
High effiency: 95%@220V input, full load output
Suitable batteries: Lead-acid batteries, Li-ion batteries, LiFePO4 batteries

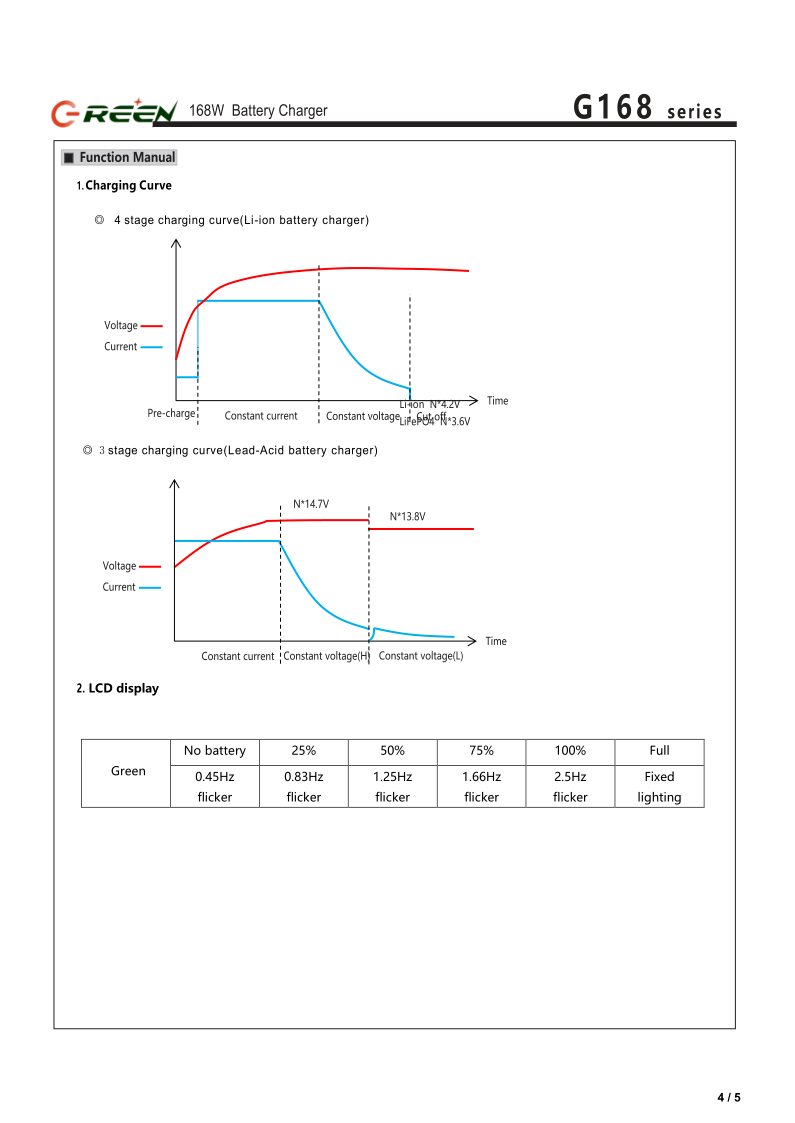

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: Smart Bi-color LEDto indicate battery SOC (capacity level) and erros
Output protection: overcurrent, overvoltage, short circuit, reverse connection protection
Safety certification: cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC

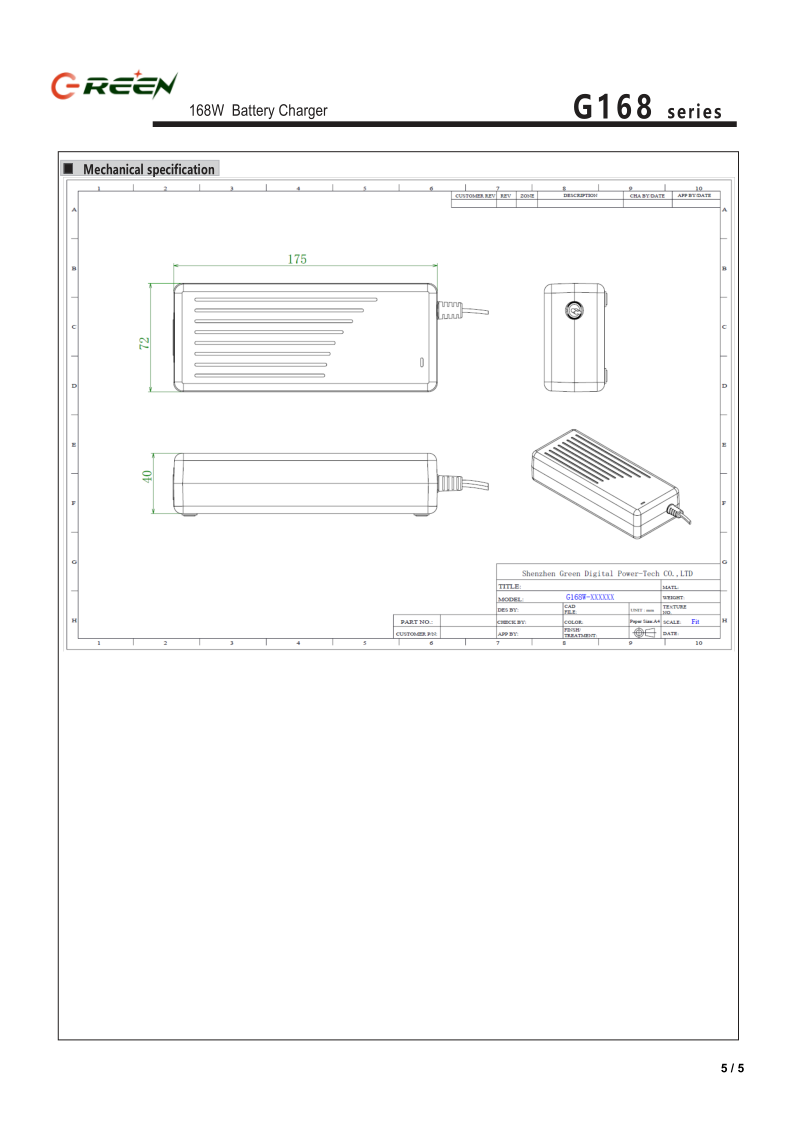

Dimensions Weight: 175 x 72 x 41mm/700g
Product features:
Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.
95% high power effiency, and 0.98 power factor for AC power line
Suitable for 4 to 16 series Li-Ion / LiFePO4 batteries, 12V~48V Pb-Acid (SLA, VRLA, AGM, GEL).
Four segment green LEDs to indicate battery SOC (capacity level) during charging process
Multiple protections for overcurrent, overvoltage, and short circuit error.
Safety certifications, CCC, cTUVus, FCC, PSE, CE
Detailed technical indicators:
Rated input: 100~240V
Rated output: 12V~58.8V 90W, see the attached table for output voltage and current of each model
Suitable batteries: 12V~48V li-ion, LiFePO4 battery, 12V~48V lead-acid (VRLA, AGM, GEL) batteries
Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)
Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc
Power efficiency: 95% @ 220V full load output
Back Drain current: less than 1.5 mA (current flowing from battery to the charger when AC off)
Operating temperature: - 10~+40 ℃
Heat dissipation: natural cooling (without fan)
AC Input plug: AC inlet ICE-320-C8 type, AC cable / plug is optional part.
DC Output plug: standard DC terminal 5.5 * 2.5 * 12mm or XT-60, output wire AWG18, length 1.5m
Safety certification: CCC, CE, cTUVus, FCC, PSE
Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000
Dimensions Weight: 175 x 72 x 41mm/400g
P/N of all G168-xy

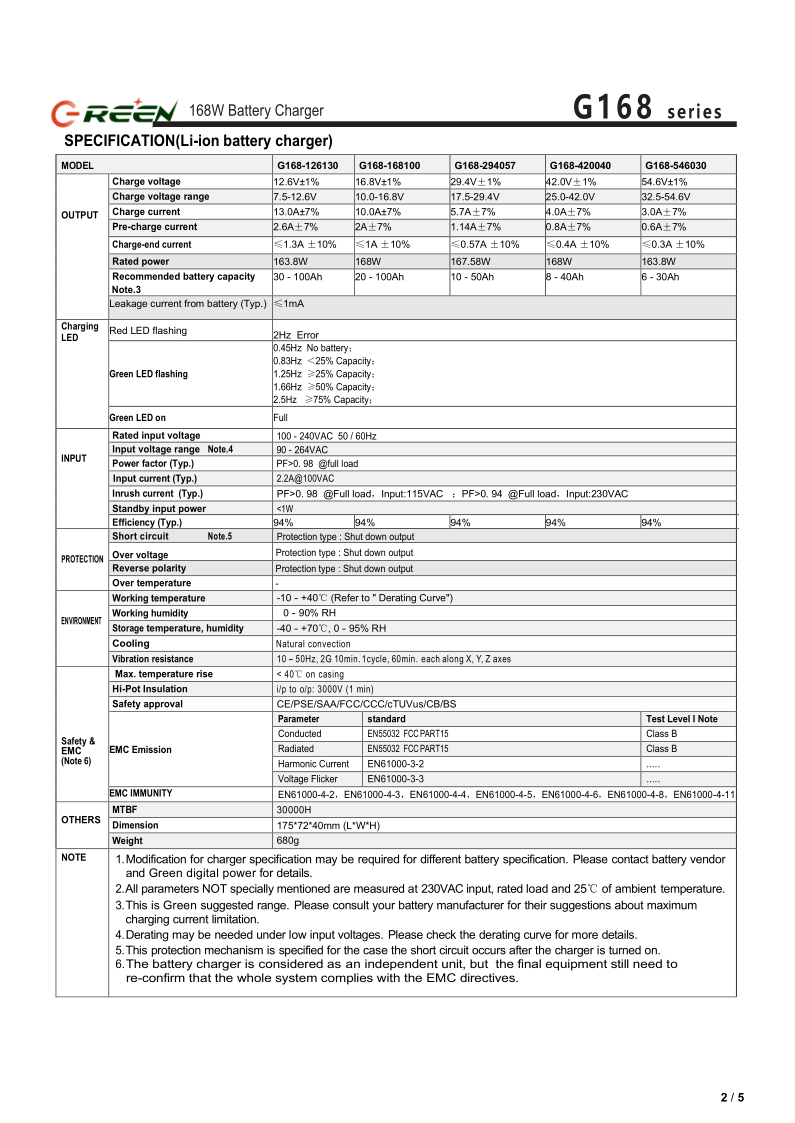

Models for Li-Ion battery charger:
| P/N | Charge Voltage | Charge Current | Cut-off current | Suitable battery |
| G168-168100 | 16.8V +-1% | 10A +-7% | 1.3A +-0.15A | 4S LI-ION 10~100Ah |
| G168-210070 | 21.0V +-1% | 7.0A +-7% | 0.7A +-0.1A | 5S LI-ION 7~70Ah |
| G168-252066 | 25.2V +-1% | 6.6A +-7% | 0.7A +-0.1A | 6S LI-ION 7~70Ah |
| G168-294057 | 29.4V +-1% | 5.7A +-7% | 0.6A +-0.08A | 7S LI-ION 6~60Ah |
| G168-420040 | 42.0V +-1% | 4.0A +-7% | 0.4A +-0.06A | 10S LI-ION 4~40Ah |
| G168-588030 | 58.8V +-1% | 3.0A +-7% | 0.3A +-0.05A | 14S LI-ION 3~30Ah |

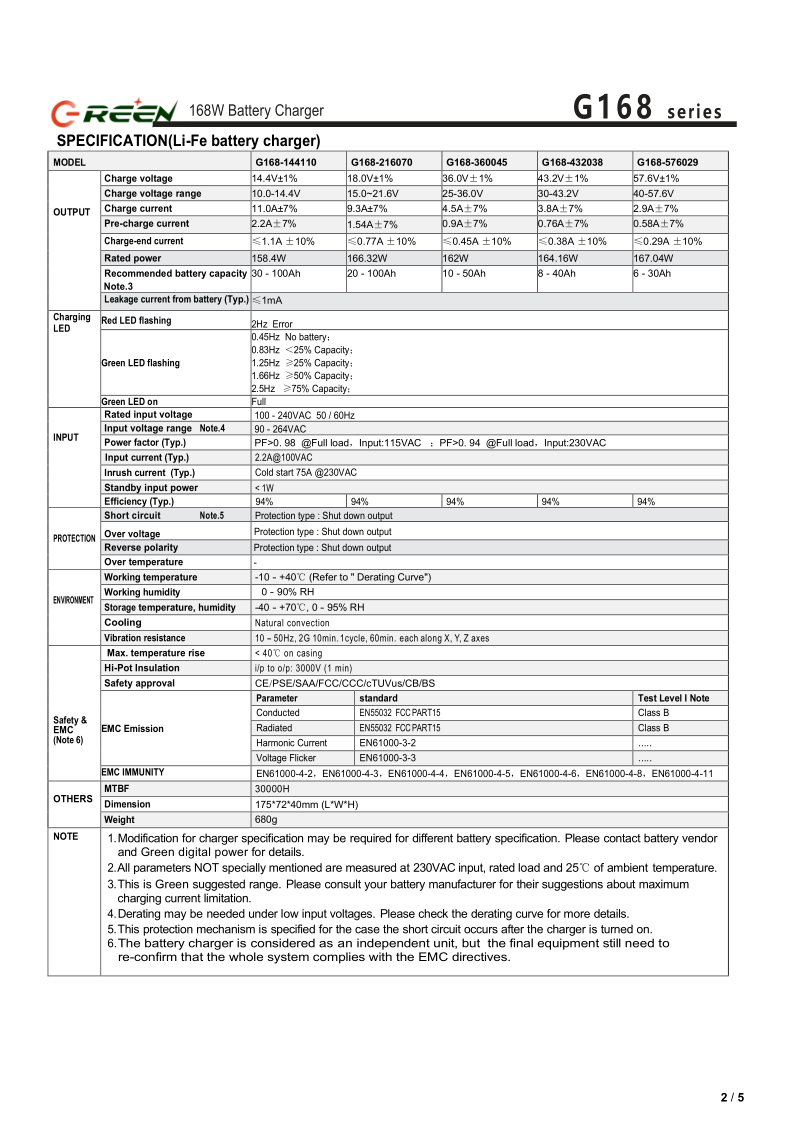

Models for LiFePO4 battery charger:
| P/N | Charge Voltage | Charge Current | Cut-off current | Suitable battery |
| G168-144110 | 14.4V +-1% | 11A +-7% | 1.1A +-0.15A | 4S LIFEPO4 10~100Ah |
| G168-180093 | 18.0V +-1% | 9.3A +-7% | 0.9A +-0.1A | 5S LIFEPO4 10~100Ah |
| G168-216070 | 21.6V +-1% | 7.0A +-7% | 0.7A +-0.1A | 6S LIFEPO4 7~70Ah |
| G168-288057 | 28.8V +-1% | 5.7A +-7% | 0.6A +-0.08A | 8S LIFEPO4 6~60Ah |
| G168-360045 | 36.0V +-1% | 4.5A +-7% | 0.5A +-0.07A | 10S LIFEPO4 5~50Ah |
| G168-432038 | 43.2V +-1% | 3.8A +-7% | 0.4A +-0.06A | 12S LIFEPO4 4~40Ah |
| G168-576029 | 57.6V +-1% | 2.9A +-7% | 0.3A +-0.05A | 16S LIFEPO4 3~30Ah |

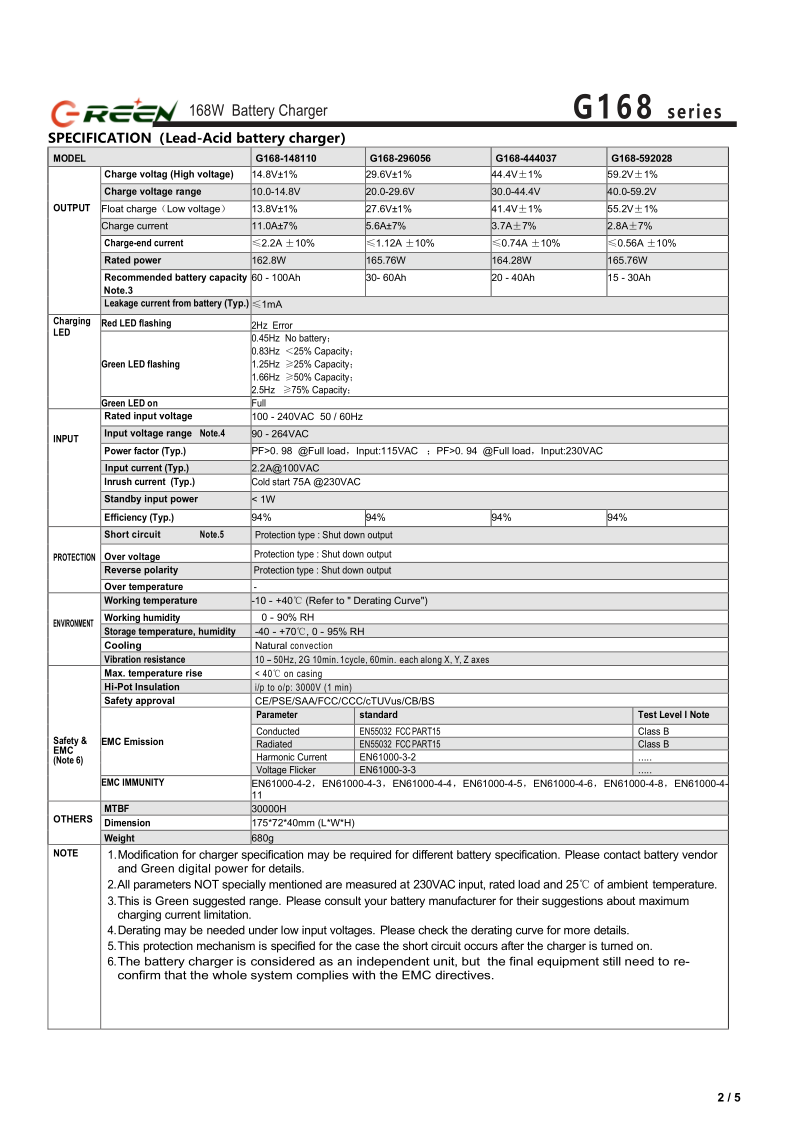

Models for Pb-Acid battery charger
| P/N | Charge Voltage | Charge Current | Cut-off current | Suitable battery |
| G168-148110 | 14.8V +-1% | 11A +-7% | 13.8V +-1% | 12V 44~ 130Ah |
| G168-296056 | 29.6V +-1% | 5.5A +-7% | 27.6V +-1% | 24V 22~66Ah |
| G168-444037 | 44.4V +-1% | 4.4A +-7% | 41.4V +-1% | 36V 18~ 50Ah |
| G168-592028 | 59.2V +-1% | 2.8A +-7% | 55.2V +-1% | 48V 10~30Ah |

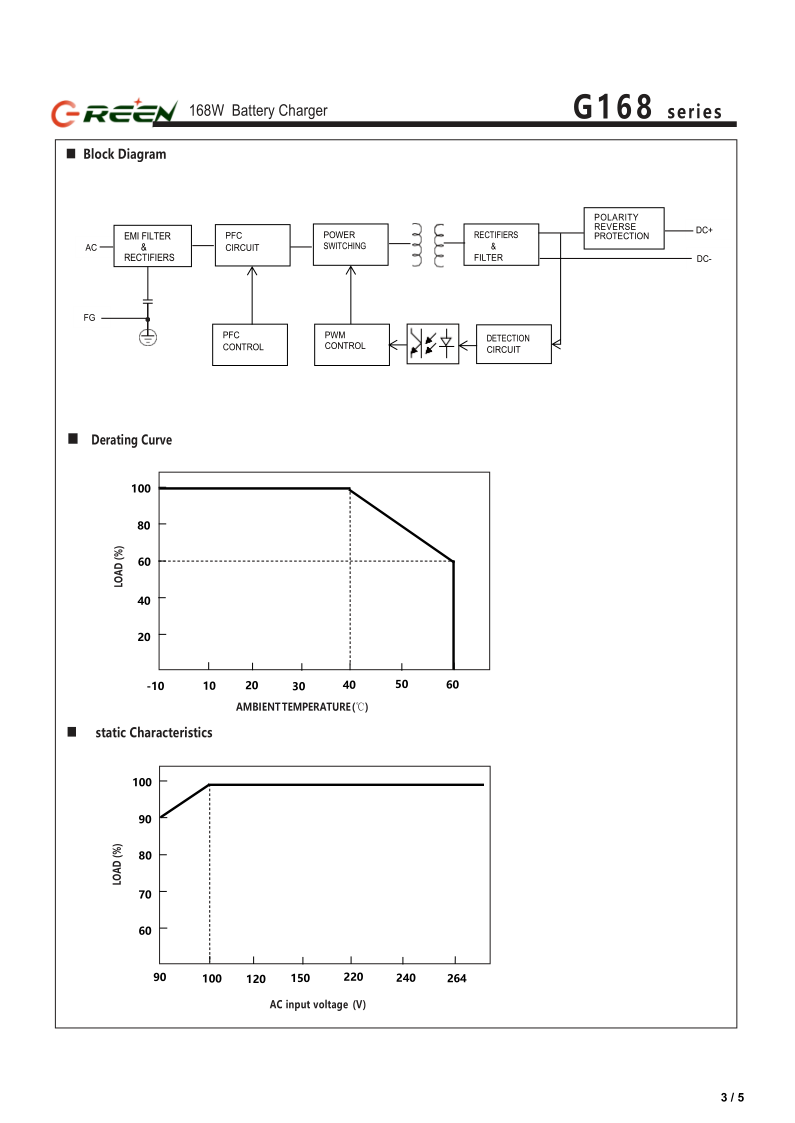

Details specification::

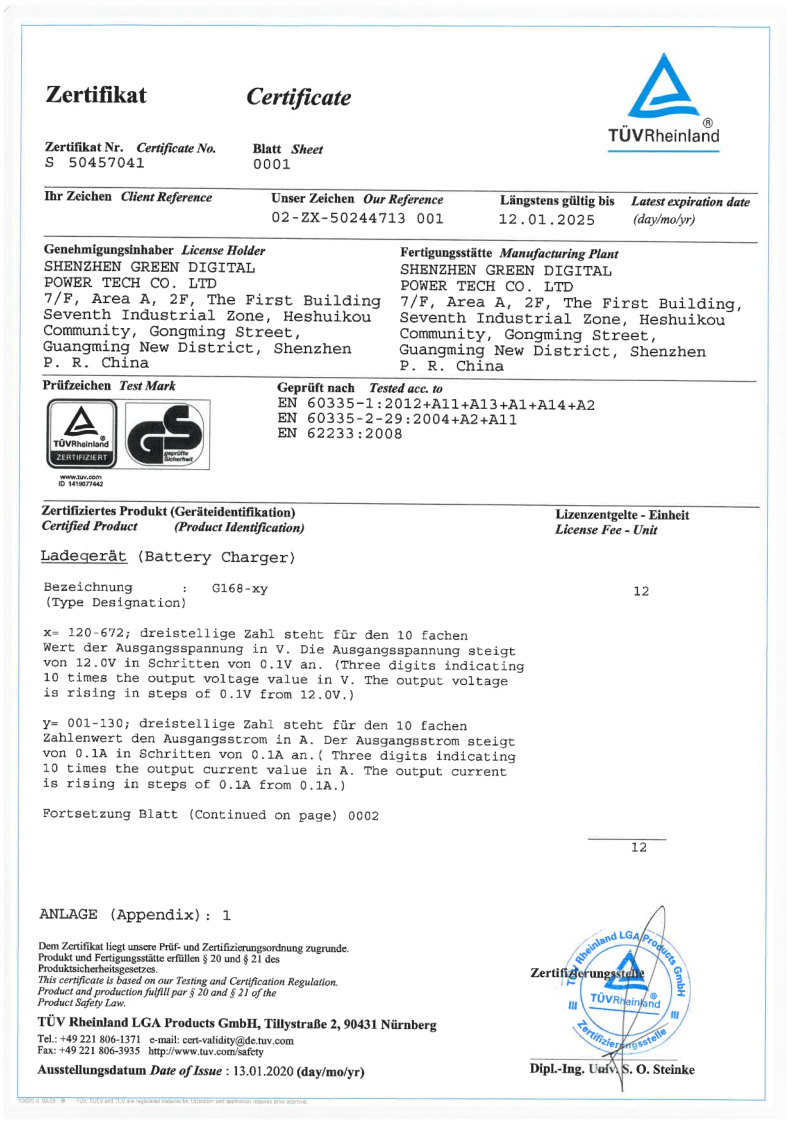

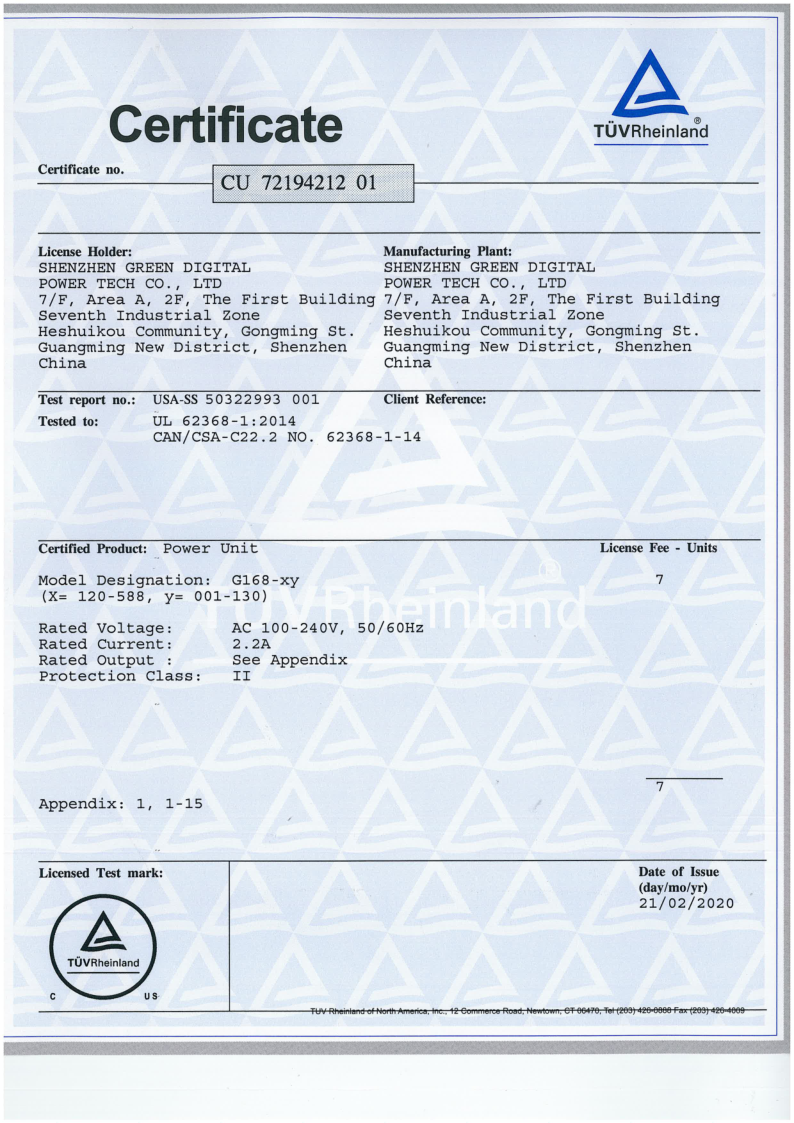

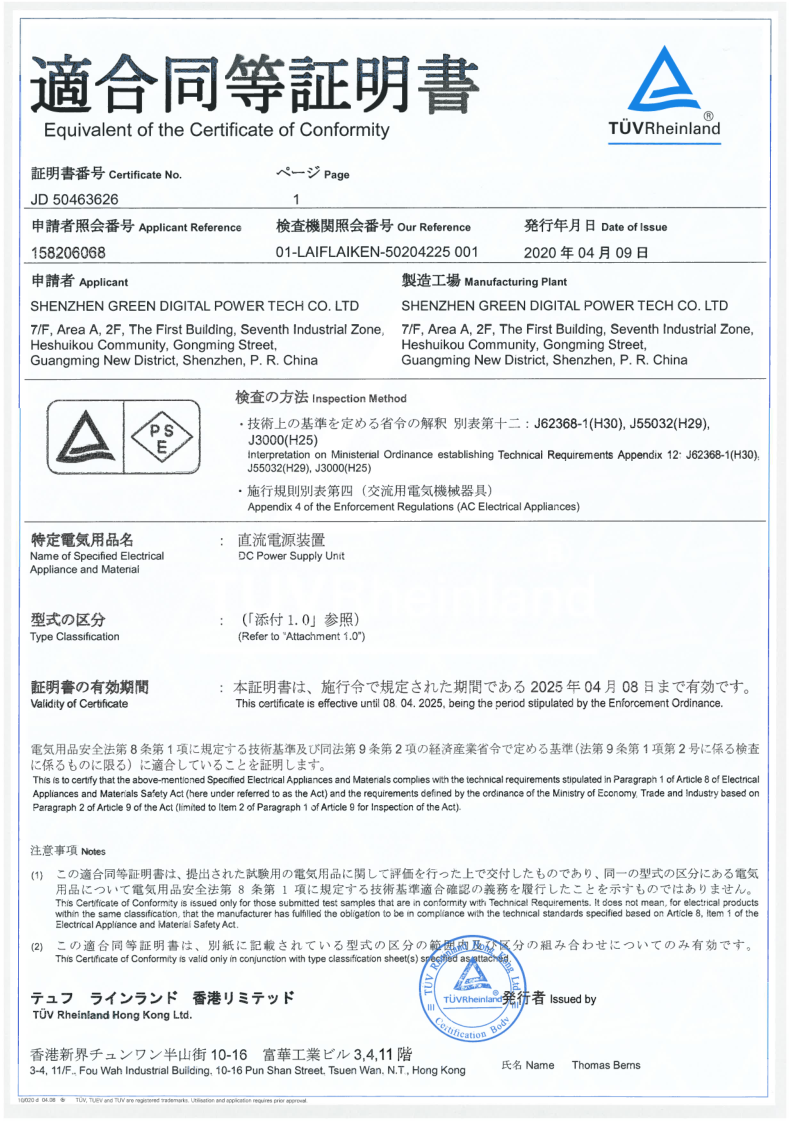

Safety Certifications (parts only)
