85W GaN fast charger

85W GaN Charger for 12V 24V 36V 48V Li-Ion, LiFePO4 and Pb-Acid battery type

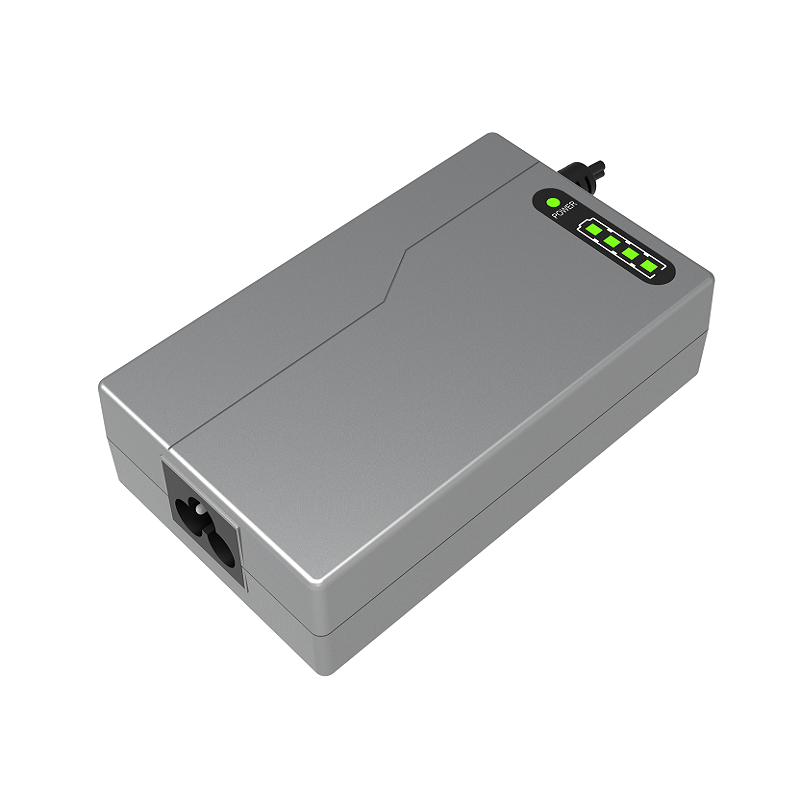

85W GaN fast charger

GaN085-xxxyyy battery charger is suitable for 12V~ 48V lithium ion, LiFEPO4 and AGM/VRLA batteries, with outputs of 16.8V5A, 21V4A, 28.8V2.8A, 29.4V2.8A, 42V2A, 57.6V1.5A, 58.8V1.5A

Specifications

Rated input: 100~240V 50/60Hz

Rated output: 14.4V~58.8V 85W, see the attached table for details

Efficiency: >92%

Suitable batteries: 12~48V Lead-acid batteries, Li-ion batteries, LiFePO4 batteries

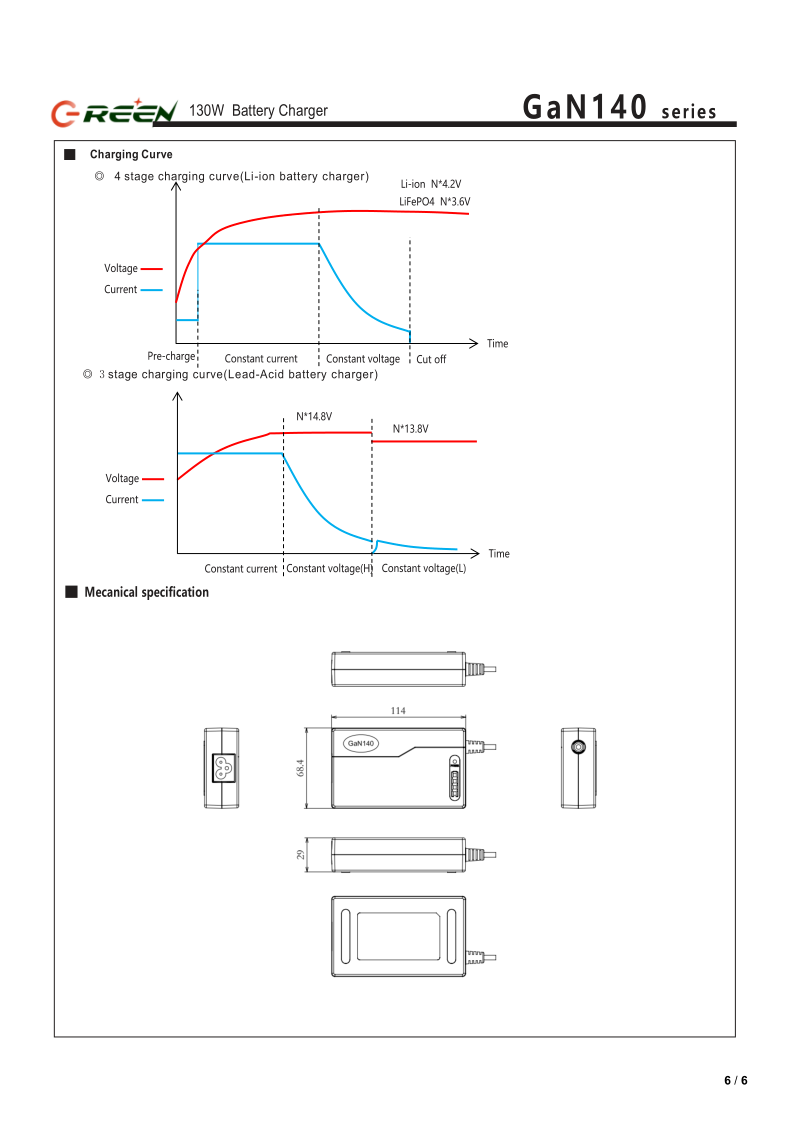

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)

Output protection:  overcurrent, overvoltage, short circuit, reverse connection protection

Safety certification: ETL, CE, FCC

Dimensions Weight: 114 x 68 x 29mm/220g


Product features:

  • GaN Based Power Supplies with Enhanced Digital Control, slim szie and hing effiency.

  • Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.

  • Suitable for 12V ~ 48V  Li-Ion / LiFePO4, Pb-Acid (SLA, VRLA, AGM, GEL).

  • Four segment green LEDs to indicate battery SOC (capacity level) during charging process

  • Multiple protections for overcurrent, overvoltage, and short circuit error.

  • Safety certifications,  CCC, ETL, FCC, PSE, CE




Detailed technical indicators:

Rated input: 100~240V

Rated output: 14.4V~58.8V  85W, see the attached table for output voltage and current of each model

Suitable batteries: 12V~48V li-ion, LiFePO4, lead-acid (VRLA, AGM, GEL) batteries

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)

Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc

Power efficiency: 94% @ 220V full load output

Back Drain current: less than 1.5 mA (current flowing from battery  to the charger when AC off)

Operating temperature: - 10~+40 ℃

Heat dissipation: natural cooling (without fan)

AC Input plug: AC inlet ICE-320-C6 type, AC cable / plug is optional part.

DC Output plug: standard DC terminal 5.5 * 2.5 * 12mm, output wire AWG18, length 1.5m

Safety certification: CE, ETL, FCC

Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000

Dimensions Weight: 114 x 68 x 28mm/350g


P/N of all GaN085-xxxyyy

Models for Li-Ion battery charger:

P/NCharge VoltageCharge CurrentCut-off currentSuitable battery
GaN085-16805016.8V +-1%5A +-7%0.5A +-0.1A4S Li-ion 5~50Ah
GaN085-25203025.2V +-1%3A +-7%0.3A +-0.05A6S Li-ion 3~30Ah
GaN085-29402829.4V +-1%2.8A +-7%0.3A +-0.05A7S Li-ion 3~30Ah
GaN085-50401650.4V +-1%1.6A +-7%0.15A +-0.03A12S Li-ion 2~15Ah
GaN085-58801558.8V +-1%1.5A +-7%0.15A +-0.03A14S Li-ion 2~15Ah


Models for LiFePO4 battery charger:

P/NCharge VoltageCharge CurrentCut-off currentSuitable battery
GaN085-14406014.4V +-1%6.0A +-7%0.6A +-0.1A4S LiFePO4 6~60Ah
GaN085-21604021.6V +-1%4.0A +-7%0.4A +-0.1A6S LiFePO4 4~40Ah
GaN085-28802828.8V +-1%2.8A +-7%0.3A +-0.06A8S LiFePO4 3~28Ah
GaN085-57601657.6V +-1%1.6A +-7%0.2A +-0.05A16S LiFePO4 2~16Ah


Models for Pb-Acid battery charger

P/NCharge VoltageCharge CurrentFloating voltageSuitable battery
GaN085-138060
14.5V +-1%6.0A +-7%13.8V +-1%12V Pb-Acid 24~ 60Ah
GaN085-27602829.0V +-1%2.8A +-7%27.6V +-1%24V Pb-Acid 10~28Ah
GaN085-414020
43.5V +-1%2.0A +-7%13.8V +-1%36V Pb-Acid 8~ 20Ah
GaN085-54001658.0V +-1%1.6A +-7%27.6V +-1%48V Pb-Acid 6~16Ah



Specification:
