G600-xy 600W battery charger

600W Battery charger 12V ~ 60V Li-Ion, LiFePO4 and Pb-Acid battery type

G600-xy 600W battery charger

G600 is a 600 W AC/DC 12V~60V battery charger with 4 and 3 stage charging curve In addition to theembedded pre-defined charging curves,the default curve is programmable and thus able to accommodate di...

Specifications

Rated input: 100~240V 50/60Hz

High Power Factor: > 0.98

Rated output: 12V~75V 600W, see the attached table for details

High effiency: 95%@220V input, full load output

Suitable batteries: Lead-acid batteries, Li-ion batteries, LiFePO4 batteries

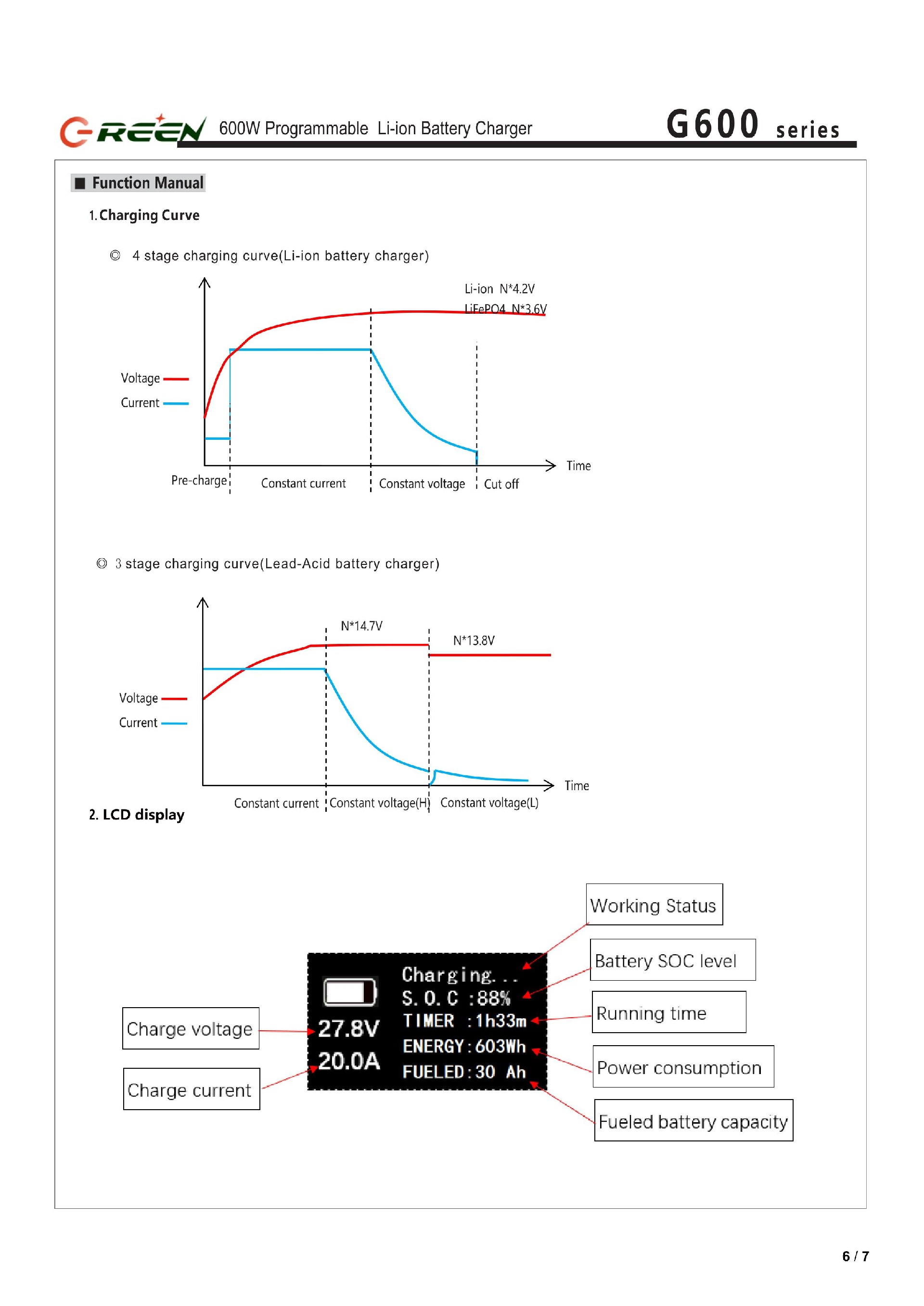

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: LCD shows voltage, current,capacity, and preset voltage and current

Output protection:  overcurrent, overvoltage, short circuit, reverse connection protection

Safety certification: cTUVus, CE, CB

Dimensions Weight: 240x 117 x 60mm/1500g


Product features:

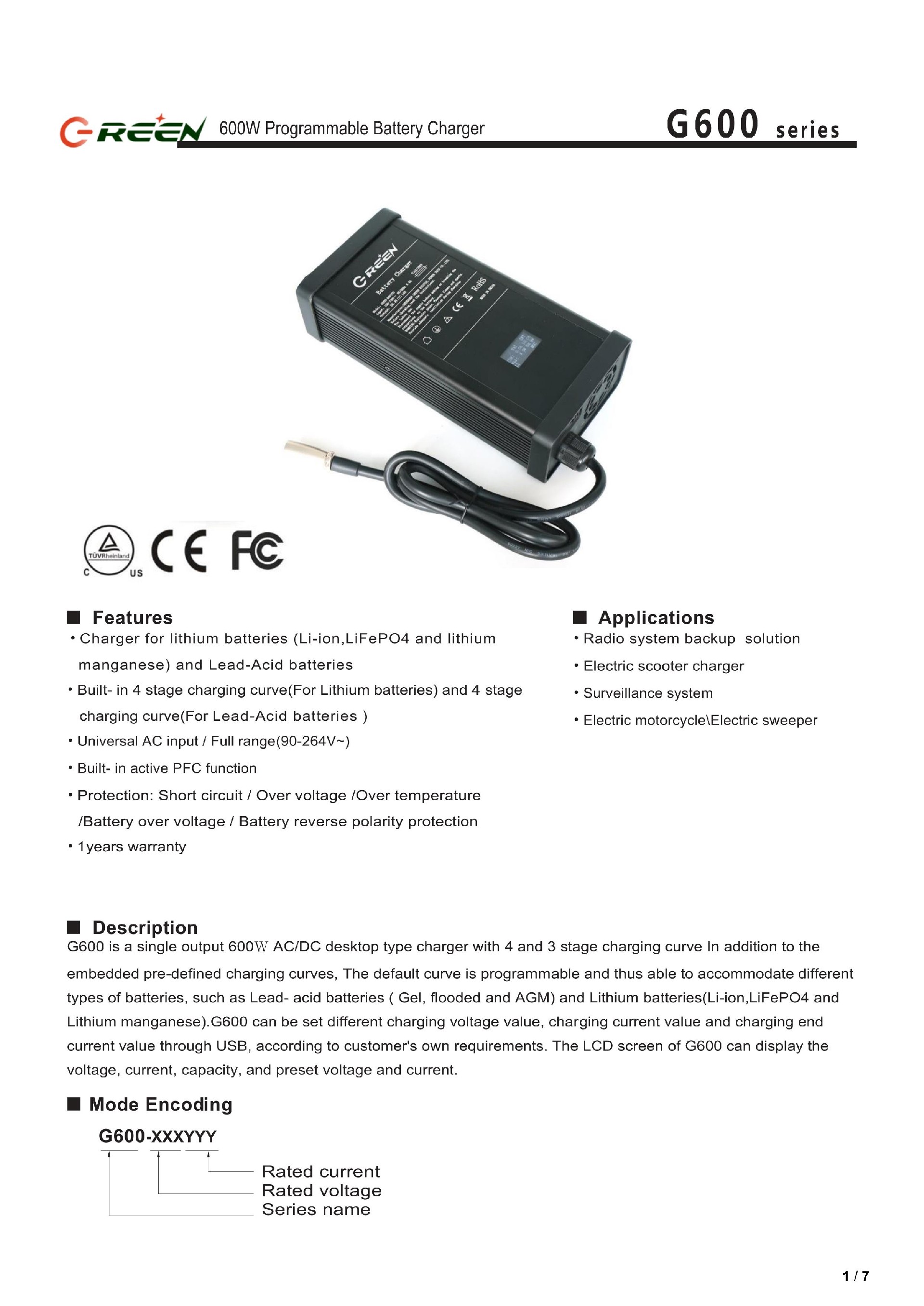

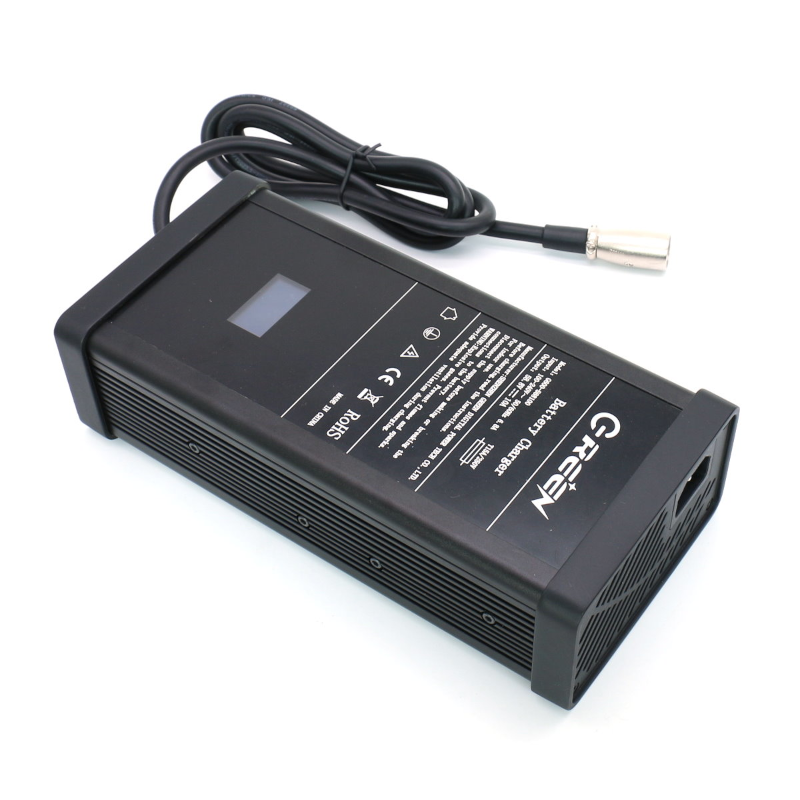

G600 is a single output 600 W AC/DC desktop type charger with 4 and 3 stage charging curve In addition to the embedded pre-defined charging curves,the default curve is programmable and thus able to accommodate different types of batteries,such as Lead- acid batteries ( gel,f looded and AGM) and Lithium batteries(Li-ion,LiFePO4 and Lithium manganese). G600 can be set different charging voltage value, charging current value and charging end current value through USB, according to customer's own requirements. The LCD screen of G600 can display the voltage, current,capacity, and preset voltage and current.

  • Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.

  • 600W output power, 95% high power effiency, and 0.98 power factor for AC power line

  • Suitable for 4 to 20 series Li-Ion / LiFePO4 batteries,  12V~60V Pb-Acid (SLA, VRLA, AGM, GEL).

  • Multiple protections for overcurrent, overvoltage, and short circuit error.

  • LCD shows voltage, current,capacity, and preset voltage and current

  • Safety certifications,  CCC, cTUVus, FCC, PSE, CE



Detailed technical indicators:

Rated input: 100~240V

Rated output: 12V~75V 600W, see the attached table for output voltage and current of each model

Suitable batteries: 12V~60V li-ion, LiFePO4 battery,  12V~60V lead-acid (VRLA, AGM, GEL) batteries

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: LCD shows voltage, current,capacity, and preset voltage and current

Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc

Power efficiency: 95% @ 220V full load output

Back Drain current: less than 1.5 mA (current flowing from battery  to the charger when AC off)

Operating temperature: - 10~+40 ℃

Heat dissipation: natural cooling (without fan)

AC Input plug: AC inlet ICE-320-C14 type, AC cable / plug is optional part.

DC Output plug: standard XT-60/90 plug(20A/40A Max), output wire AWG16/14, length 1.5m

Safety certification: CE, cTUVus, CB

Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000

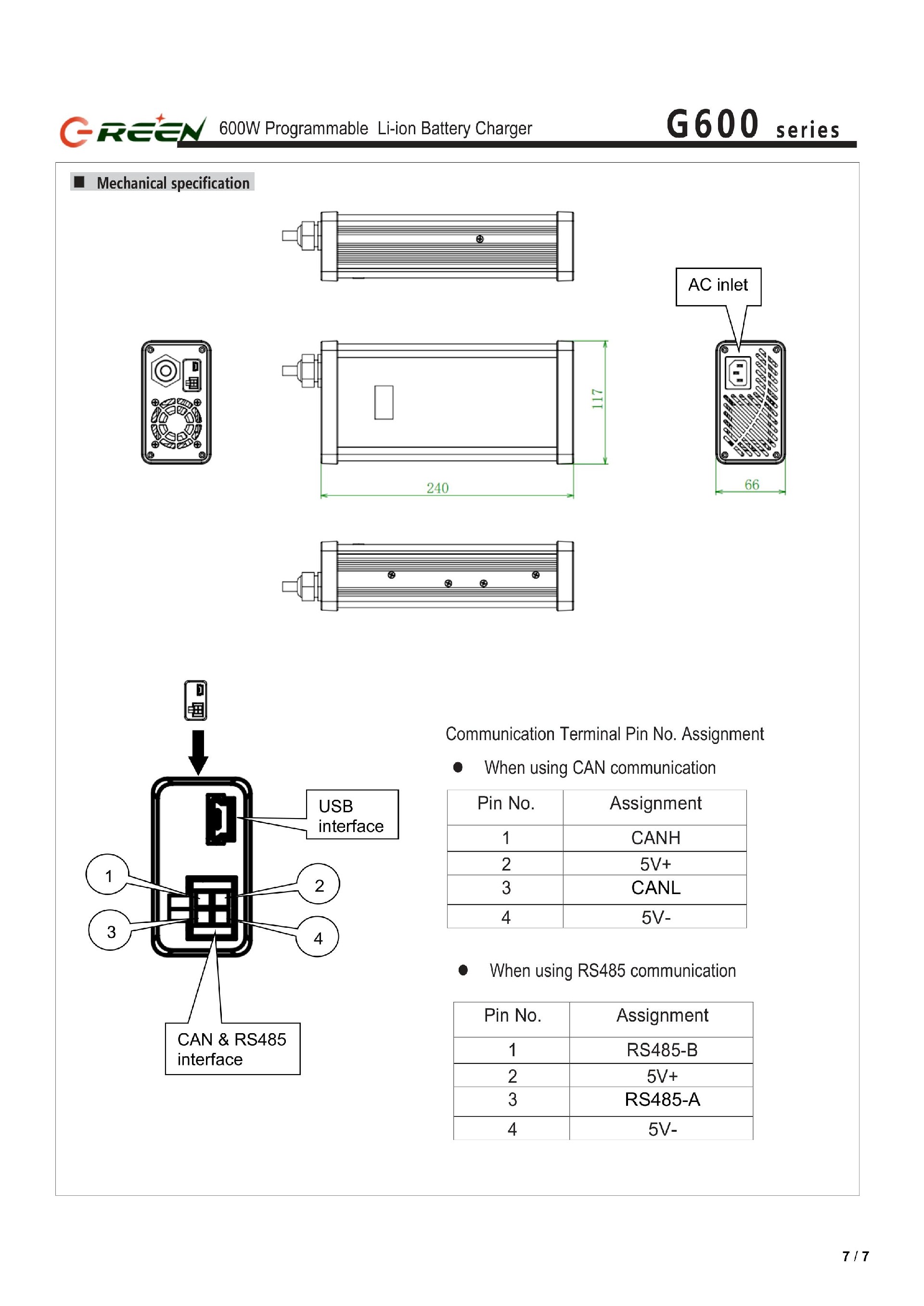

Dimensions Weight: 240x 117 x 60mm/1500g

P/N of all G600-xy

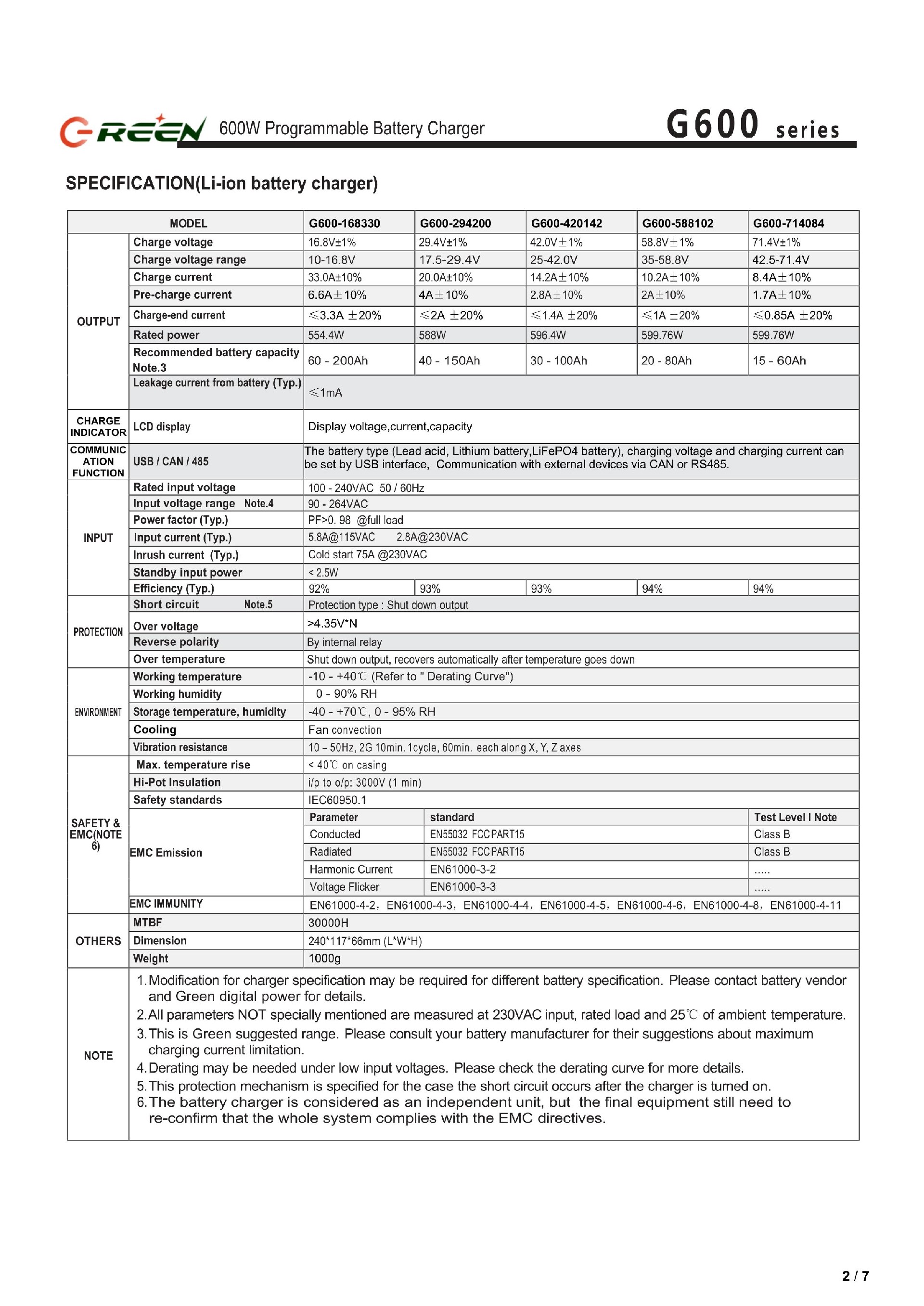

Models for Li-Ion battery charger:

P/NCharge VoltageCharge CurrentCut-off currentSuitable battery
G600-16833016.8V +-1%33A +-7%3.3A +-0.3A4S LI-ION 33~330Ah
G600-29420029.4V +-1%20A +-7%2.0A +-0.2A7S LI-ION 20~200Ah
G600-42014242.0V +-1%14A +-7%1.4A +-0.15A10S LI-ION 14~140Ah
G600-58810258.8V +-1%10A +-7%1.0A +-0.1A14S LI-ION 10~100Ah
G600-71408471.4V +-1%8.4A +-7%0.8A +-0.1A17S LI-ION 5~50Ah

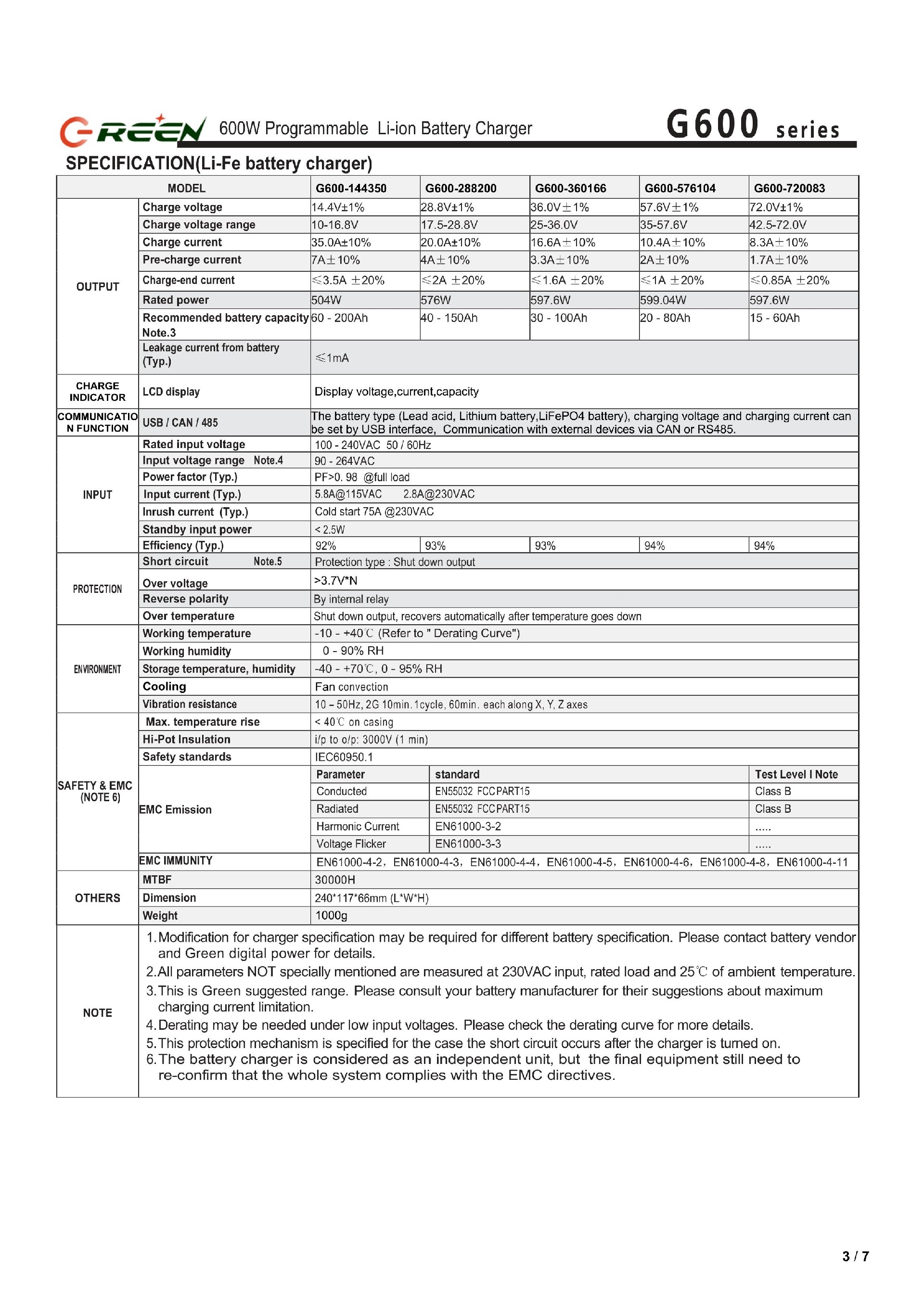

Models for LiFePO4 battery charger:

P/NCharge VoltageCharge CurrentCut-off currentSuitable battery
G600-14435014.4V +-1%35A +-7%3.5A +-0.35A4S LIFEPO4, 18~180Ah
G600-28820028.8V +-1%20A +-7%2.0A +-0.2A8S LIFEPO4, 20~200Ah
G600-43213843.2V +-1%13.8A +-7%1.4A +-0.15A12S LIFEPO4, 17~170Ah
G600-57610457.6V +-1%10.4A +-7%1.0A +-0.1A16S LIFEPO4, 10~100Ah
G600-72008372.0V +-1%8.3A +-7%0.8A +-0.1A20S LIFEPO4, 8~80Ah

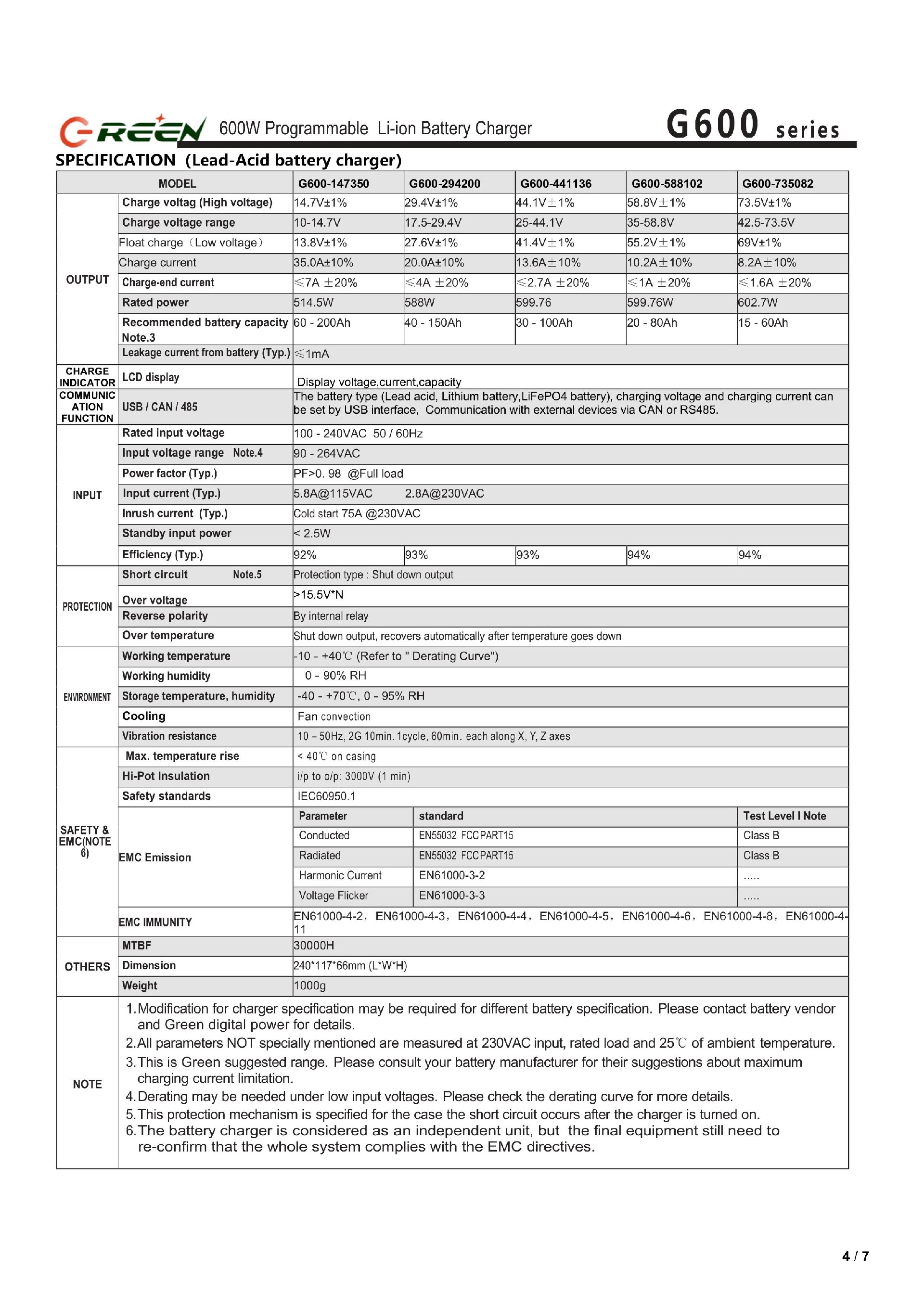

Models for Pb-Acid (VRLA, AGM, GEL, SLA) battery charger

P/NCharge VoltageCharge CurrentFloating chargeSuitable battery
G600-147350
14.7V +-1%35A +-7%13.8V +-1%12V  140~ 400Ah
G600-29620029.6V +-1%20A +-7%27.6V +-1%24V  80~240Ah
G600-588102
58.8V +-1%10.2A +-7%55.2V +-1%48V  40~ 120Ah
G600-73508173.5V +-1%8.1A +-7%69.0V +-1%60V  32~100Ah

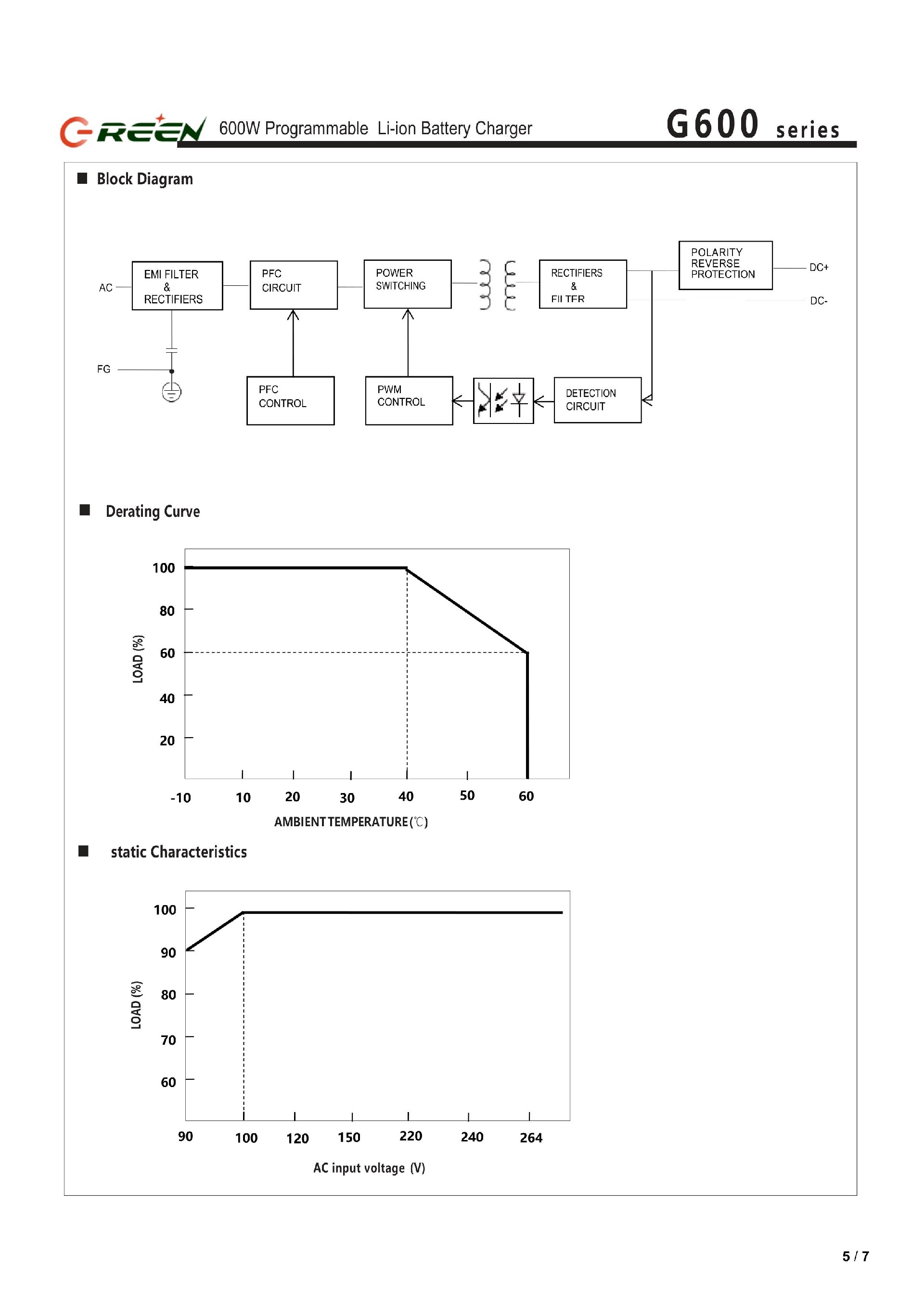

Details specification:: (

G600-charger-spec.pdf)

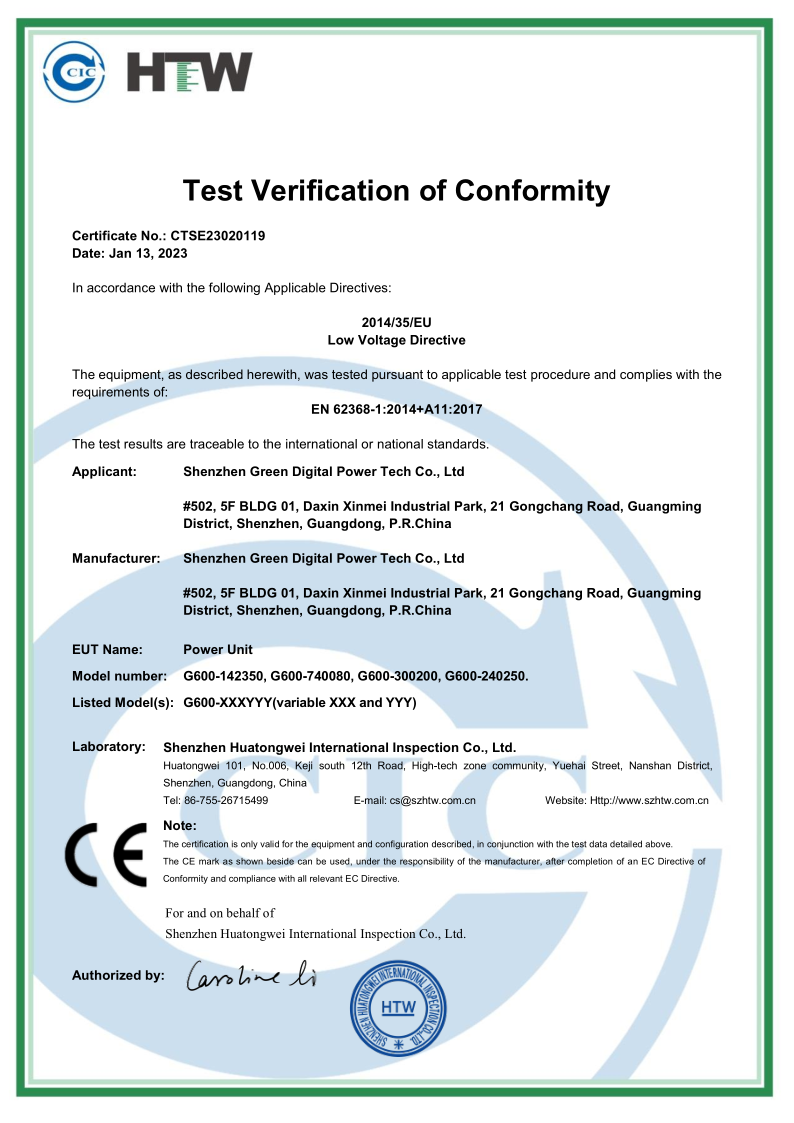

Safety Certifications (parts only)
