G1200-xy 1200W battery charger

1200W Battery charger 24V ~ 72V Li-Ion, LiFePO4 and Pb-Acid battery type

G1200-xy 1200W battery charger

G1200 is a 1200 W AC/DC 24V~72V battery charger with 4 and 3 stage charging curve In addition to theembedded pre-defined charging curves,the default curve is programmable and thus able to accommodate ...

Specifications

Rated input: 100~240V 50/60Hz

High Power Factor: > 0.98

Rated output: 24V~88V 600W, see the attached table for details

High effiency: 95%@220V input, full load output

Suitable batteries: Lead-acid batteries, Li-ion batteries, LiFePO4 batteries

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: LCD shows voltage, current,capacity, and preset voltage and current

Output protection:  overcurrent, overvoltage, short circuit, reverse connection protection

Communication: RS485 / USB port for user programming

Safety certification: cTUVus, CE, CB

Dimensions Weight: 265x 134 x 60mm/2300g


Product features:

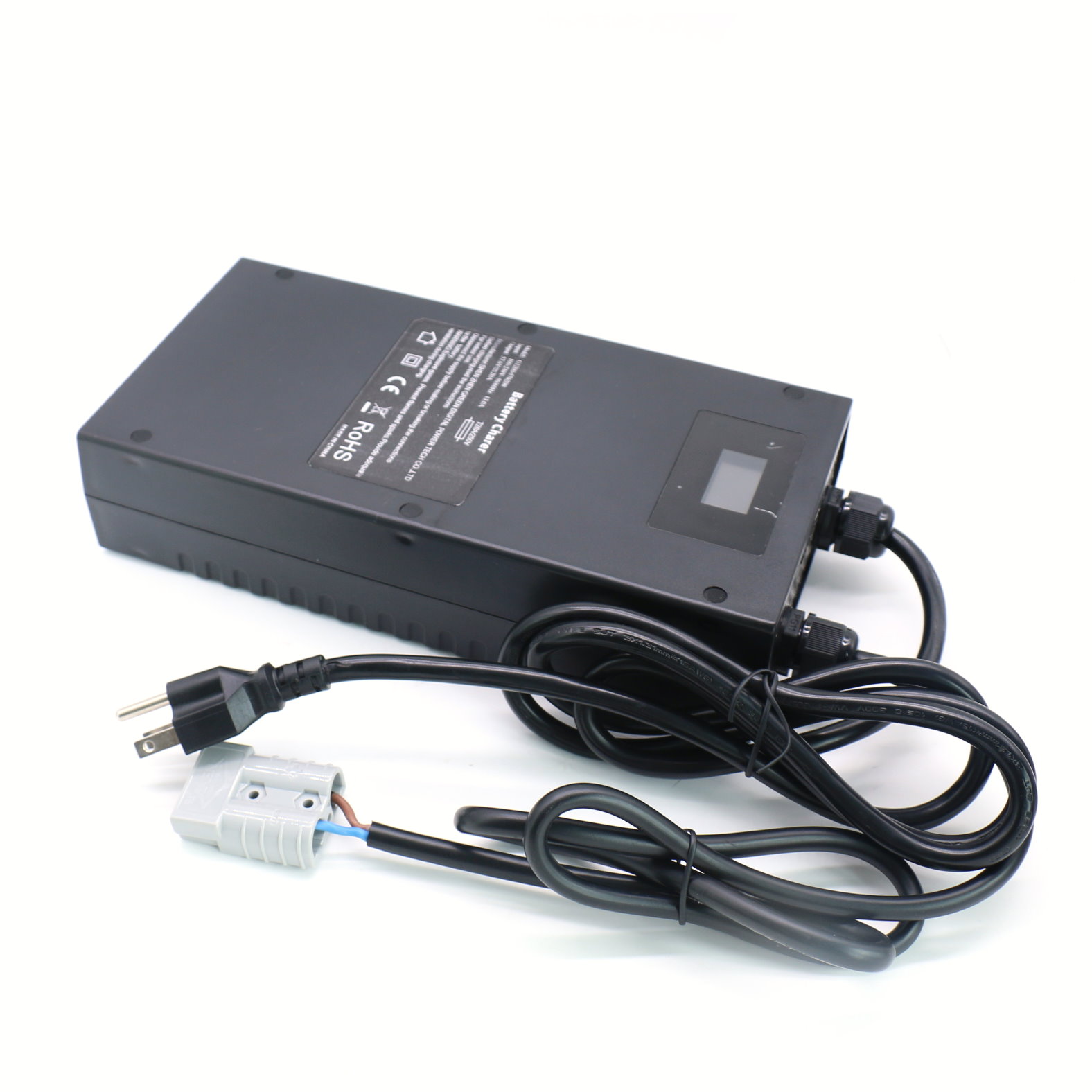

G1200 is a single output 1200 W AC/DC desktop type charger with 4 and 3 stage charging curve In addition to the embedded pre-defined charging curves,the default curve is programmable and thus able to accommodate different types of batteries,such as Lead- acid batteries ( SLA, VRLA, GEL, AGM) and Lithium batteries(Li-ion,LiFePO4 and Lithium manganese). G1200 can be set different charging voltage value, charging current value and charging end current value through USB, according to customer's own requirements. The LCD screen of G1200 can display the voltage, current,capacity, and preset voltage and current.

  • Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.

  • 1200W output power, 95% high power effiency, and 0.98 power factor for AC power line

  • Suitable for 4 to 20 series Li-Ion / LiFePO4 batteries,  12V~60V Pb-Acid (SLA, VRLA, AGM, GEL).

  • Multiple protections for overcurrent, overvoltage, and short circuit error.

  • LCD shows voltage, current,capacity, and preset voltage and current

  • Safety certifications,  cTUVus, CB, CE



Detailed technical indicators:

Rated input: 100~240V

Rated output: 12V~75V 1200W, see the attached table for output voltage and current of each model

Suitable batteries: 24V~72V li-ion, LiFePO4 battery,  24V~72V lead-acid (VRLA, AGM, GEL) batteries

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;

"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.

Charging indication: LCD shows voltage, current,capacity, and preset voltage and current

Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc

Power efficiency: 95% @ 220V full load output

Back Drain current: less than 1.5 mA (current flowing from battery  to the charger when AC off)

Operating temperature: - 10~+40 ℃

Heat dissipation: fan cooling

AC Input plug: AC inlet ICE-320-C14 type, AC cable / plug is optional part.

DC Output plug: standard XT-60/90 plug(20A/40A Max), output wire AWG16/14, length 1.5m

Safety certification: CE, cTUVus, CB

Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000

Dimensions Weight: 265x 134 x 60mm/2300g

P/N of all G1200-xy

Models for Li-Ion battery charger:

P/N Charge Voltage Charge Current Cut-off current Suitable battery
G1200-294360 29.4V +-1% 36A +-7% 3.6A +-0.4A 7S LI-ION 36~360Ah
G1200-420280 42.0V +-1% 28A +-7% 2.8A +-0.2A 10S LI-ION 28~280Ah
G1200-588200 58.8V +-1% 20A +-7% 2.0A +-0.2A 14S LI-ION 20~200Ah
G1200-714160 71.4V +-1% 16A +-7% 1.6A +-0.15A 17S LI-ION 16~160Ah
G1200-840140 84.0V +-1% 14A +-7% 1.4A +-0.15A 20S LI-ION 14~140Ah


Models for LiFePO4 battery charger:

P/N Charge Voltage Charge Current Cut-off current Suitable battery
G1200-288360 28.8V +-1% 36A +-7% 3.6A +-0.4A 8S LIFEPO4, 36~360Ah
G1200-360300 36.0V +-1% 30A +-7% 3.0A +-0.3A 10S LIFEPO4, 30~300Ah
G1200-432275 43.2V +-1% 27.5A +-7% 2.8A +-0.3A 12S LIFEPO4, 30~300Ah
G1200-576200 57.6V +-1% 20.0A +-7% 2.0A +-0.2A 16S LIFEPO4, 20~200Ah
G1200-720160 72.0V +-1% 16.0A +-7% 1.6A +-0.2A 20S LIFEPO4, 16~160Ah
G1200-864140 86.4V +-1% 14.0A +-7% 1.4A +-0.2A 24S LIFEPO4, 14~140Ah


Models for Pb-Acid (VRLA, AGM, GEL, SLA) battery charger

P/N Charge Voltage Charge Current Floating voltage Suitable battery
G1200-294360
29.4V +-1% 36A +-7% 27.6V +-1% 24V  150~ 450Ah
G1200-441270 44.1V +-1% 27A +-7% 41.4V +-1% 36V  100~300Ah
G1200-588200
58.8V +-1% 20.0A +-7% 55.2V +-1% 48V  80~ 240Ah
G1200-735160 73.5V +-1% 16.0A +-7% 69.0V +-1% 60V  70~200Ah
G1200-882130 88.2V +-1% 13.0A +-7% 82.8V +-1% 72V  50~150Ah



Details specification:
comming soon


Safety Certifications (parts only)

comming soon
