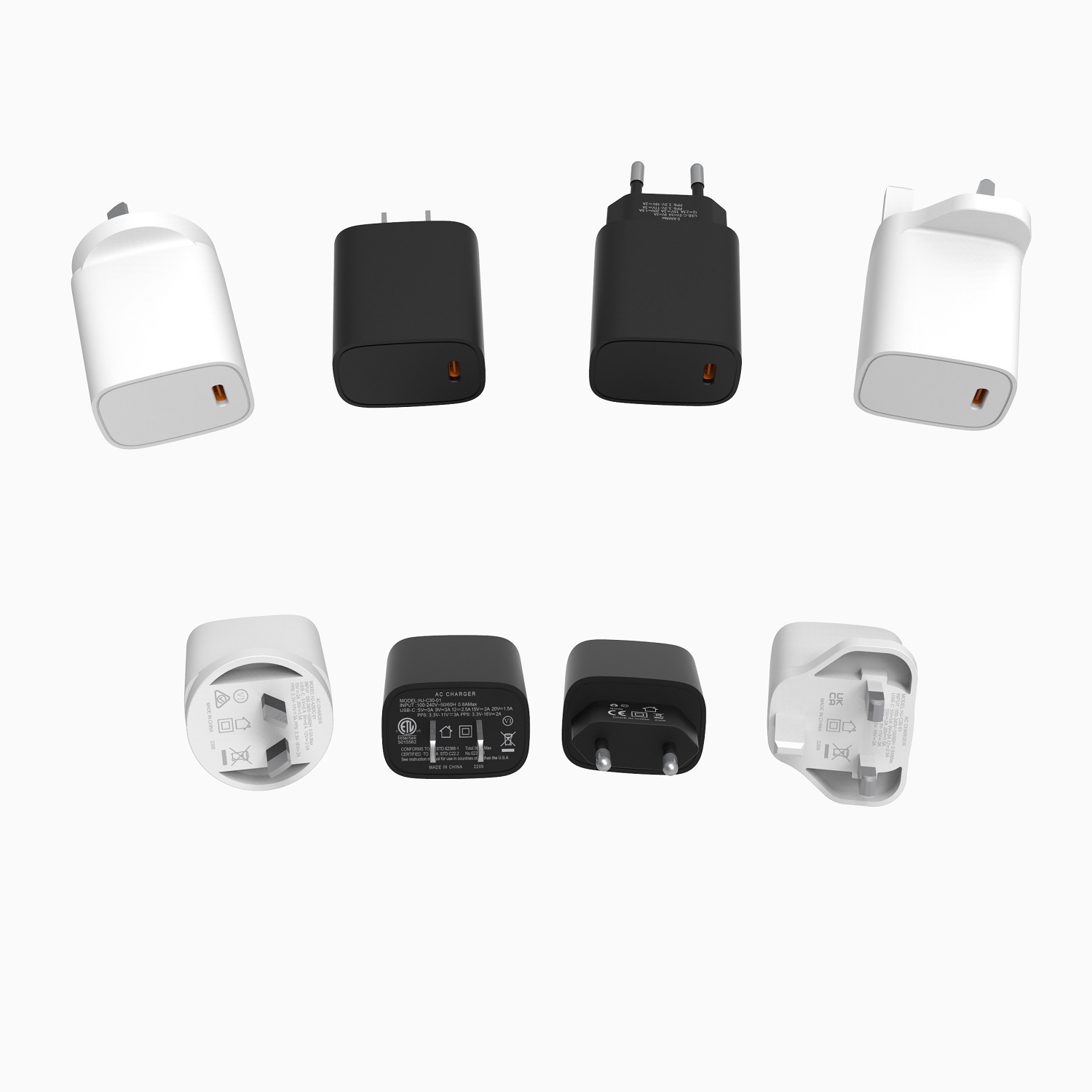

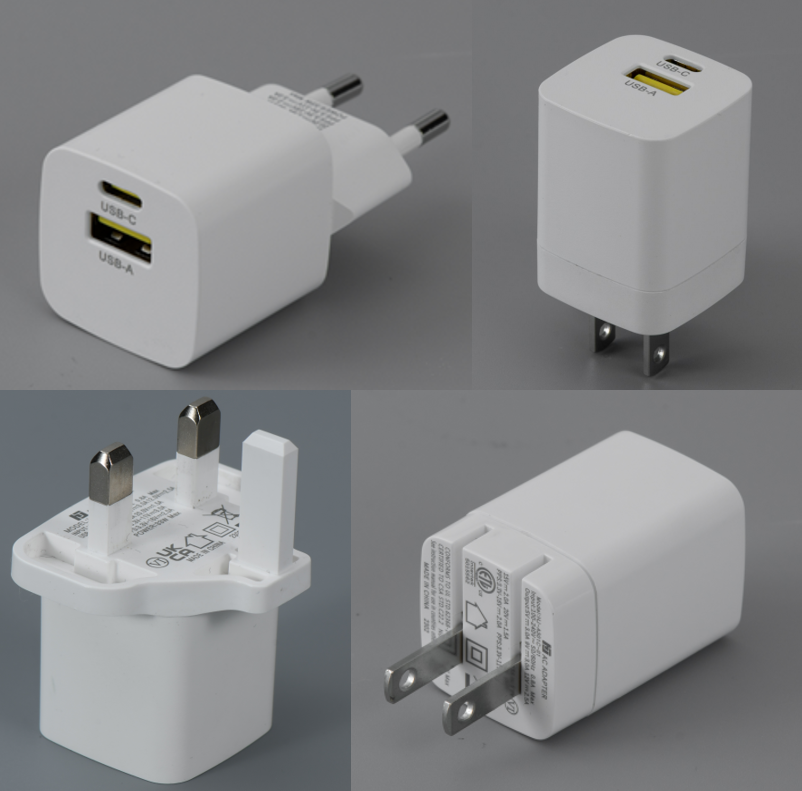

30W PD Power Adapter

30W PD power adapter, QC charger

30W PD Power Adapter

30W Dual Ports Fast Charging:USB-C port with the Power Delivery 3.0 can charge your iPhone 13/12 up to 50% capacity in just 25 minutes with the original fast cable.Also can reach up to 3X faster than ...

Specifications

Input range: AC90~264V Frequency 47~63Hz

Output : PD : 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A, 30W max.

               QC:  5V3A, 9V2A, 12V1.5A

               PPS: 3.3V~11V 3.0A,  3.3V~16V 2.0A, 30W max.

Connector : 1 USB-C port + 1 USB-A port

Protocol: PD2.0, PD3.0, QC2.0, QC3.0, QC3.0+, Apple 2.4, AFC, PPS

                CHARGE TURBO, FCP/SCP/HVSCP, BC1.2

For Devices: Smartphones, Headphones, Tablets, Smartwatches

Operating temperature: - 10 ℃~+40 ℃

Cooling method: natural cooling, no fan

Comply with energy efficiency: ERP/CEC-VI standards

Mean time between failures: 30000 hours

Dimension and weight: 31x31x40mm/80g

Safety certification: CE , ETL


30W Dual Ports Fast Charging:USB-C port with the Power Delivery 3.0 can charge your iPhone 13/12 up to 50% capacity in just 25 minutes with the original fast cable.Also can reach up to 3X faster than with an original 5W Charger.NOTE: supports Programmable Power Supply (PPS)25W for compatibility with Samsung Super Fast Charging 25W.USB-A port Support fast charger technology (qc3.0/qc2.0/qc1.0), and all standard USB-powered devices, including Android Phone, perfect for 10W 15W QI Wireless Charger




Specification:


Input range: AC90~264V Frequency 47~63Hz

Output : PD : 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A, 30W max.

               QC:  5V3A, 9V2A, 12V1.5A

               PPS: 3.3V~11V 3.0A,  3.3V~16V 2.0A, 30W max.

Connector : 1 USB-C port + 1 USB-A port

Protocol: PD2.0, PD3.0, QC2.0, QC3.0, QC3.0+, Apple 2.4, AFC, PPS

                CHARGE TURBO, FCP/SCP/HVSCP, BC1.2

For Devices: Smartphones, Headphones, Tablets, Smartwatches

Operating temperature: - 10 ℃~+40 ℃

Cooling method: natural cooling, no fan

Comply with energy efficiency: ERP/CEC-VI standards

Mean time between failures: 30000 hours

Dimension and weight: 31x31x40mm/80g

Safety certification: CE , ETL

Suitable Devices  list (parts):

[For iPhone] iPhone 14 Pro/14 Plus/14 Pro Max/iPhone 13/ 13 Pro/ 13 Pro Max

iPhone 12/ 12 Pro/ 12 Pro Max / iPhone 11/ 11 Pro/ 11 Pro Max / iPhone SE

iPhone XS / XS Max/ XR/ X/ iPhone 8 Plus/ 8 Fast Charging Block, etc.

[For Sumsung] Galaxy S22 ultra/ S22/ S21/ S20/ S10/ S9/ Sumsung Note 20/ 10

[For Tablets] iPad Pro/ iPad Air/ iPad mini/ iPad charger block, etc.

[For Andriods] HUAWEI/ LG/ Google Pixel 6 / 5 / 4 / 4a / 3. Airpods/AirPods

Airpods Pro/Apple Watch 7/6/ SE/3 etc.
