Specifications
Rating Input: AC100~240V Frequency 50/60Hz
Rating Output : DC12~60V 240W, see below tables for details
High effiency: 96.7%@220V input, full load output
Output protection: overvoltage, overcurrent, temperature, and short circuit
Operating temperature: - 10 ℃~+40 ℃, working humidity<+90%
Storage temperature: - 40~+70 ℃, storage humidity 0% - 95%
Cooling method: natural cooling, no fan
Comply with energy efficiency: ERP/CEC-VI standards
Mean time between failures: 30000 hours

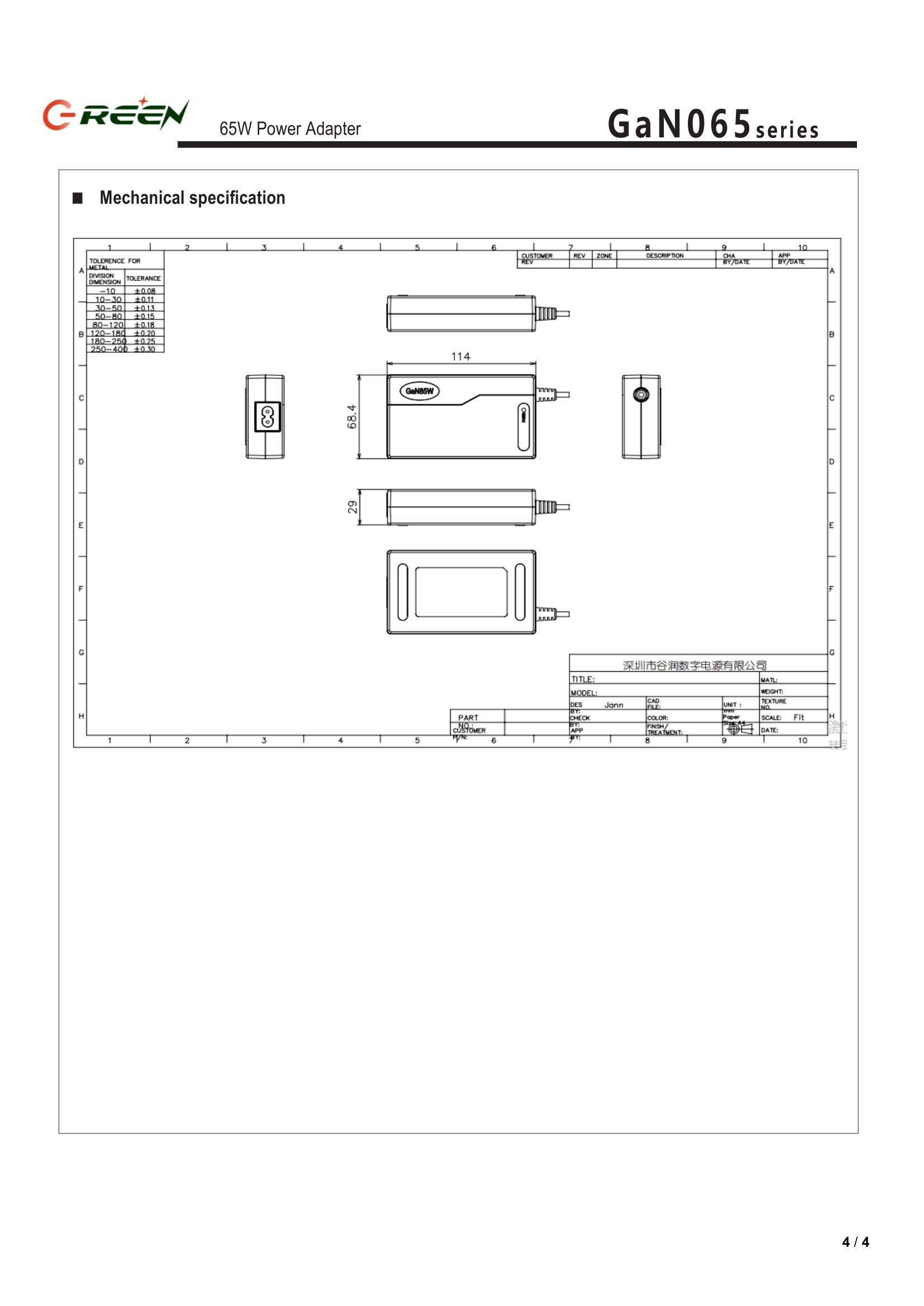

Dimension and weight: 114x68x29mm/300g
Safety certification: CB CE FCC cTUVus
GaN240-xy 240W power adapter is a new generation GaN technology high-performance acdc power supply. With GaN PFC + GaN LLC + SR technology, GaN240's power efficiency can reach 96.7% at AC 220V input. Output power is 240W, output voltage is 12V~60V, defined in below P/N parameters table. Power factor is as high as 0.98. The size of this 240W power supply is very small, only 5*43*28mm, 1/3 size of traditional acdc adapter. It also features low standby power consumption and low leakage current, making it a very environmentally friendly power adapter.
It has high-precision voltage adjustment and line voltage adjustment, which can ensure the accuracy and stability of the output voltage and current. The startup time is only 300ms, the rise time is 15ms, the hold time is 15ms, and the ripple voltage is 1.5% or 100mV , all of which meet the requirements of various application scenarios.
This power adapter also has a variety of protection mechanisms, including overload protection, overvoltage protection, short circuit protection, and overtemperature protection. These protection mechanisms can effectively avoid the failure and damage of the power adapter, thereby extending its service life.
Operate normally within the operating temperature range of - 10~+40 ℃, withstand vibration resistance of 5MM/50HZ/600S, and impact resistance of 1m height. It also has excellent performance of anti-static grade of 8.0KV and isolation and withstand voltage of 3000V.
Finally, this power adapter has passed various safety certifications such as CB, CE, FCC, cTUVus to ensure its safety and reliability. The average time between failures is 30000H, which can meet the requirements of various application scenarios.
GaN240-xxxxyyyy series products, "xxx" represents the output voltage, with a value range of 120 to 600, 120 representing 12.0V, and 188 representing 18.8V. "yyy" represents the output current, 080 means 8.0A.
Features:
Rating Input: AC100~240V Frequency 50/60Hz
Rating Output : DC12~60V 240W, see below tables for details
| Part Number (Models) | Output Voltage | Output Current |
| GaN240-120120 | 12.0V | 12.0A |
| GaN240-150120 | 15.0 V | 12.0A |
| GaN240-190120 | 19.0 V | 12.0A |
| GaN240-200120 | 20.0 V | 12.0A |
| GaN240-240080 | 24.0 V | 10.0A |
| GaN240-290080 | 29.0 V | 8.0A |
| GaN240-480060 | 48.0 V | 5.0A |
| GaN240-600040 | 60.0 V | 4.0A |
High Power Factor: > 0.98
High effiency: 96.7%@220V input, full load output
Output protection: overvoltage, overcurrent, temperature, and short circuit
Operating temperature: - 10 ℃~+40 ℃, working humidity<+90%
Storage temperature: - 40~+70 ℃, storage humidity 0% - 95%
Cooling method: natural cooling, no fan
Comply with energy efficiency: ERP/CEC-VI standards
Mean time between failures: 30000 hours
Dimension and weight: 114x68x29mm/300g
Safety certification: CB CE FCC cTUVus
Specifications:
