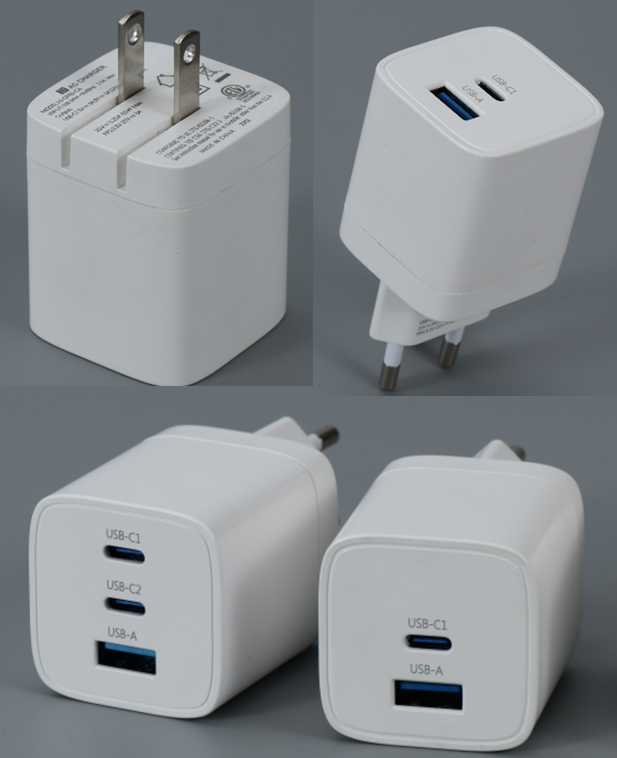

65W PD Power Adapter

65W PD power adapter, QC charger

65W PD Power Adapter

65W PD 3.0 GaN charger for fast Charging, total 65W output. Use one single usb c port charge MacBook Pro 15.4” from 0% to 100% in only 2 hours. This 65W GaN charger with the Gan II technology chip ins...

Specifications

Input range: AC90~264V Frequency 47~63Hz

Output : PD : 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, 65W max.

               QC:  5V3A, 9V2A, 12V1.5A

               PPS: 3.3V~21V 3.0A

Connector : 2 USB-C ports + 1 USB-A port

Protocol: PD2.0, PD3.0, QC2.0, QC3.0, QC3.0+, Apple 2.4, AFC, PPS

                CHARGE TURBO, FCP/SCP/HVSCP, BC1.2

For Devices: Smartphones, Headphones, Tablets, Smartwatches

Operating temperature: - 10 ℃~+40 ℃

Cooling method: natural cooling, no fan

Comply with energy efficiency: ERP/CEC-VI standards

Mean time between failures: 30000 hours

Dimension and weight:41x41x48mm/180g

Safety certification: CE , ETL


65W PD 3.0 GaN charger for fast Charging, total  65W output. Use one single usb c port charge  MacBook Pro 15.4” from 0% to 100% in only 2 hours. This 65W GaN charger with the Gan II technology chip inside, it has the latest UL STD (62368-1) safety standard, compatible with PPS protocol. And provides multi protections against over-current, over-voltage, over-heating and short-circuit.




Specification:


Input range: AC90~264V Frequency 47~63Hz

Output : PD : 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, 65W max.

               QC:  5V3A, 9V2A, 12V1.5A

               PPS: 3.3V~21V 3.0A

Connector : 2 USB-C ports + 1 USB-A port

Protocol: PD2.0, PD3.0, QC2.0, QC3.0, QC3.0+, Apple 2.4, AFC, PPS

                CHARGE TURBO, FCP/SCP/HVSCP, BC1.2

For Devices: Smartphones, Headphones, Tablets, Smartwatches

Operating temperature: - 10 ℃~+40 ℃

Cooling method: natural cooling, no fan

Comply with energy efficiency: ERP/CEC-VI standards

Mean time between failures: 30000 hours

Dimension and weight: 41x41x48mm/180g

Safety certification: CE , ETL

Suitable Devices  list (parts):

MacBook Pro 13" 2022 / MacBook Air 2022 / MacBook Air 2020/ MacBook Pro 13" 2017

MacBook Pro 13" 2020 / MacBook Pro 15" 2017/ MacBook 16" / MacBook 12" / MacBook Air 13"

MacBook Air 12", iPhone 14/14 Pro/14 Pro Max, iPhone 13/13 Mini/13 Pro/13 Pro Max,

iPhone 12/12 Mini/12 Pro/12 Pro Max, iPhone SE 3, iPhone 11/11 Pro / 11 Pro Max,

Samsung Galaxy S22 Ultra/S22+/ S22, S21 Ultra/S21+/ S21/ S20 Ultra/ S20+/ S20

S20 FE /S10/S10e/S10+/S9/S9+/S8/S8+ / Note21+/21/Note20+/20,

Google Pixel 6 / Pixel 5 / Pixel 4 / Pixel 4a / Pixel 3a,

iPad Pro 12.9"/11"/10.5"/9.7"; iPad Air 1/2/3/4 / iPad mini 1/2/3/4/5/6
