BG1 Battery fuel gauge module

BG1 Battery fuel gauge for Li-Ion & Pb-Acid battery

BG1 Battery fuel gauge module

Suitable for 3.6V~25.2V li-ion battery; 6V 12V 24V Pb-Acid battery. With 10-bit ADC MCU to measure battery voltage and power level. Using five segment LED indicator to display 10% ~ 100% battery power...

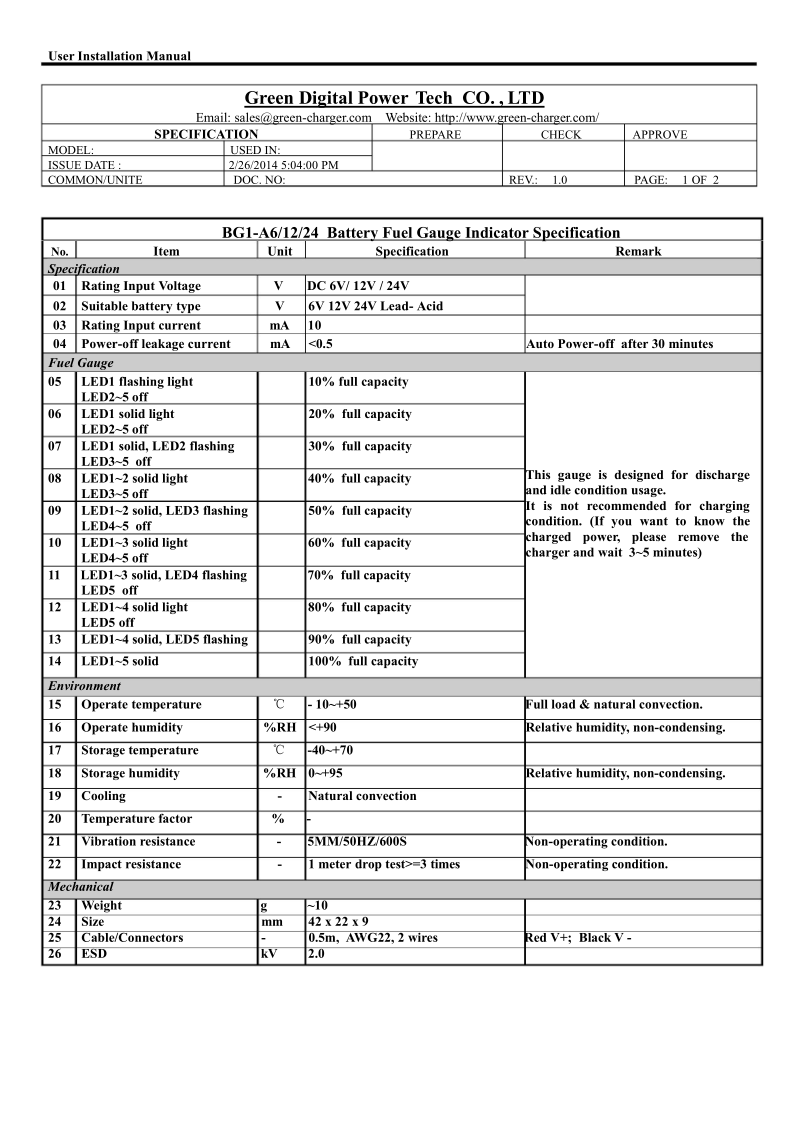

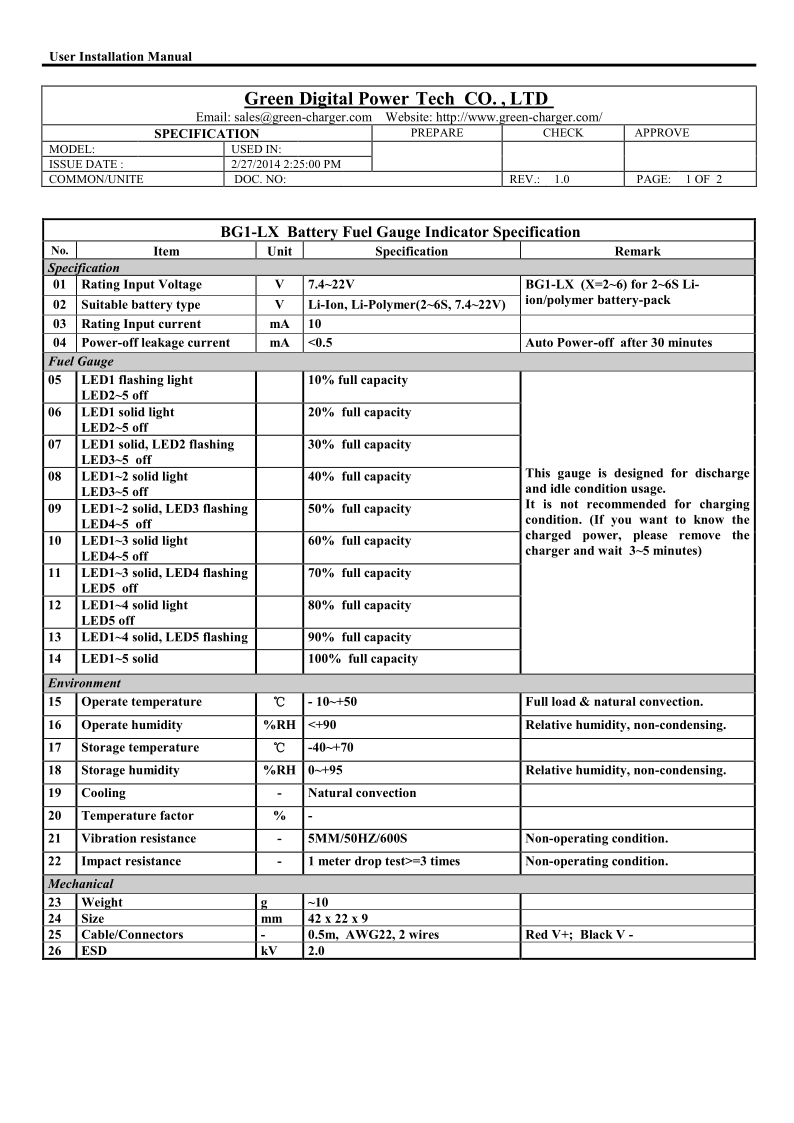

Specifications

Suitable battery: 3.6V~25.2V  li-ion battery or 6V 12V 24V Pb-Acid battery.

Measurement: 10-bit ADC MCU to measure battery voltage and power level.

Indicator: Five segment LED indicator, display 10% ~ 100% battery power level.

Consumption current: viewing state 10mA, standby state 0.5mA.

Power level tolerance: +- 10%.

Output protection: Short circuit & polarity reverse connection protection.

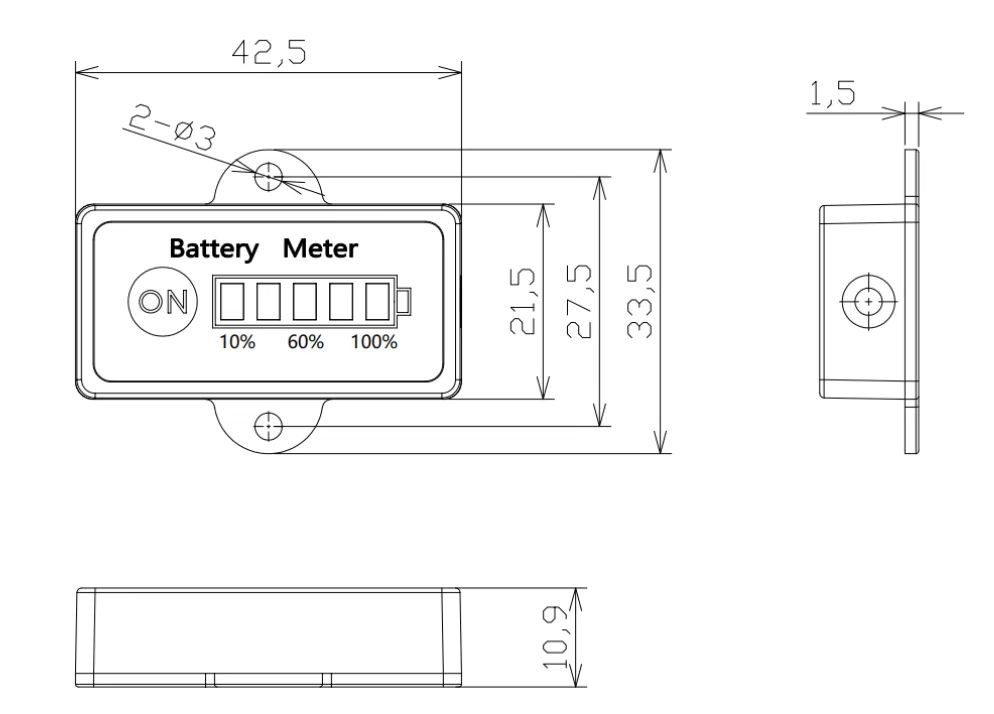

Dimensions & Weight: 42 x 22 x 11mm/10g.


Suitable battery: 3.6V~25.2V  li-ion battery or 6V 12V 24V Pb-Acid battery.

Measurement: 10-bit ADC MCU to measure battery voltage and power level.

Indicator: Five segment LED indicator, display 10% ~ 100% battery power level.

Consumption current: viewing state 10mA, standby state 0.5mA.

Power level tolerance: +- 10%.

Output protection: Short circuit & polarity reverse connection protection.

Dimensions & Weight: 42 x 22 x 11mm/10g.
