BM200 Battery analyzer & charger/discharger

BM200 is an intelligent instrument that integrates the four functions of battery testing(analyzing), charging, discharging and maintenance. Charging current is up to 30A and single cell voltage cover ...

Specifications

Input voltage: 100~240V 50HZ

Suitable batteries: Pb-Acid, Li-Ion, LiFePO4, NiMH, NiCD....

Analyzer: battery voltage, internal resistance, capacity, SOC, SOH, charging/discharge curves

Charging method:  smart charging process for different battery type.

Suitable capacity: 1Ah~300Ah

Voltage range:  BM200-05: 2V~5V;  BM200-32: 2V~32V

Charge current: BM200-05: 3~30A,  BM200-32: 1~10A

Discharge current: BM200-05: 0~20A,  BM200-32: 0~10A

Temperature compensation: Automatically compensating

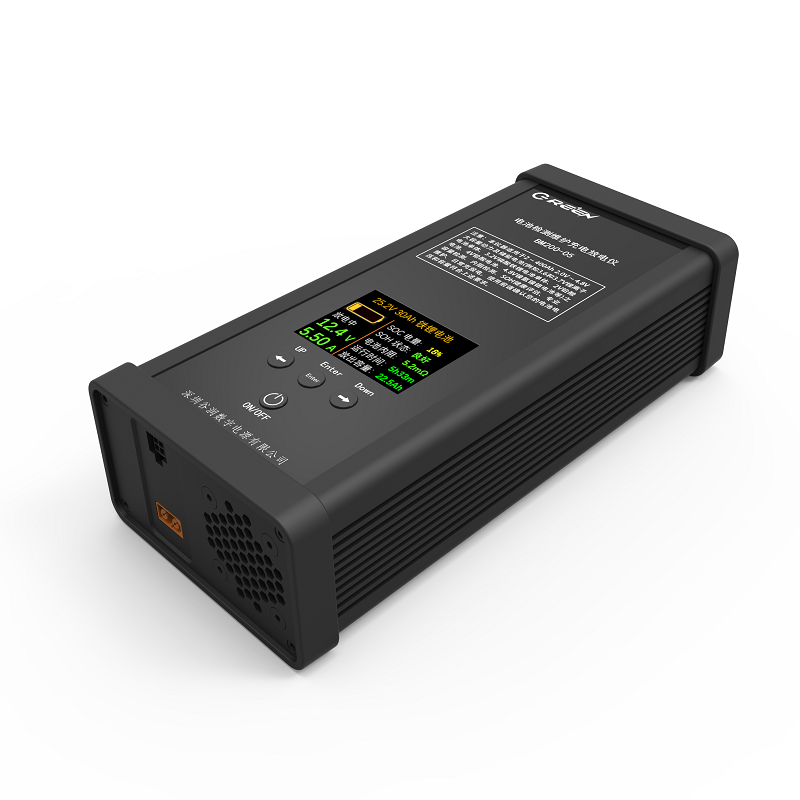

BM200 is an intelligent instrument that integrates the four functions of battery testing(analyzing), charging, discharging and maintenance. It is designed with a portable plastic shell, and with color TFT displayer and silicon touch keys.

The BM200 is a powerful assistant for electronic engineers. It can be used to perform performance testing, capacity testing, characteristic curve measurement, and activation and maintenance of long-term storage batteries for various commonly used rechargeable batteries.

BM200 is widely used for performance testing and routine maintenance of most rechargeable batteries in many portable electronics/electrical devices (such as smart phone, tablet PC, drone, e-bike, e-scooter, power tool, car …). Battery voltage range is 2V ~ 29V capacity range 1Ah~300Ah, and battery types cover Li-ion /LiFePO4 /Pb-Acid /NiMH.

Input of BM200 is AC100~240V, universal global voltage range. The adjustable range of output constant current charging current is 3A~30A / 1A~10A ; The charging limit voltage and the discharge cut-off voltage can also be adjusted under 32V. It has a variety of abnormal safety protection measures such as battery reverse connection, wrong connection, short circuit, overvoltage, undervoltage, over-current and over-current heat.

BM200-BL has Bluetooth function, through which users can view the historical charging and discharging data and curves with their phones or PC.

BM200 is desged for many applications, like:

1) Capacity measurement, internal resistance, and health testing of power and energy storage batteries (lithium ion, iron lithium, lead-acid, etc.)

2) Recovery, activation, measurement, and maintenance of the effective capacity of storage batteries that have been idle for more than 6 months

3) Capacity, internal resistance, and health testing of single or combined batteries for electric bicycles, tricycles, and electric sightseeing vehicles


Specifications:

Input voltage: 100~240V 50HZ

Suitable batteries: Pb-Acid, Li-Ion, LiFePO4, NiMH, NiCD....

Analyzer: battery voltage, internal resistance, capacity, SOC, SOH, charging/discharge curves

Charging method:  smart charging process for different battery type.

Suitable capacity: 1Ah~300Ah


Voltage range:  BM200-05: 2V~5V;  BM200-32: 2V~32V

Charge current: BM200-05: 3~30A,  BM200-32: 1~10A

Discharge current: BM200-05: 0~20A,  BM200-32: 0~10A

Temperature compensation: Automatically compensating

Voltage accuracy: +- 1.5%

Current accuracy: +- 5%

Capacity accuracy: +-5%

Abnormal protection: reversed, shorted, OLP, OTP, OLP, OCP, OVP

Bluetooth communication: optional function (- BL has Bluetooth )

Size and weight: 240 * 115 * 65mm, 1.2kg

Safety certification: CE, EN62368, EN61000



Here download BM200 user manual and PC application software

BM200-MAN-EN-V2.0.pdf

BM_Client_2S.zip
