BG21 Coulomb Battery fuel gauge module

BG21 Coulomb Battery fuel gauge module

BG21 Coulomb Battery fuel gauge module

BG21 is a high-performance battery fuel gauge module suitable for various common batteries such as 6V to 48V li-ion batteries, LiFePO4 batteries, lead-acid (SLA, VRLA, GEL, AGM) batteries, NIMH/NICD b...

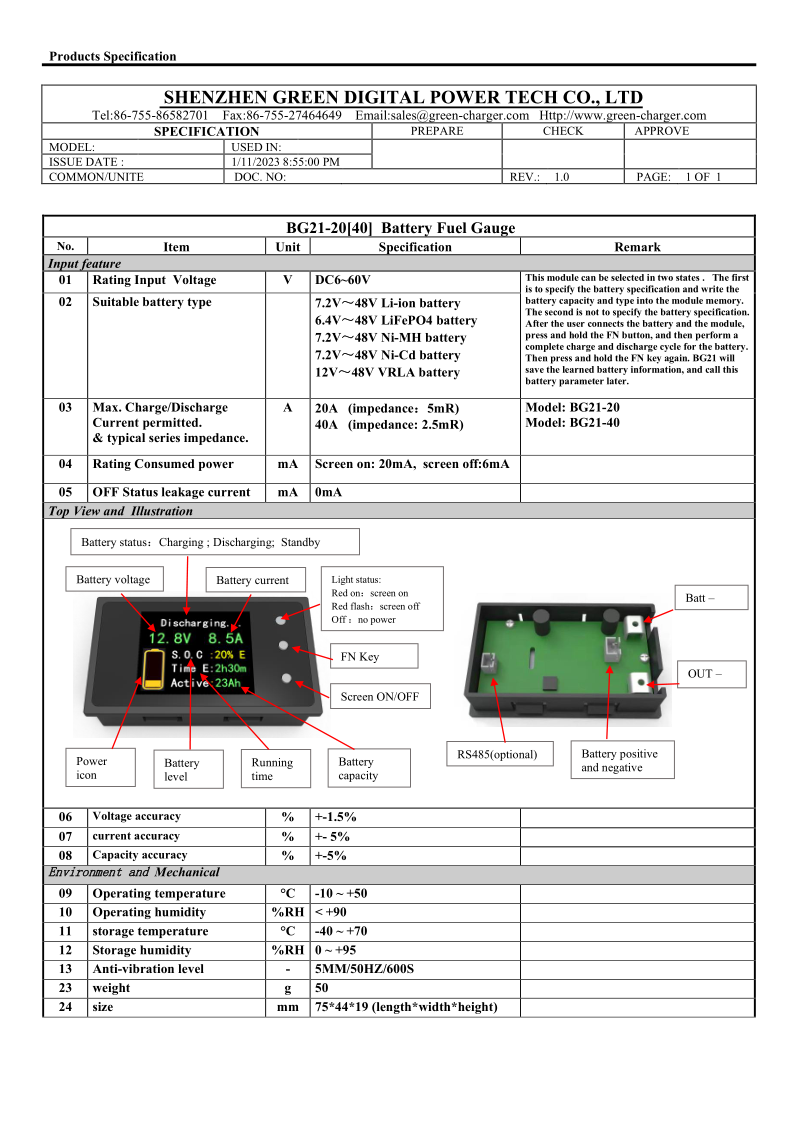

Specifications


Suitable battery: 6V~48V, Li-Ion, LiFePO4, Pb-Acid battery

Voltage range: 5V~60V

Current range: 0~40A

Capacity range: 0~999Ah

Capacity algorithm: Coulomb integration method

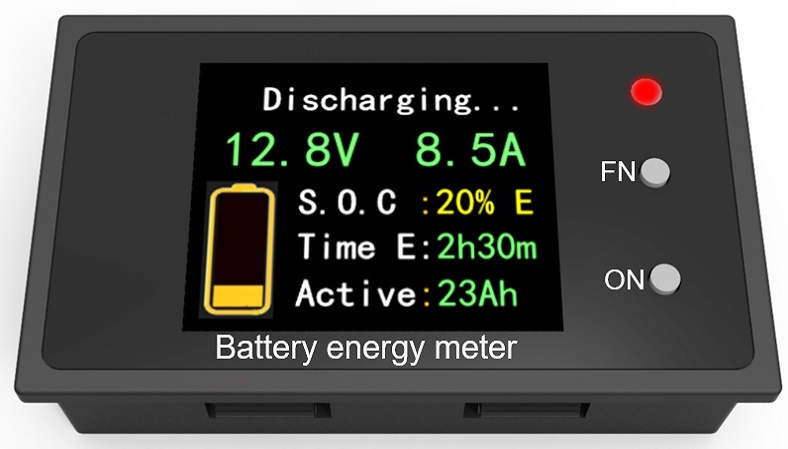

Digital display: voltage, current, SOC, SOH, capacity (Ah), run time

Battery curve: charging curve, discharge curve

Power consumption: 10mA for screen on, 6mA for screen off, 0.9mA for standby

Measurement error: current+- 5%, voltage+- 1.5%, capacity+- 5%

Communication function: optional RS485

Output protection: polarity reverse connection protection

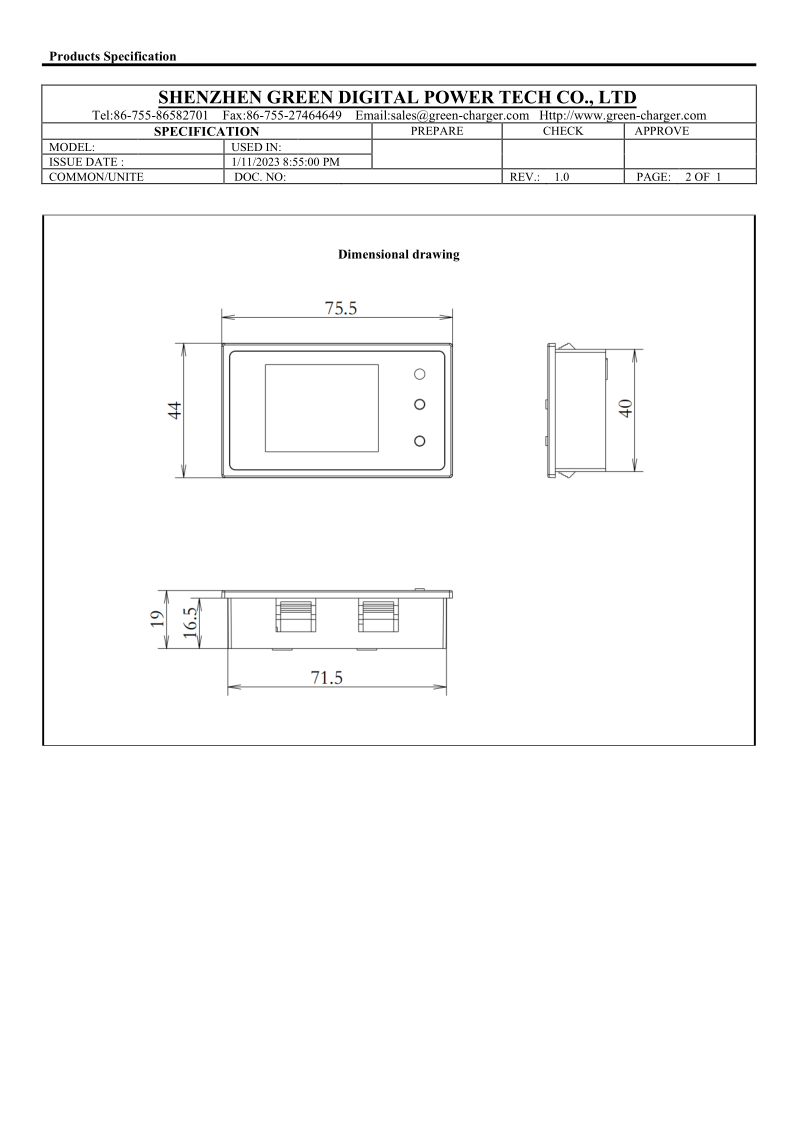

Dimensions Weight: 75x 44 x 19mm/50g


BG21 is a high-performance battery fuel gauge module suitable for various common batteries such as 6V to 48V li-ion batteries, LiFePO4 batteries, lead-acid (SLA, VRLA, GEL, AGM) batteries, NIMH/NICD batteries, and so on. She can measure battery voltage, charge/discharge status, charge/discharge current, state of charge (SOC), SOH, true battery capacity (Ah), charging curve, discharge curve, operating time, and other data. BG21 uses a Coulomb integral algorithm to accurately calculate the Ah capacity value of the battery and draw a charge discharge curve. BG21 is embedded with an automatic learning algorithm that can automatically learn the parameters of the currently connected battery, making it convenient for users to connect various types of batteries.


Suitable battery: 6V~48V, Li-Ion, LiFePO4, Pb-Acid battery

Voltage range: 5V~60V

Current range: 0~40A

Capacity range: 0~999Ah

Capacity algorithm: Coulomb integration method

Digital display: voltage, current, SOC, SOH, capacity (Ah), run time

Battery curve: charging curve, discharge curve

Power consumption: 10mA for screen on, 6mA for screen off, 0.9mA for standby

Measurement error: current+- 5%, voltage+- 1.5%, capacity+- 5%

Communication function: optional RS485

Output protection: polarity reverse connection protection

Dimensions Weight: 75x 44 x 19mm/50g
