Battery Analyzer

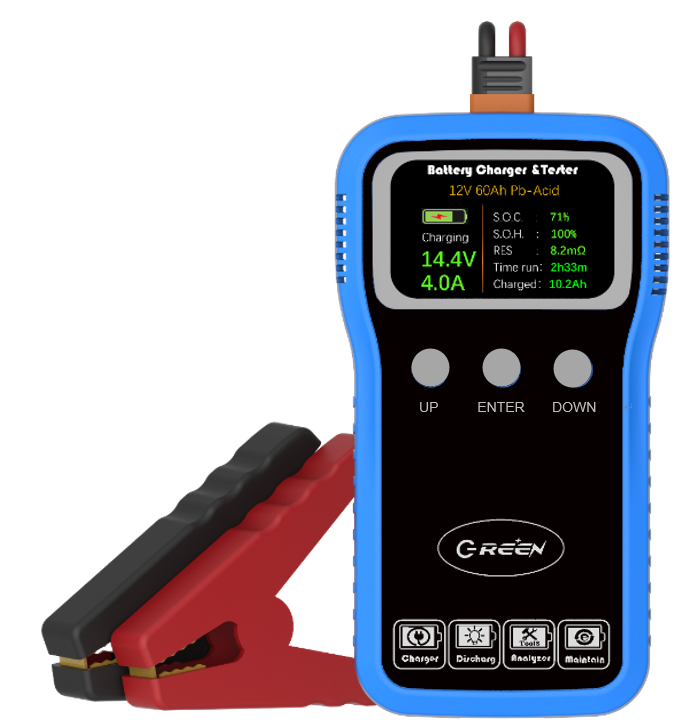

BM6018 is an intelligent instrument that integrates the four functions of battery testing(analyzing), charging, discharging and maintenance. It is designed with a portable plastic shell, and with color TFT displayer and silicon touch keys.

The BM6018 is a powerful assistant for electronic engineers. It can be used to perform performance testing, capacity testing, characteristic curve measurement, and activation and maintenance of long-term storage batteries for various commonly used rechargeable batteries.

BM6018 is widely used for performance testing and routine maintenance of most rechargeable batteries in many portable electronics/electrical devices (such as smart phone, tablet PC, drone, e-bike, e-scooter, power tool, car …). Battery voltage range is 2V ~ 16V capacity range 1Ah~40Ah, and battery types cover Li-ion /LiFePO4 /Pb-Acid /NiMH.

Input of BM6018 is AC100~240V, universal global voltage range. The adjustable range of output constant current charging current is 0.4A~4.0A ; The charging limit voltage and the discharge cut-off voltage can also be adjusted under 3V~18V. It has a variety of abnormal safety protection measures such as battery reverse connection, wrong connection, short circuit, overvoltage, undervoltage, over-current and over-current heat.

BM6018-BL has Bluetooth function, through which users can view the historical charging and discharging data and curves with their phones or PC.

BM6018 is desged for many applications, like:

1. Car & motorcycle  starting  battery charging and SOH (State of Health) test

2. Electronic products’ 1~ 4S lithium-ion battery performance test and analyze

3. Electric bike,  forklift, sightseeing cars, golf carts’ battery SOH. feature test

4. Long-term idle battery capacity active,  energy recover and maintain

Specifications:

Input voltage: 100~240V 50HZ

Suitable batteries: Pb-Acid, Li-Ion, LiFePO4, NiMH, NiCD....

Analyzer: battery voltage, internal resistance, capacity, SOC, SOH, charging/discharge curves

Charging method:  smart charging process for different battery type.

Suitable capacity: 1Ah~60Ah

Voltage range: 3V~18V

Charging current: 1A~4A, maximum charging power: 60W

Discharge current: 0.2~2.0A, maximum discharge power: 8W

Temperature compensation: Automatically compensating

Voltage accuracy: +- 1.5%

Current accuracy: +- 5%

Capacity accuracy: +-5%

Abnormal protection: reversed, shorted, OLP, OTP, OLP, OCP, OVP

Bluetooth communication: optional function (- BL has Bluetooth )

Size and weight: 160 * 88 * 35mm, 280g

Safety certification: CE, EN62368, EN61000

Here download BM6018 user manualBM6018-MAN-EN-V1.1.pdf
