WP2800

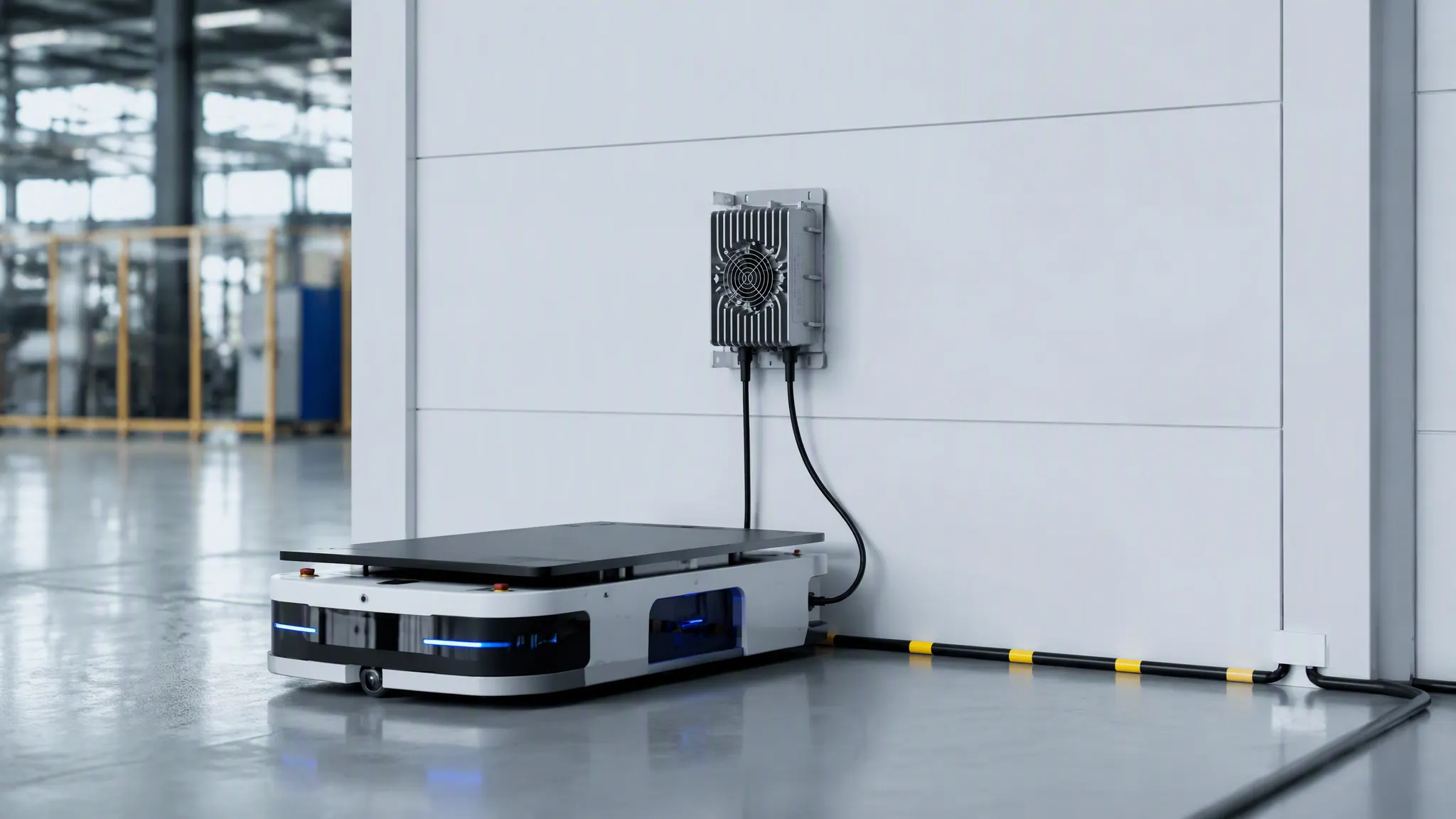

2800W IP-rated waterproof charger for large AGV, LEV and robot battery systems.
2800W.
Waterproof, top of the range.

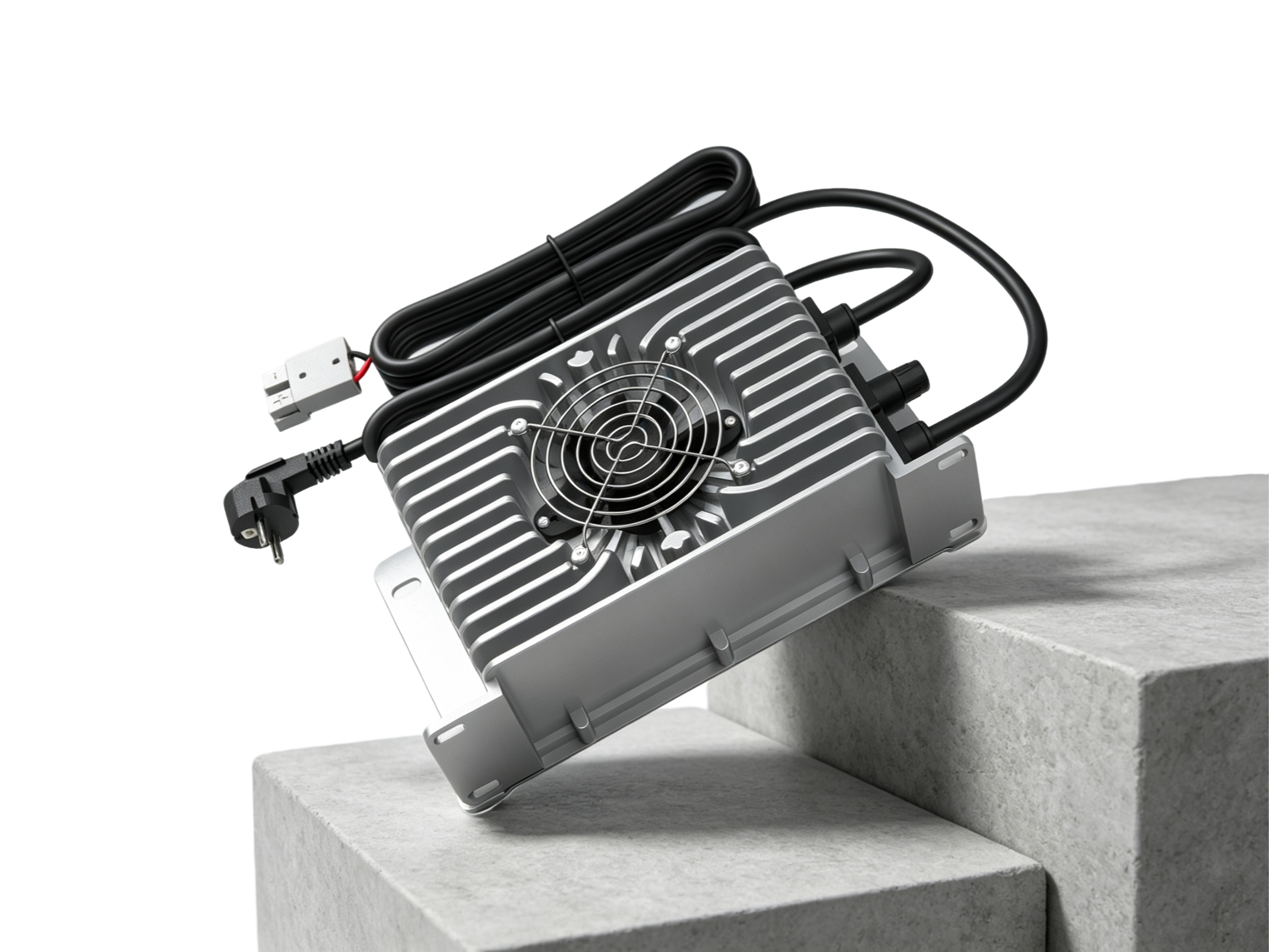

The WP2800 is an aluminium-alloy, IP67-sealed charger rated 2800W at 220–240VAC input (1600W at 100–120VAC). It runs programmable 3- and 4-stage charging curves across 40–88.8V and 10–50A for lithium (Li-ion, LiFePO4) and lead-acid (gel, AGM, VRLA) packs, with an optional CAN interface.
Runs the shift.
And the next one.
2800W IP-rated waterproof charger for large AGV, LEV and robot battery systems — 2800W on 220–240VAC, 1600W on 100–120VAC. Engineered to keep running where space, weight and thermal headroom matter, from -10°C to +40°C.
94% at full load.
Less waste.
The WP2800 is tuned for stable, high-efficiency operation across its full voltage and current range, minimizing heat and energy waste. An active PFC front end holds power factor above 0.96 at full load, and the 90–264VAC input range covers every mains.
Charges the fleet.
Stage by stage.
Pre-charge → constant current → constant voltage → shut-off. GREEN's charging curve keeps cells safe through every phase of the charge.
Rugged by design.
Always watching.

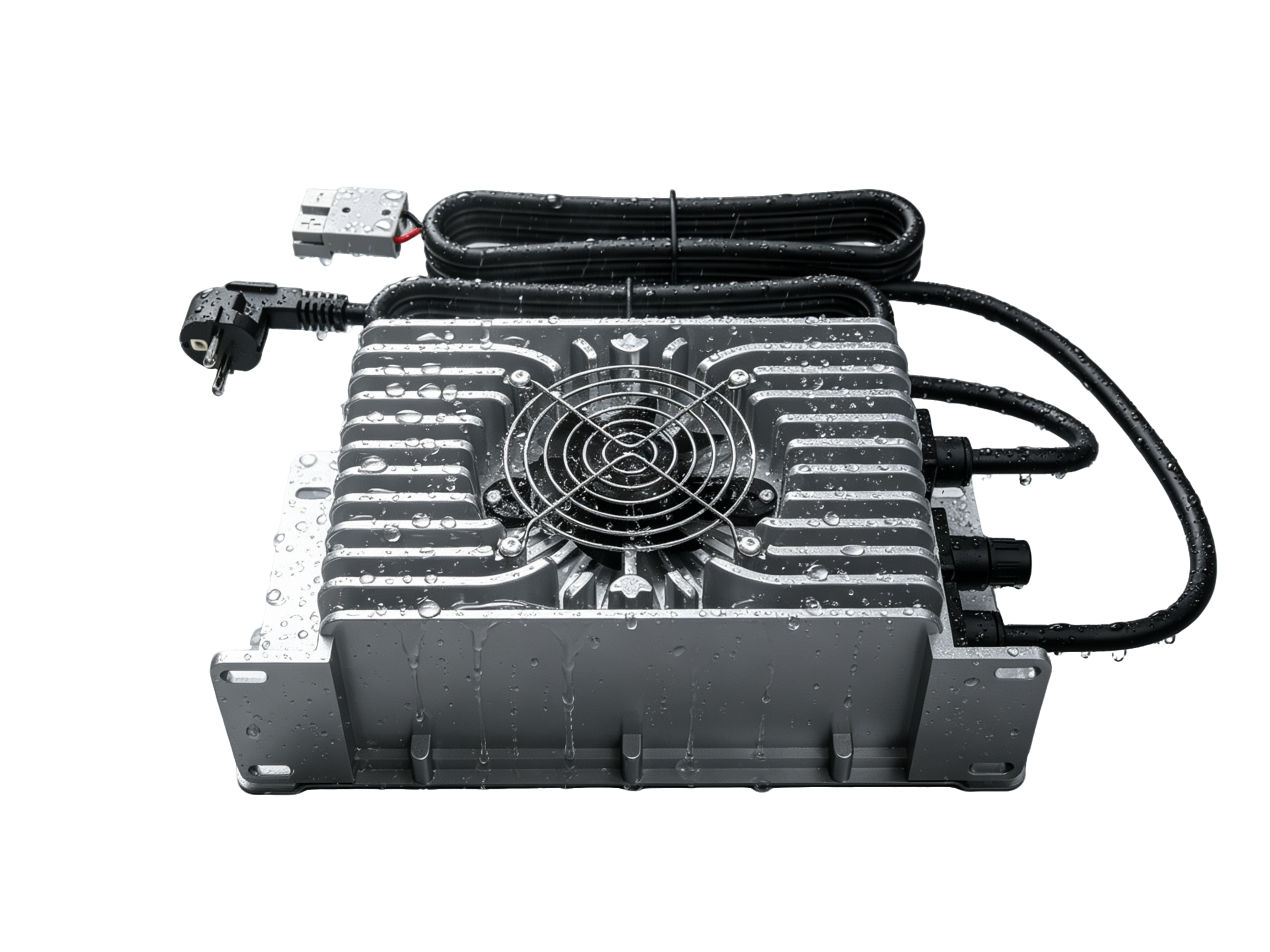

Layered protection guards the connected equipment behind it. Industrial-grade components handle vibration, humidity and temperature swings.
Every detail,
spelled out.
- Input Range
- AC 90~264V 50/60Hz 14A
- Output Range
- DC 40~88.8V, 2800W max @220–240VAC (1600W @100–120VAC)
- High-efficiency Resonant Converter
- 93–94% @230V full load (varies by model)
- High Power Factor Circuit
- PF > 0.96 @ full load
- Multiple Output Protections
- Over-voltage, short-circuit, reverse-polarity and over-temperature protections
- Li-ion Charging Profile
- Pre-charge, CC, CV and cut-off (4-stage charging)
- Lead-acid Charging Profile
- CC, high-CV, low-CV (3-stage charging)
- Case Material & Cooling
- Metal case with fan
- Ingress Protection (IP)
- IP67
- Safety Certifications
- CE FCC
- Dimensions & Weight
- 288 x 168 x 89mm/6Kg
- Applicable Batteries
- 48V~72V lead-acid battery, 12~24 cells Li-based batteries
Need it customized?
Tell us your voltage, current and connector — we'll tune the WP2800 or build a fresh power stage around your spec.
