UAV Chargers

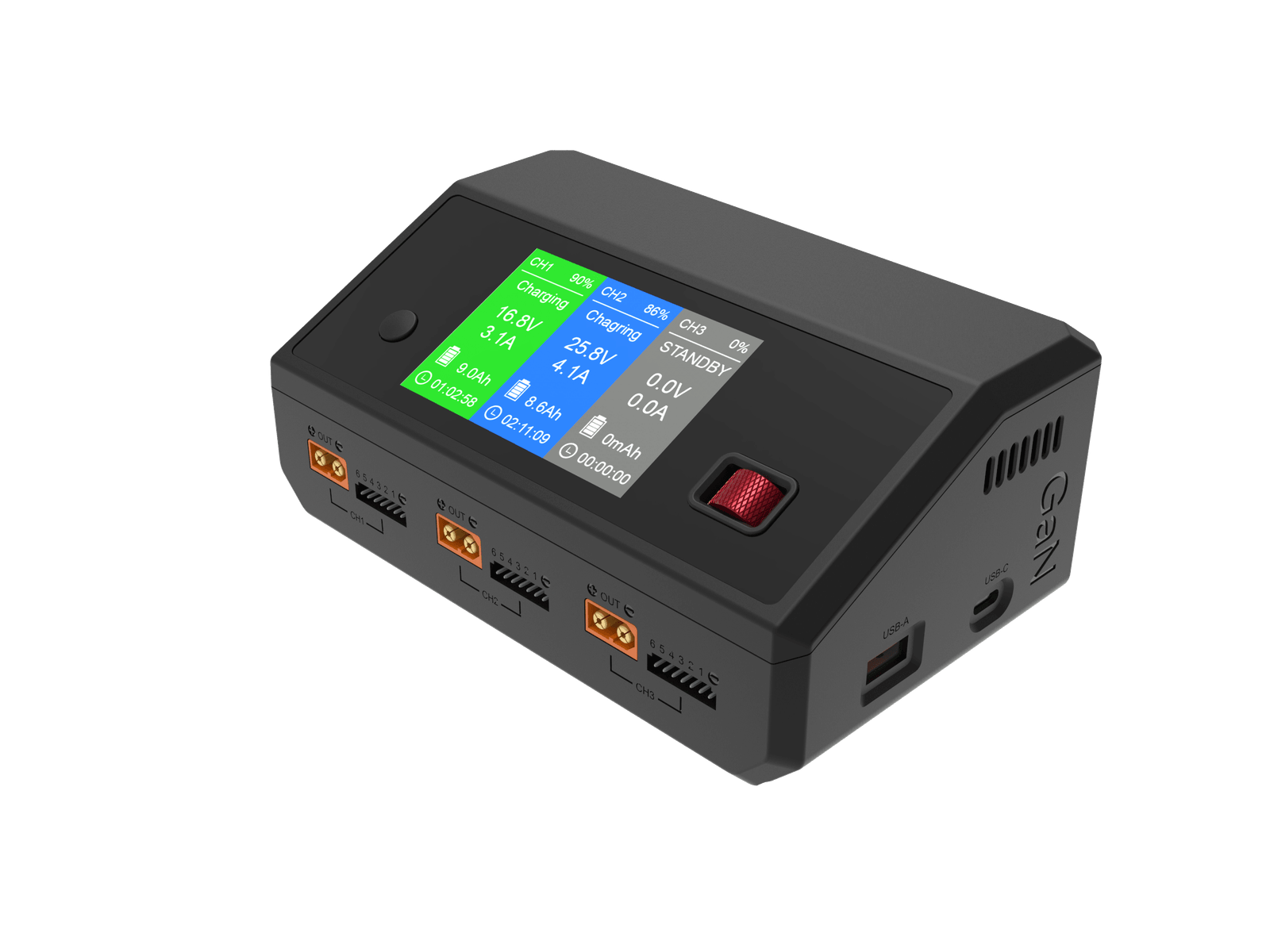

TAD300 UAV Balancing Charger
300W-class balancing charger for UAV battery packs with per-cell equalization.
The TAD300 is a three-channel UAV balancing charger built for 2S–6S Li-ion drone battery packs. Each channel drives up to 26V/15A (3 × 300W max) with a smart 4-stage charging curve and a built-in 1.6A cell balancer. It accepts both AC (100–240V) and DC (7–32V) input for indoor and field use, and every output is fully programmable via the 2.8″ IPS LCD. Applicable to LiPo/LiHV/LiFe/Li-ion/LTO/NiMH/NiCd/AGM packs from 2–50Ah.
Certifications
CEFCCIEC 62368-1EN 55032 Class B
Datasheet
Download DatasheetTAD300-CHARGER-EN-V1.0.pdf — technical specification (PDF preview)
Loading…
Models
1 model in the TAD300 series.
| Model | Battery Type | Voltage | Current | Power | Efficiency | Protection | Applications |
|---|---|---|---|---|---|---|---|
| TAD300 | LiPo / LiHV / LiFe / Li-ion / LTO / NiMH / NiCd / AGM (2S–6S) | DC 7–26V | 1–15A | 3 × 300W max (AC) / 900W max (DC input) | 90% typ. | OVP, short-circuit, over-temperature, reverse polarity | Drone & UAV battery packs, 2–50Ah |
Interested in the TAD300 series?
Send us your battery pack specs or device requirements — we reply with a matched model, pricing and lead time.
