CD130

130W vehicle USB-C PD charger — PD 3.0/3.1 with EPR and PPS/AVS (3.3–21V), 2×USB-C + 1×USB-A, 10–32V DC input for car and truck applications.

OUTPUT 3.3–21VCURRENT 3–5APOWER 9.9–130WCERT CE

Full Specifications →

CE · FCCIndustrial Grade

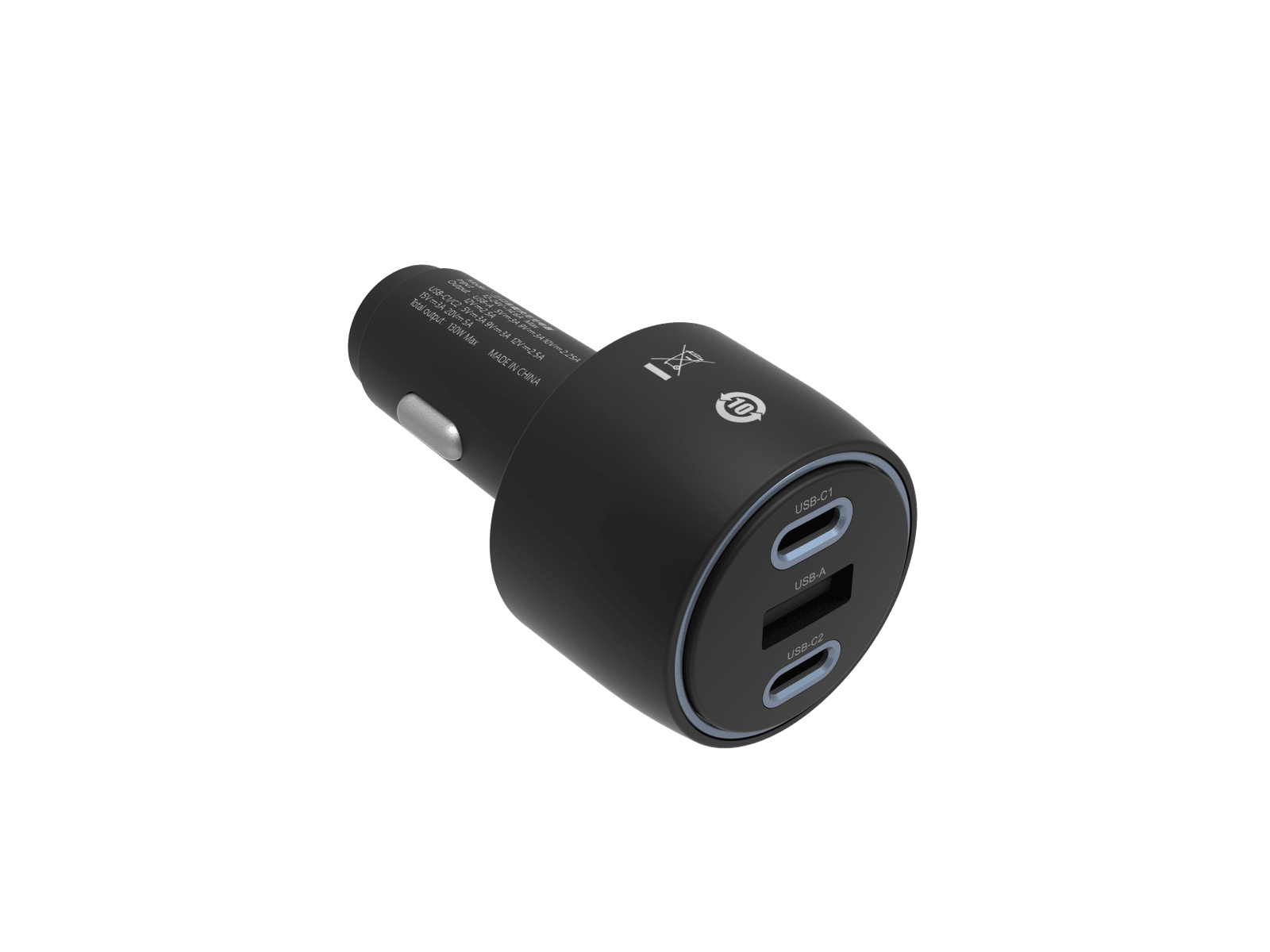

CD130 130W Vehicle PD Charger product render

SCROLL

CD130 130W Vehicle PD Charger close-up detail shot

130W.
Three ports, in the cab.

130W USB-C PD charger for vehicles. Delivers PD 3.0/3.1 with EPR and PPS/EPR AVS (3.3–21V) from a 10–32V DC input, with two USB-C and one USB-A port in a compact, fanless enclosure.

KEEP SCROLLING

USB-C power

Small brick.
Full protocol stack.

130W vehicle USB-C PD charger — PD 3.0/3.1 with EPR and PPS/AVS (3.3–21V), 2×USB-C + 1×USB-A, 10–32V DC input for car and truck applications.

130W

Max Output

95%

Peak Efficiency

90g

Weight

CD130 130W Vehicle PD Charger power stage cutaway

High-Efficiency Design

95% typical.
Less waste.

The CD130 is tuned for stable, high-efficiency operation across its full voltage and current range, minimizing heat and energy waste.

Industry average~88%

CD13095%

Typical at DC12V input, 20V/5A load.

CD130 130W Vehicle PD Charger technology and cooling detail

Multi-Port PD 3.1

One charger.
Three ports.

Power Delivery 3.1 with EPR AVS and PPS (3.3–21V programmable per port) from a wide 10–32V DC input — laptops, drones and power tools on USB-C, phones and accessories on the rest.

USB-C1 · 100WNotebook-class single-port charging

USB-C2 · 30WTablets, earbuds and accessories

USB-A · 18WLegacy devices keep their port

130W totalAll three ports charging simultaneously

CD130 130W Vehicle PD Charger charging architecture illustration

Protection built in

Safe power.
Port by port.

Layered protection guards the connected equipment behind it. Industrial-grade components handle vibration, humidity and temperature swings.

Over-voltageOutput clamped

Over-currentCurrent limited

Over-temperatureThermal derating

Short-circuitAuto shutdown

CD130 130W Vehicle PD Charger safety and protection detail

Specifications

Every detail,
spelled out.

Input Range: DC 12–24V rated (range 10–32V DC), 13.0A max @12VDC
Output Range: 5V/3A · 9V/3A · 10V/3A · 11V/3A · 12V/3A · 15V/3A · 20V/5A · PPS 3.3–21V/5A (130W max)
Port Power Split: USB-C1 100W single · USB-C2 30W · USB-A 18W · 130W all three (C1+C2+A) simultaneous
USB PD Protocol: PD 3.0, PD3.1 EPR AVS, PPS, QC2.0/3.0/4+, AFC, Apple 2.4, BC1.2
Output Regulation: Voltage 1% · load 5% · ripple < 1% Vout · start-up < 3s · rise < 200ms
Efficiency: 95% typ. @ DC12V input, 20V/5A load
Output Protection: Short-circuit · over-voltage · over-current
Operating Temperature: −10 ~ +60°C (refer to Derating Curve)
Storage & Humidity: −40 ~ +70°C, 0–95% RH (operating 0–90% RH), natural convection
Safety & EMC: CE · FCC · Hi-Pot 3000V (1 min) · EN 55032 / FCC Part 15 Class B · EN 61000-4 series immunity
Dimensions & Weight: ⌀34 × 78mm (cylinder) / 90g
MTBF: 30000H
