G630

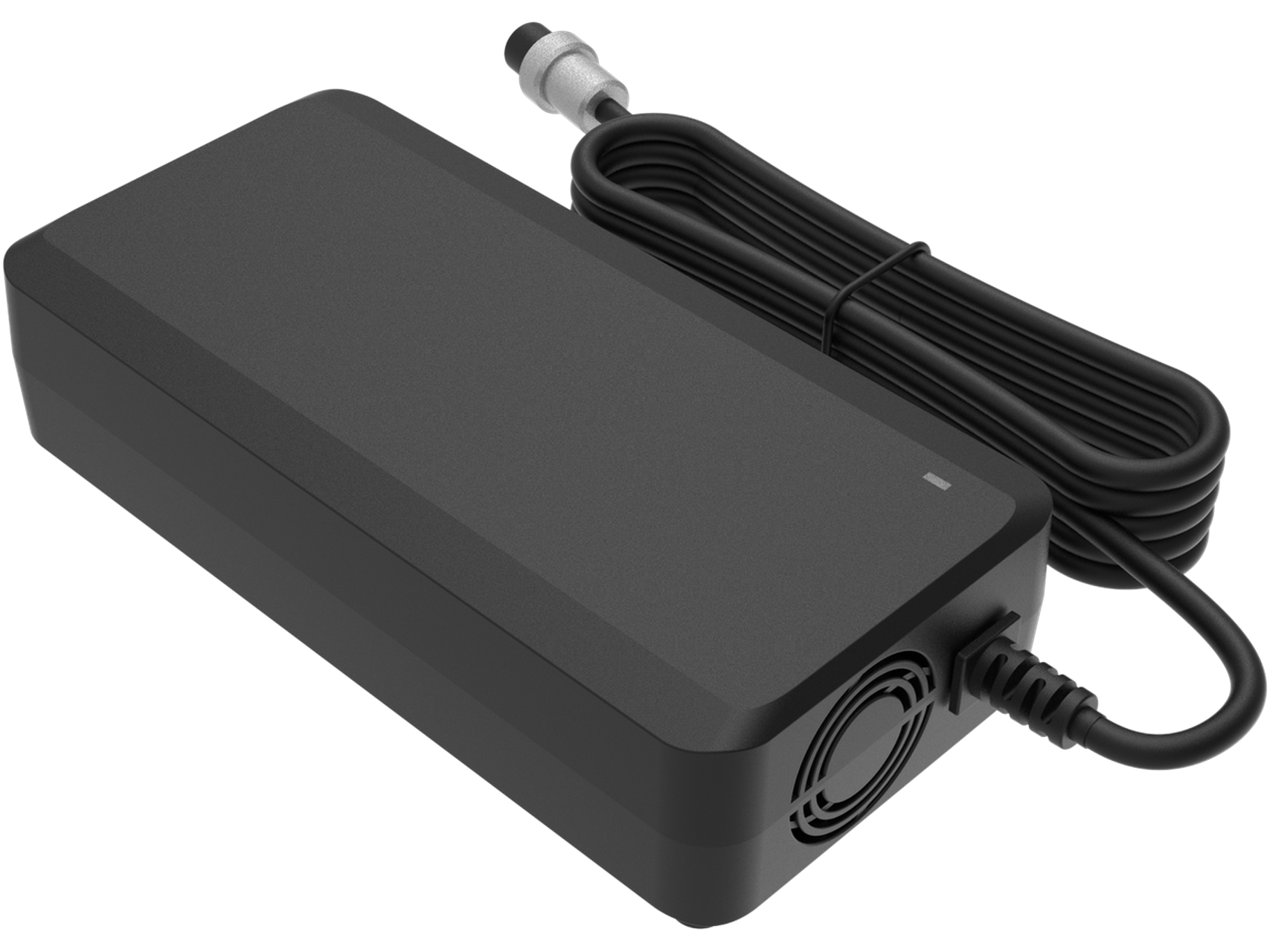

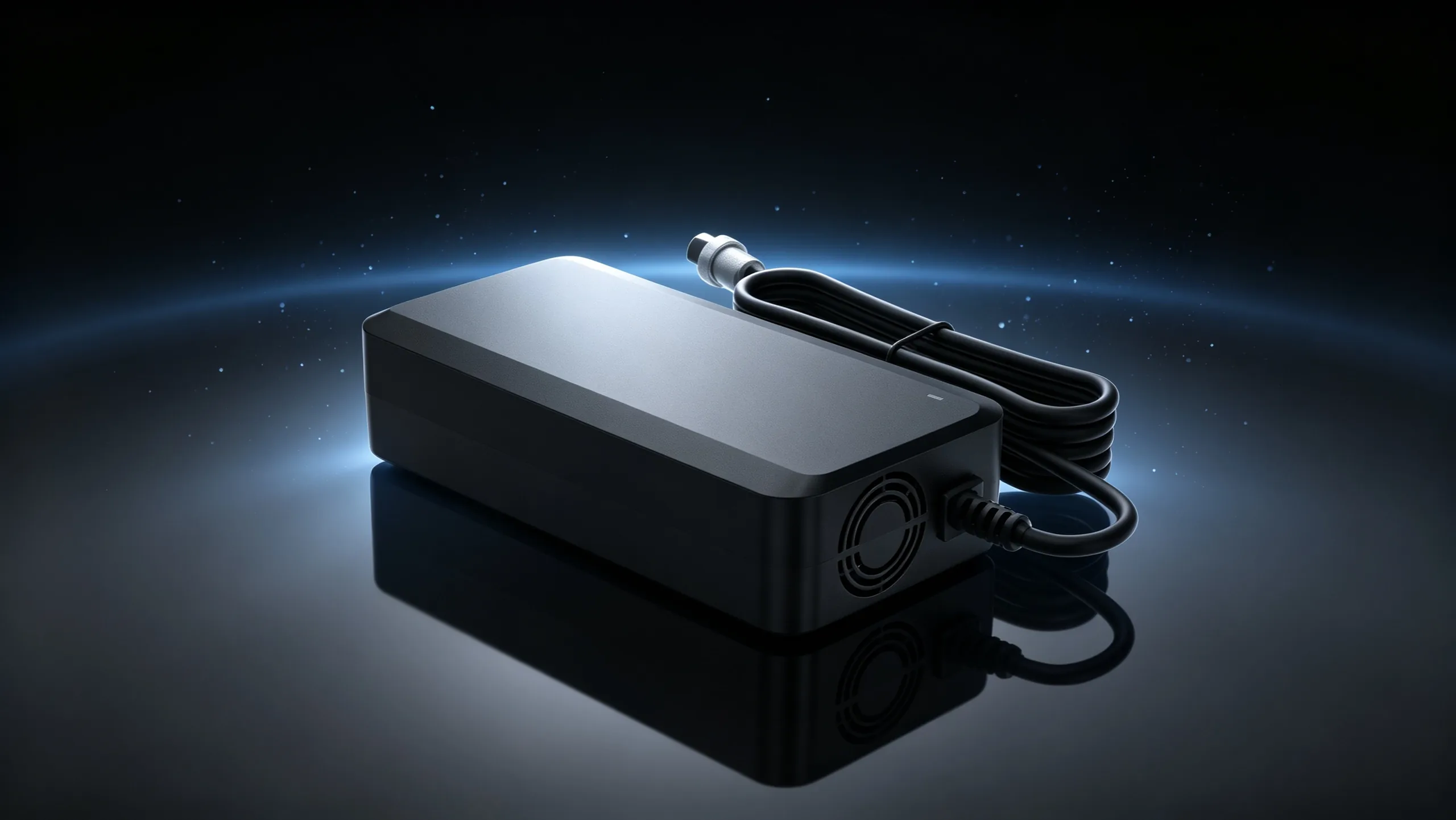

600W portable charger series with a wide charging-output range — mobile charging for field equipment, service vehicles and light electric vehicle fleets.
600W.
One charger, every pack.
600W high-power battery chargers with wide charging-output range for industrial and robotic systems.
Compact box.
Serious charge.
600W portable charger series with a wide charging-output range — mobile charging for field equipment, service vehicles and light electric vehicle fleets.
Higher efficiency.
Less waste.
The G630 is tuned for stable, high-efficiency operation across its full voltage and current range, minimizing heat and energy waste.
Two chemistries.
One charger.
Built-in four-stage charging curves for lithium packs (Li-ion, LiFePO4, lithium manganese) and a dedicated four-stage profile for lead-acid — one charger covers mixed fleets, with universal 90–264V AC input and active PFC at 93% efficiency.
Light Tells All.
One glance. Full status.

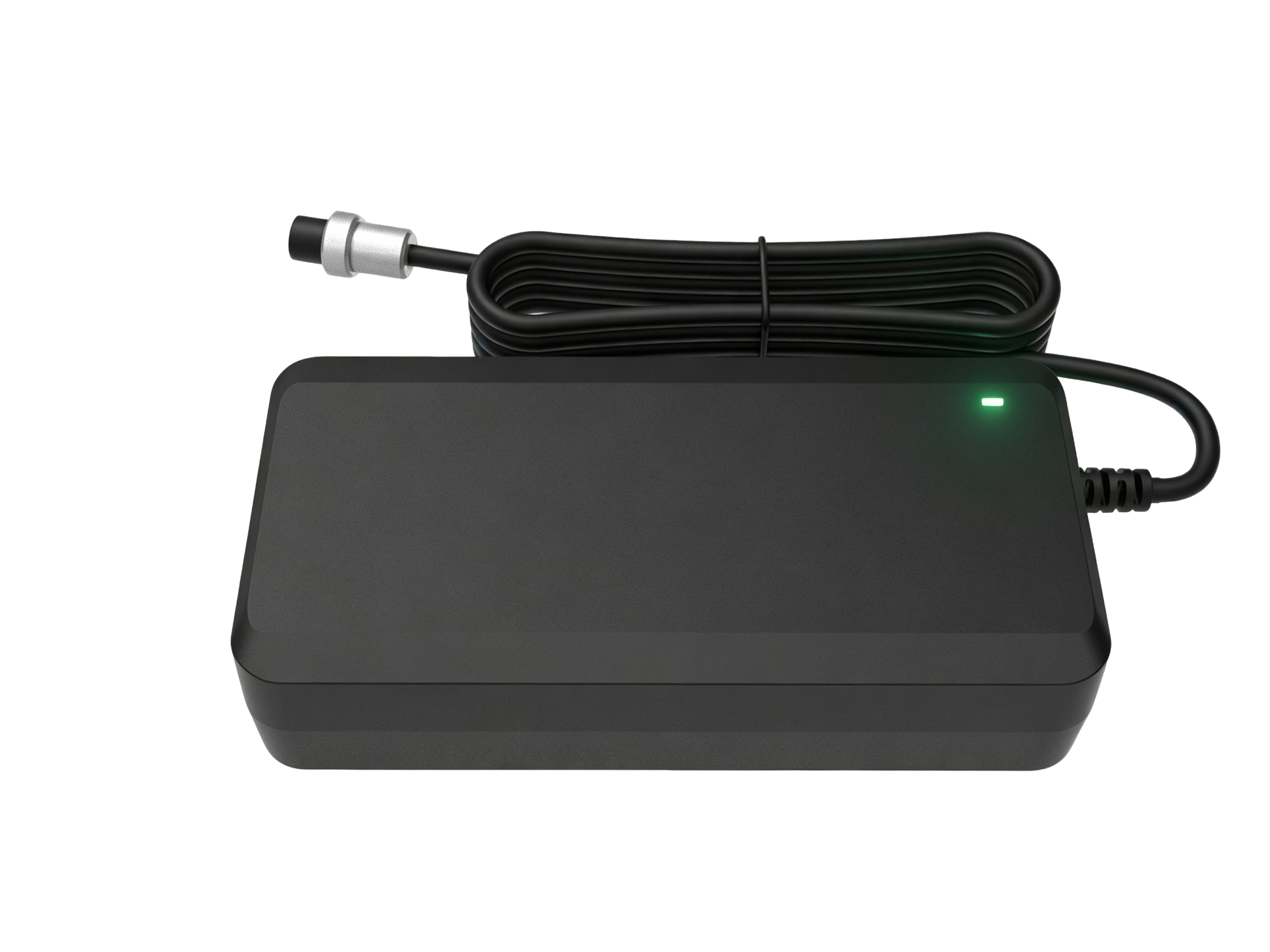

Red light on: charging in progress.
Green light on: battery fully charged.
Clear. Simple. Reassuring.
Faults contained.
Packs protected.
Short circuit, over voltage, over temperature, battery over-voltage and battery reverse polarity are all monitored — a fault shuts the output down before it reaches the pack, on the bench or in the field.
- Short circuit
- Over voltage
- Over temperature
- Battery over-voltage
- Reverse polarity
Every detail,
spelled out.
- Output
- DC 10–99V, 600W max (450–500W on the lowest-voltage models @ AC220V)
- Input
- AC 90–264V 50/60Hz (rated 100–240VAC)
- Charging
- Pre-charge → constant current → constant voltage → cut-off
- Indicator
- Bi-color LED or optional LCD panel
- Comms
- CAN / RS485 (CAN default)
- Protection
- Short circuit · Over voltage · Over temperature · Battery over voltage · Battery reverse polarity
- Operating temp
- -10 ~ +40℃ (refer to the derating curve)
- Safety
- IEC 62368
Key specifications shown — the datasheet carries the full tables.
Need it customized?
Tell us your voltage, current and connector — we'll tune the G630 or build a fresh power stage around your spec.
