Smart Chargers

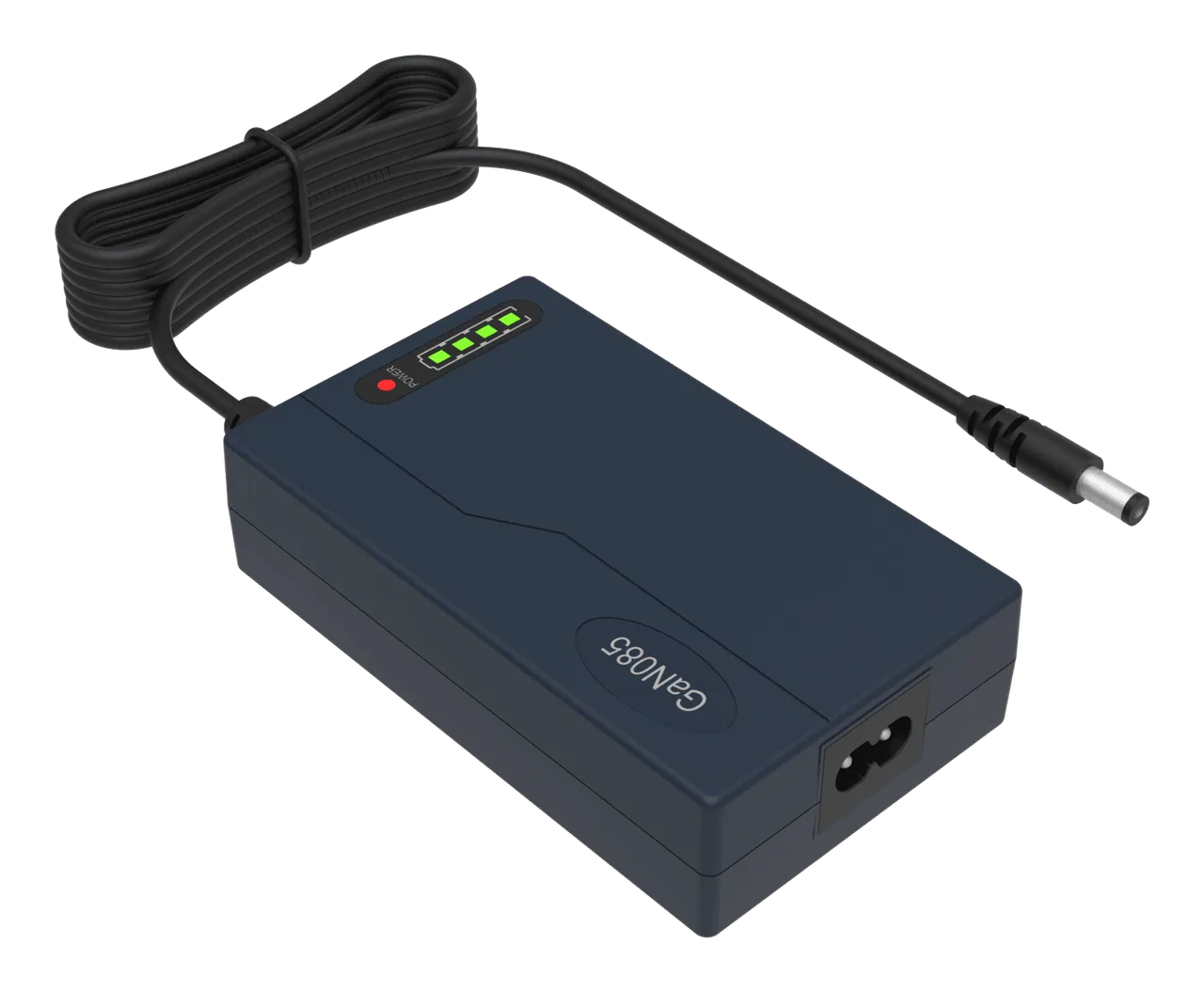

GAN085

85W GaN desktop charger with 4-stage (Li-ion) / 3-stage (Lead-Acid) curves and universal 90–264V AC input, for power tools, drones, e-scooters and surveillance.

OUTPUT 12.6–58.8VCURRENT 1.5–6APOWER 76–88WCERT CE

Full Specifications →

CE · PSE · cETLusIndustrial Grade

SCROLL

85W.
Ready for the workbench.

The GaN085 is an 85W GaN AC/DC desktop charger with independent 4-stage (Li-ion) and 3-stage (Lead-Acid) charging curves, suitable for Li-ion, LiFePO4, lithium-manganese, lead-acid (gel / flooded / AGM) and NiMH battery packs. With universal 90–264V AC input, >93% efficiency and short-circuit / over-voltage / reverse-polarity protection, it serves power tools, drones, e-scooters, surveillance systems and consumer electronics.

KEEP SCROLLING

Desktop charging

Compact box.
Serious charge.

85W GaN desktop charger with 4-stage (Li-ion) / 3-stage (Lead-Acid) curves and universal 90–264V AC input, for power tools, drones, e-scooters and surveillance.

85W

Max Output

250g

Weight

Gallium Nitride

Cooler. Lighter.
Higher frequency.

GaN switches at far higher frequency than traditional silicon, cutting switching losses — so more power fits in less volume, with less heat.

Pre-charge → CC → CV → Cut-off

Right curve.
Every pack.

Pre-charge → constant current → constant voltage → shut-off. GREEN's charging curve keeps cells safe through every phase of the charge.

VoltageCurrent

Three guards, built in

Guarded output.
Worry-free charging.

Short-circuit, over-voltage and reverse-polarity protection shut the output down before a fault reaches your pack — backed by 3000V input-to-output isolation and a fanless design rated from -10 to +40°C.

Short circuitOutput shut down

Over voltage>110% of setting

Reverse polarityMechanical connector

Specifications

Every detail,
spelled out.

Output Range: 12.6–58.8V (per model), up to 6.0A, 85W class
Input Range: 100–240V AC, 50/60Hz (range 90–264V)
Applicable Batteries: Li-ion, LiFePO4, LiMn, Lead-Acid (gel/flooded/AGM), NiMH
Output Protection: Short-circuit, over-voltage, reverse-polarity
Charging Profile: 4-stage (Li-ion) / 3-stage (Lead-Acid)
Charge Indicator: 4-LED capacity indicator (25/50/75/100%); flashing = error
Efficiency: 93–93.5% typ. @ full load
Safety Certifications: CE / PSE / cETLus / SAA / CB / FCC / UK
Dimensions & Weight: 114 × 68.4 × 29mm / 250g
Charge Voltage: 12.6 / 16.8 / 21.0 / 29.4 / 42.0 / 58.8V ±1% (per model)
Charge Voltage Range: 7.5–12.6 / 10–16.8 / 12.5–21.0 / 17.5–29.4 / 25–42.0 / 35–58.8V
Charge Current: 6.0 / 5.0 / 4.0 / 2.8 / 2.0 / 1.5A ±10% (per model)
