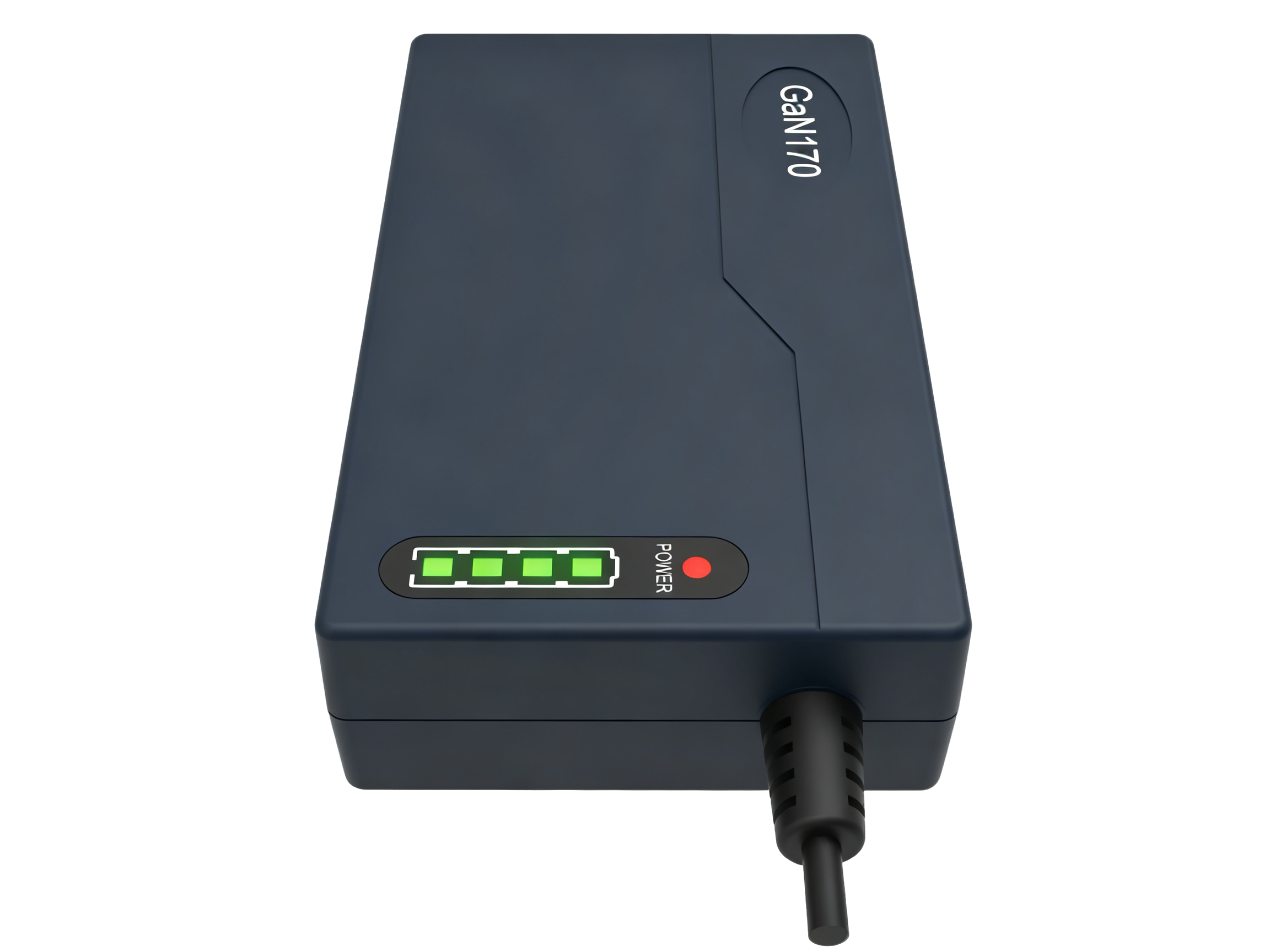

GAN170
170W GaN smart chargers covering 12V to 58.8V battery systems for light electric vehicles and portable equipment.
170W.
Smart charging for light EVs.
The GAN170 series delivers 170W from a GaN power stage roughly half the size of a comparable silicon design. As a smart charger it runs a full multi-stage profile for Li-ion, LiFePO4 and lead-acid battery packs — a natural fit for e-scooters, e-bikes and portable field equipment.
Compact box.
Serious charge.
170W GaN smart chargers covering 12V to 58.8V battery systems for light electric vehicles and portable equipment.
Cooler. Lighter.
Higher frequency.
GaN switches at far higher frequency than traditional silicon, cutting switching losses — so more power fits in less volume, with less heat.
Right curve.
Every pack.
Pre-charge → constant current → constant voltage → shut-off. GREEN's charging curve keeps cells safe through every phase of the charge.
Guarded cells.
Peace of mind.
Layered protection guards the connected equipment behind it. Industrial-grade components handle vibration, humidity and temperature swings.
Every detail,
spelled out.
- Input Range
- Rated 110/240VAC 50/60Hz; range 100-120VAC / 200-240VAC; input current 2.2A@100VAC
- Output Range
- DC 12.6~59.2V, 168W max
- Output Protection
- Over-voltage, short-circuit, reverse-polarity and over-temperature protections
- Charging Profile
- Li-ion/LiFePO4: pre-charge, CC, CV and cut-off (4-stage); Lead-Acid: CC, high-CV, float (3-stage)

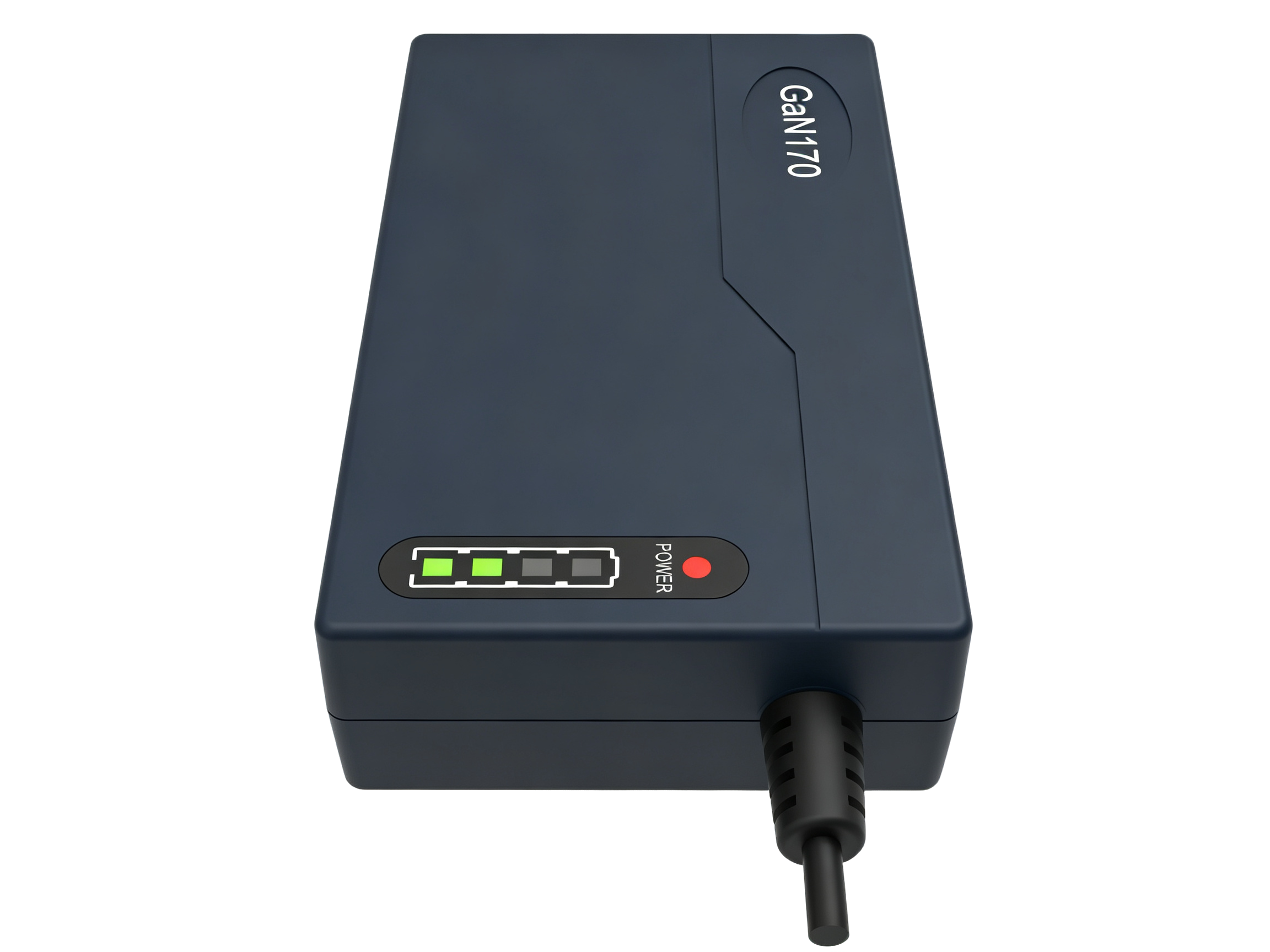

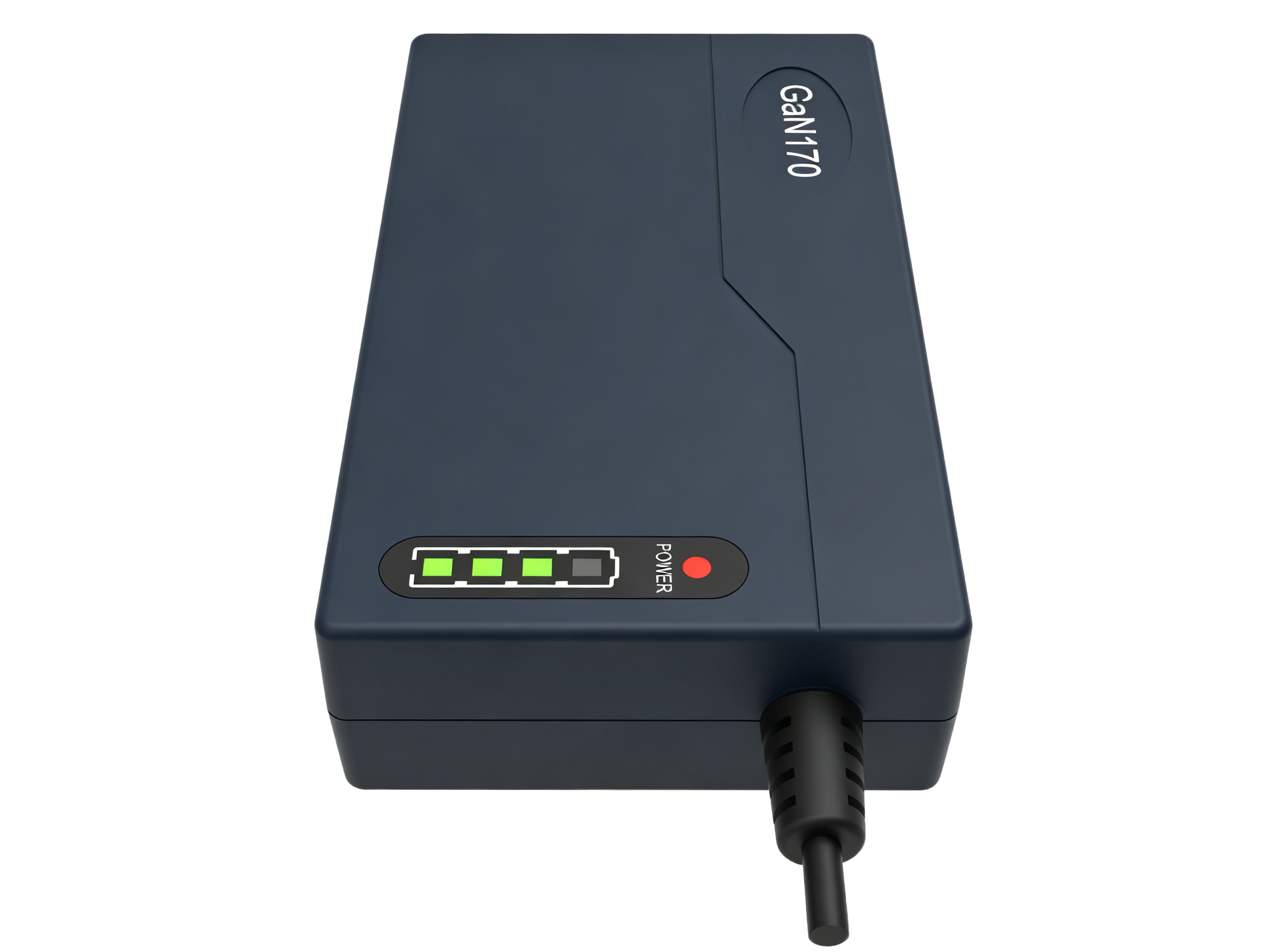

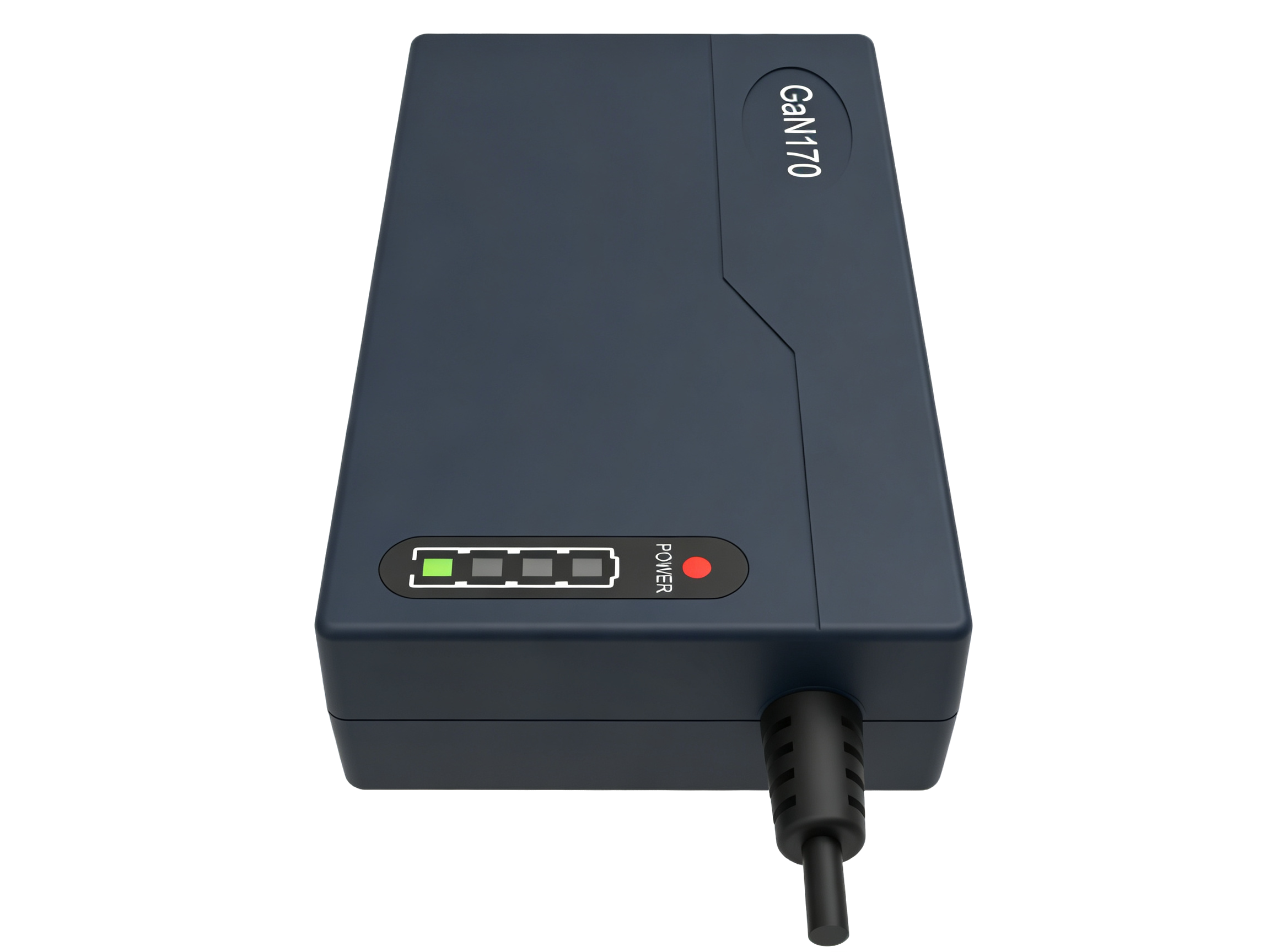

- Status Display
- Red/Green dual LED (Red=fast charge, Green=complete/standby)
- Safety Certifications
- IEC62368-1 (EMC: EN55032 / FCC Part15 Class B)
- Dimensions & Weight
- 114 x 68.4 x 29mm/350g
- Applicable Batteries
- Li-ion 12.6~58.8V; LiFePO4 14.4~57.6V (12.8~51.2V, 4~16cells); Lead-Acid 14.8~59.2V
- Applicable Equipment
- Power tools, electric unicycles, photography lighting, etc.
- GaN170-126120
- 12.6V 12.0A / Pre-charge, CC, CV and Cut-off (4-stage charging) / Over-voltage, short-circuit, reverse polarity and over-temperature protection / IEC62368-1
- GaN170-168090
- 16.8V 9.0A / Pre-charge, CC, CV and Cut-off (4-stage charging) / Over-voltage, short-circuit, reverse polarity and over-temperature protection / IEC62368-1
- GaN170-294057
- 29.4V 5.7A / Pre-charge, CC, CV and Cut-off (4-stage charging) / Over-voltage, short-circuit, reverse polarity and over-temperature protection / IEC62368-1
Need it customized?
Tell us your voltage, current and connector — we'll tune the GAN170 or build a fresh power stage around your spec.
