G1300
1200W high-power adapters with outputs from 24V/36A to 60V/20A.
1200W.
On duty.
The G1300 series scales the adapter platform to 1200W for high-current and high-load applications. With outputs up to 60V/20A it powers AGV systems, LEV traction and other equipment where continuous high-power availability directly limits uptime.
Big power.
Compact footprint.
1200W high-power adapters with outputs from 24V/36A to 60V/20A. Engineered for reliable output where space, weight and thermal headroom matter.

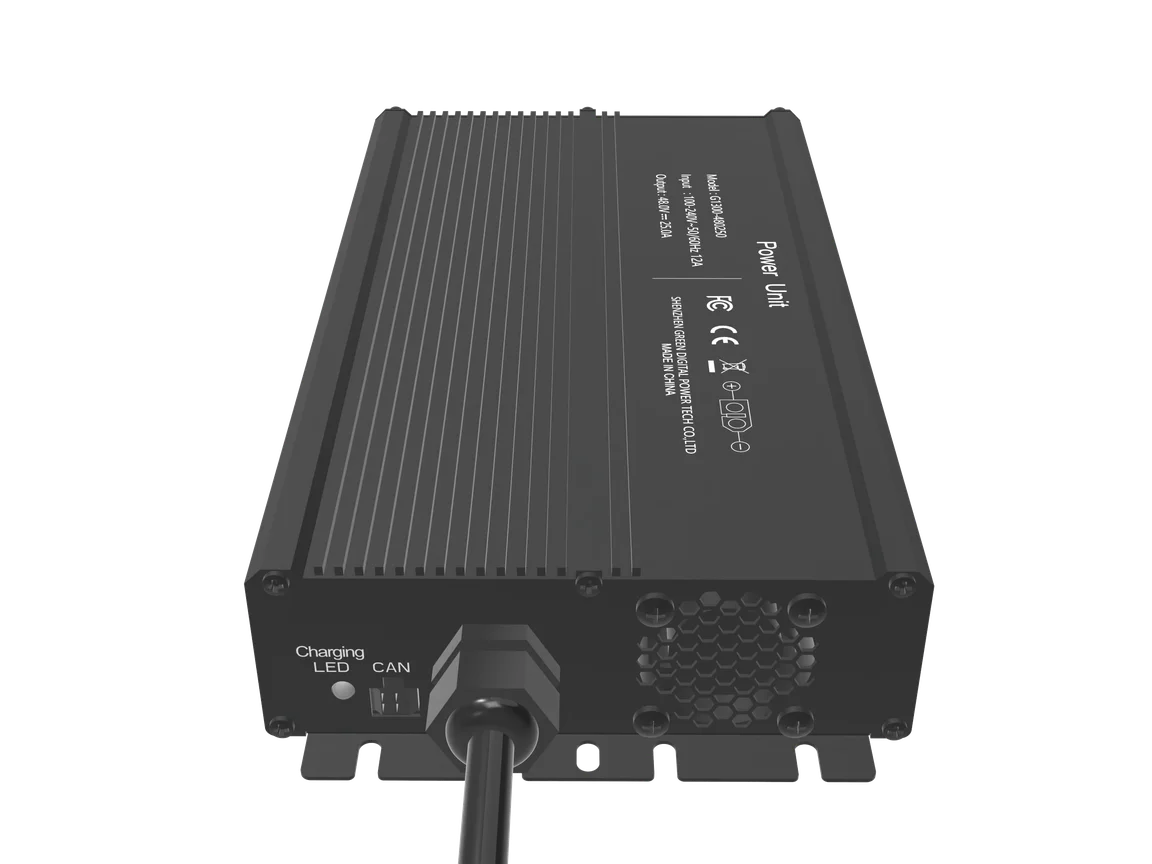

Higher efficiency.
Less waste.
The G1300 is tuned for stable, high-efficiency operation across its full voltage and current range, minimizing heat and energy waste.
Smart cooling.
Ready for any load.

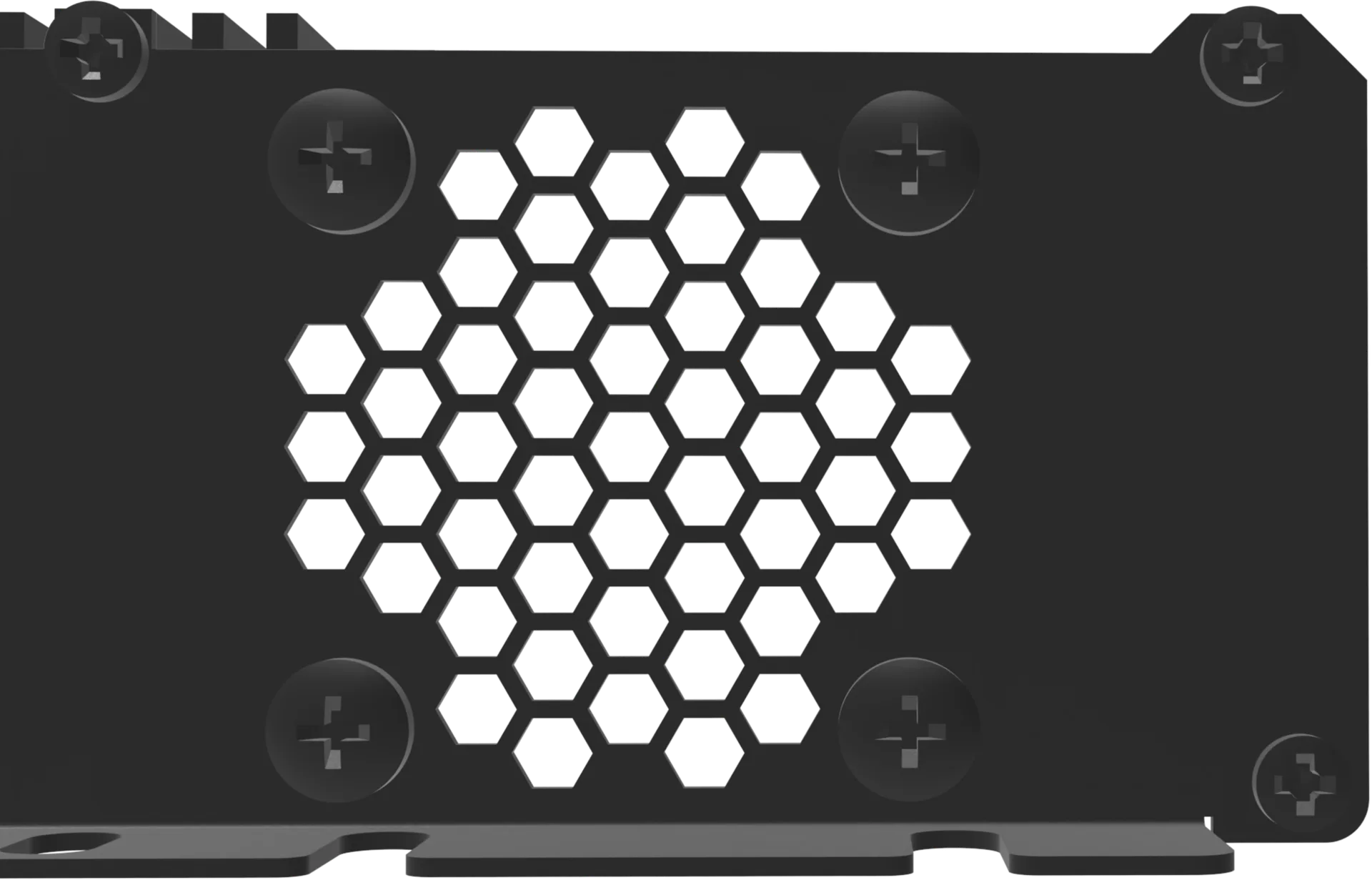

The temperature-controlled fan spins up automatically as load and heat rise, pushing air through the honeycomb vent grid — so 1200W of continuous output stays cool, quiet and stable.

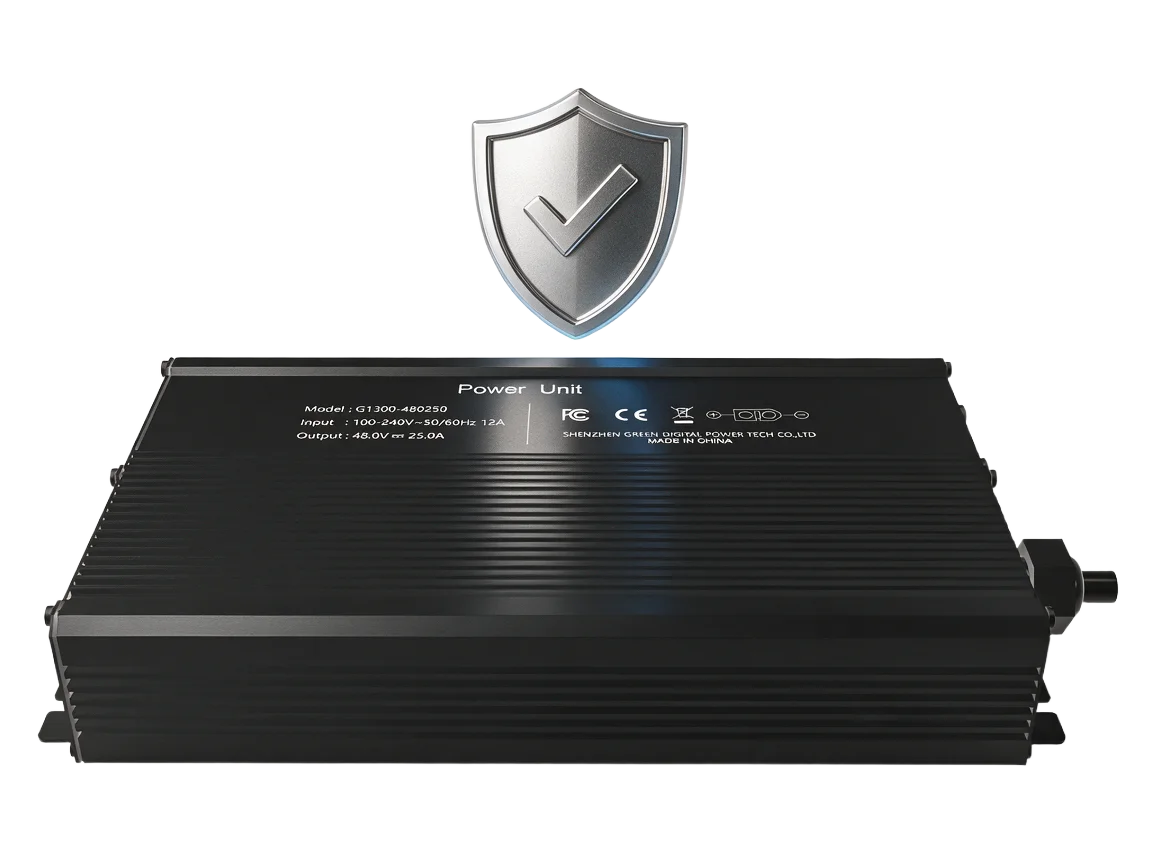

Built to last.
No worries.
Layered protection guards the connected equipment behind it. Industrial-grade components handle vibration, humidity and temperature swings.
Every detail,
spelled out.
- Input Range
- AC90~264V 50/60Hz 14A
- Output Range
- DC24~60V 1200W max
- High-efficiency Resonant Converter
- up to 94% @230V full load
- High Power Factor Circuit
- Built-in active PFC circuit
- Enclosure Material
- Metal case with fan
- Dimensions & Weight
- 280x145x47.7mm/1.8Kg
- Safety & EMC
- IEC 62368-1 · EN 55032 / FCC Part 15 Class B (EMC)
- G1300-240360
- 24.0V 36.0A
- G1300-360300
- 36.0V 30.0A
- G1300-420280
- 42.0V 28.0A
- G1300-480250
- 48.0V 25.0A
- G1300-600200
- 60.0V 20.0A
Need it customized?
Tell us your voltage, current and connector — we'll tune the G1300 or build a fresh power stage around your spec.
