Power Adapters

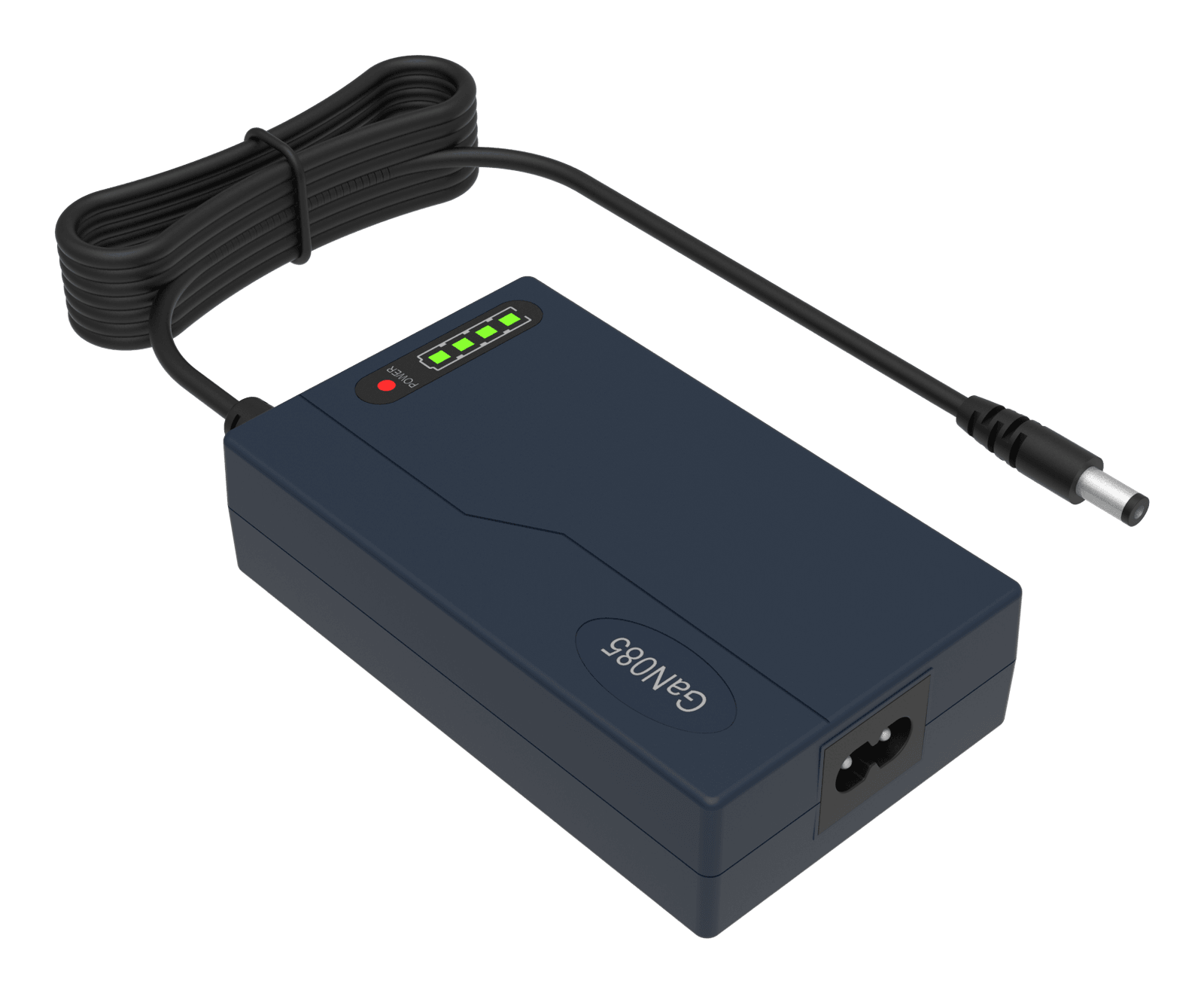

GAN085 85W GaN Power Adapter Series
85W GaN power adapters with fixed DC outputs of 12V, 19V, 24V and 48V for IT, consumer and industrial equipment.
The GAN085 series packs 85W of GaN power into a compact desktop or wall-mount form factor, delivering fixed-voltage DC output. With high efficiency (>90% at 90V AC input), universal 90–264V AC input and short-circuit / over-voltage / over-current protection, it is a versatile power supply for laptops, consumer electronics, surveillance and home appliances.
Certifications
CEPSEFCCUKCAETL
Key Features
- AC/DC desktop power adapter
- Small size
- High efficiency, >90% at AC 90V input
- Universal AC input, wide range cover 90~264V
- Meet EN62368, EN55032, EN61000 & UL62368
- Protection: Short circuit / Over voltage / Overcurrent
- 1 years warranty
Models
4 models in the GAN085 series.
| Model | Voltage | Current | Power | Efficiency | Protection | Applications |
|---|---|---|---|---|---|---|
| GaN085-120060 | 12V | 6A | 72W | 93% | Over-voltage, over-current and short-circuit protection | — |
| GaN085-190043 | 19V | 4.3A | 81.7W | 93.5% | Over-voltage, over-current and short-circuit protection | — |
| GaN085-240035 | 24V | 3.5A | 84W | 93.5% | Over-voltage, over-current and short-circuit protection | — |
| GaN085-480018 | 48V | 1.8A | 86.4W | 92% | Over-voltage, over-current and short-circuit protection | — |
Interested in the GAN085 series?
Send us your battery pack specs or device requirements — we reply with a matched model, pricing and lead time.
