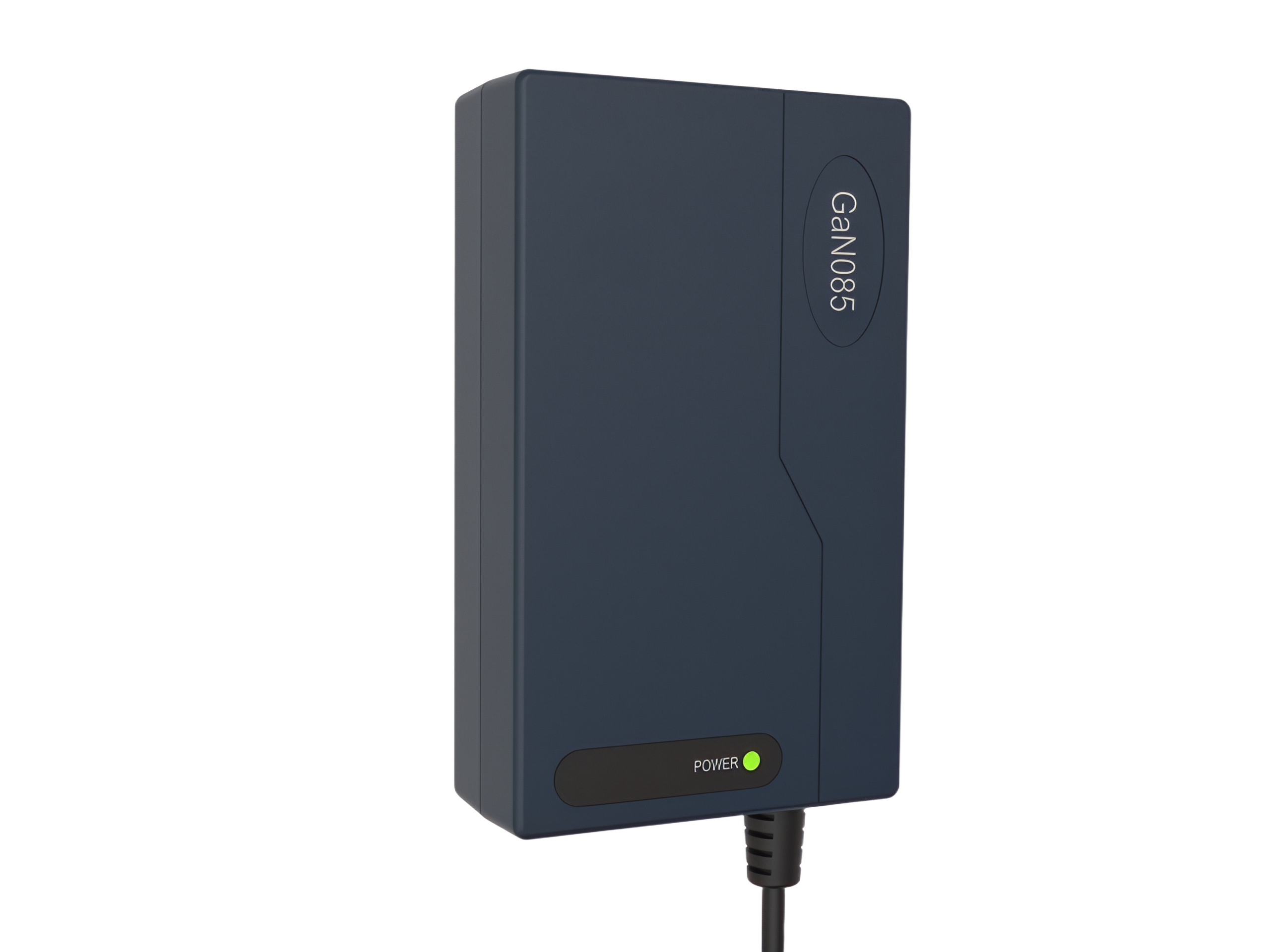

GAN085
85W GaN power adapters with fixed DC outputs of 12V, 19V, 24V and 48V for IT, consumer and industrial equipment.
85W.
In your hands.
The GAN085 series packs 85W of GaN power into a compact desktop or wall-mount form factor, delivering fixed-voltage DC output. With high efficiency (>90% at 90V AC input), universal 90–264V AC input and short-circuit / over-voltage / over-current protection, it is a versatile power supply for laptops, consumer electronics, surveillance and home appliances.
Big power.
Compact footprint.
85W GaN power adapters with fixed DC outputs of 12V, 19V, 24V and 48V for IT, consumer and industrial equipment. Engineered for reliable output where space, weight and thermal headroom matter.
Cooler. Lighter.
Higher frequency.
GaN switches at far higher frequency than traditional silicon, cutting switching losses — so more power fits in less volume, with less heat.
Light Tells All.
Ready for any load.

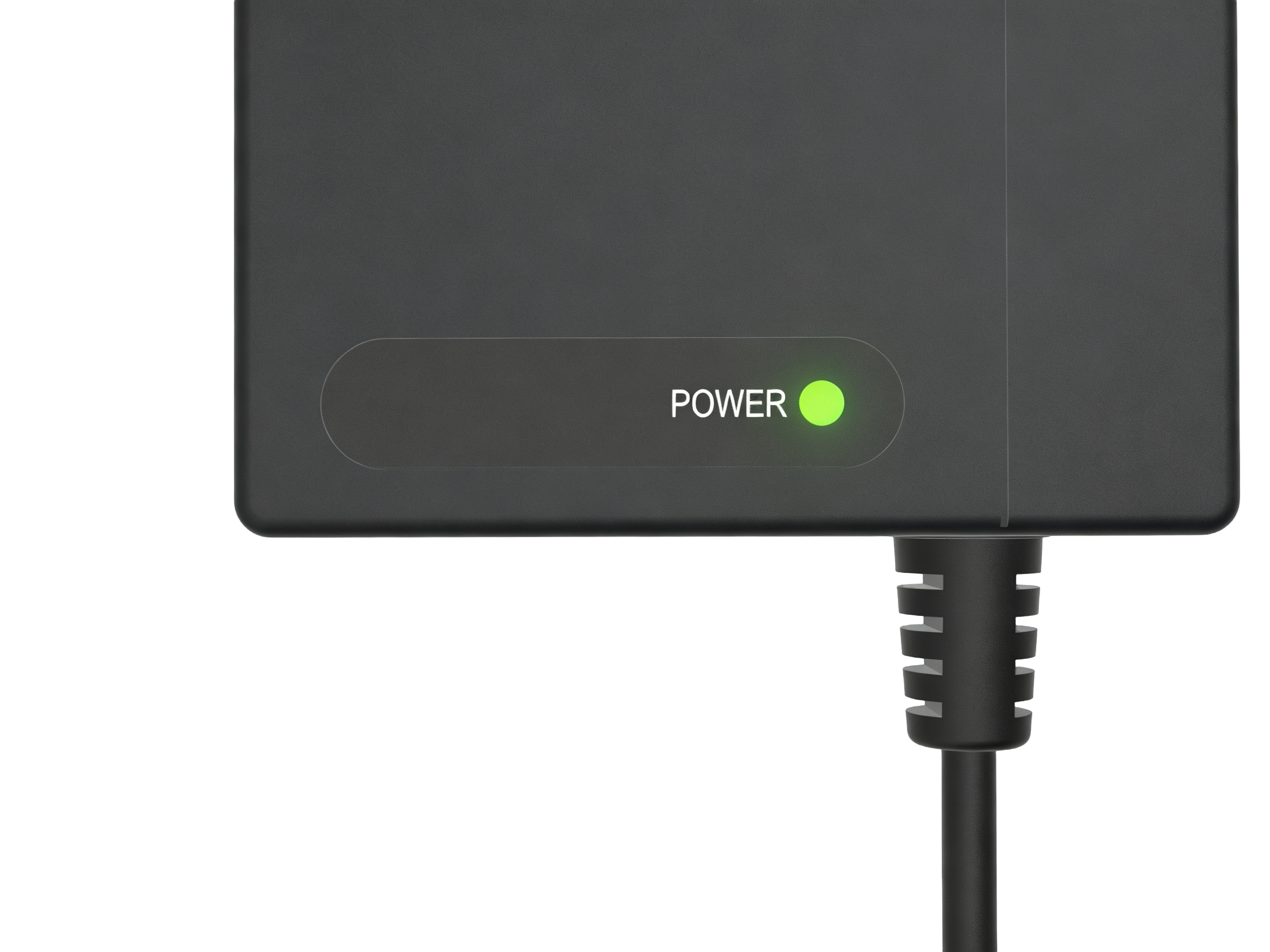

Green light on: power is stable.

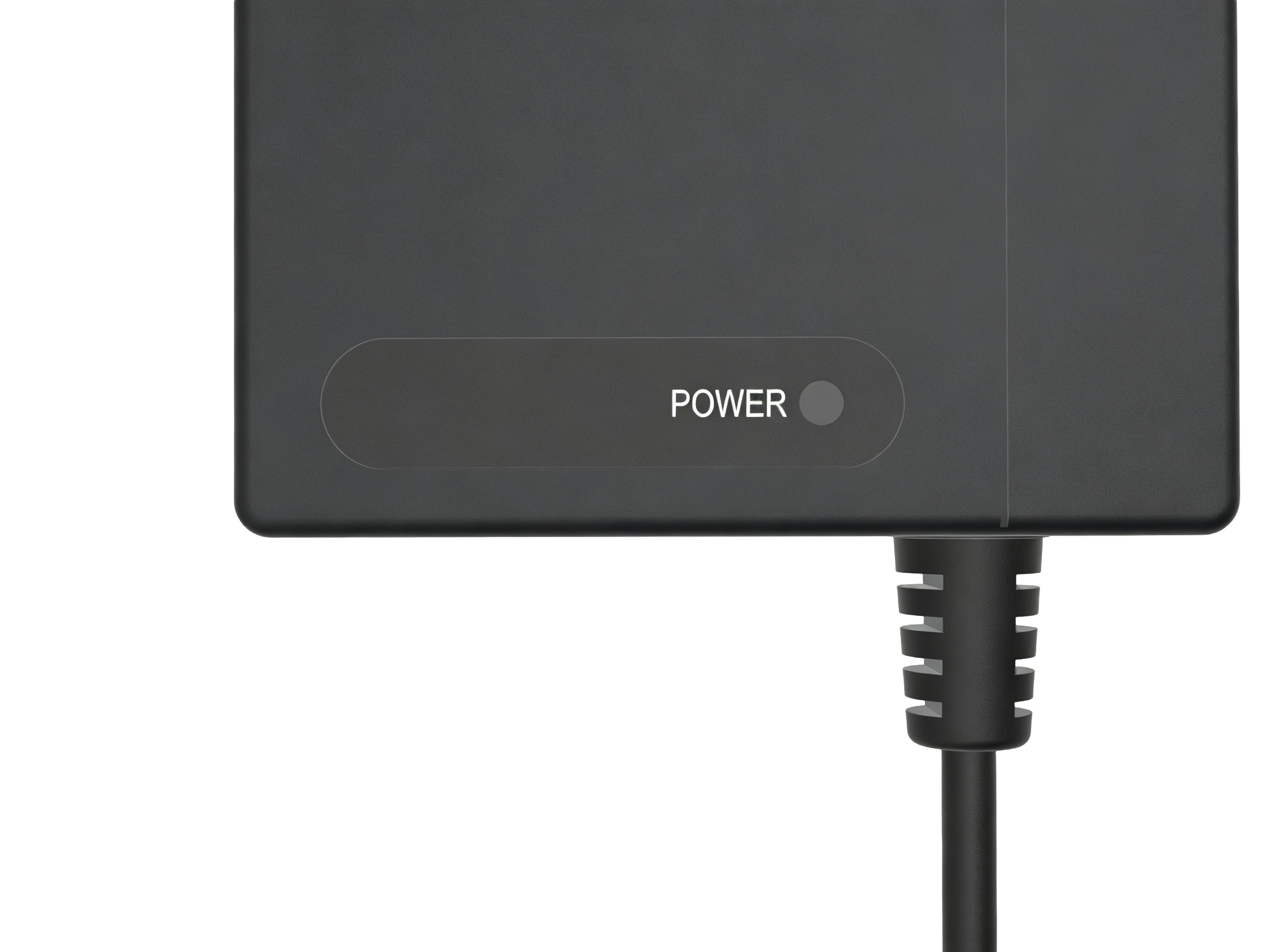

Light off: unplugged or in protection mode.
Clear. Simple. Reassuring.
Built to last.
No worries.
Layered protection guards the connected equipment behind it. Industrial-grade components handle vibration, humidity and temperature swings.
Every detail,
spelled out.
- Input Range
- AC 90~264V 50/60Hz 1.7A
- Output Range
- 12V/6A, 19V/4.3A, 24V/3.5A, 48V/1.8A (max 86.4W)
- Output Protection
- Short-circuit, over-voltage, over-current protection
- Efficiency
- >90% at 90V AC input
- Safety Certifications
- CE / PSE / cETLus / SAA / CB / FCC / UKCA
- Dimensions & Weight
- 250g
Need it customized?
Tell us your voltage, current and connector — we'll tune the GAN085 or build a fresh power stage around your spec.
