GAN170
170W GaN power adapters with fixed DC outputs of 12V, 19V, 24V and 48V for IT, consumer and industrial equipment.
170W.
In your hands.
The GAN170 series delivers 170W from a GaN power stage roughly half the size of a comparable silicon design. With fixed-voltage DC outputs, high efficiency (>91% at 100V AC input) and universal 90–264V AC input, it powers industrial electronics, consumer devices and portable field equipment.
Big power.
Compact footprint.
170W GaN power adapters with fixed DC outputs of 12V, 19V, 24V and 48V for IT, consumer and industrial equipment. Engineered for reliable output where space, weight and thermal headroom matter.
Cooler. Lighter.
Higher frequency.
GaN switches at far higher frequency than traditional silicon, cutting switching losses — so more power fits in less volume, with less heat.
Light Tells All.
Ready for any load.

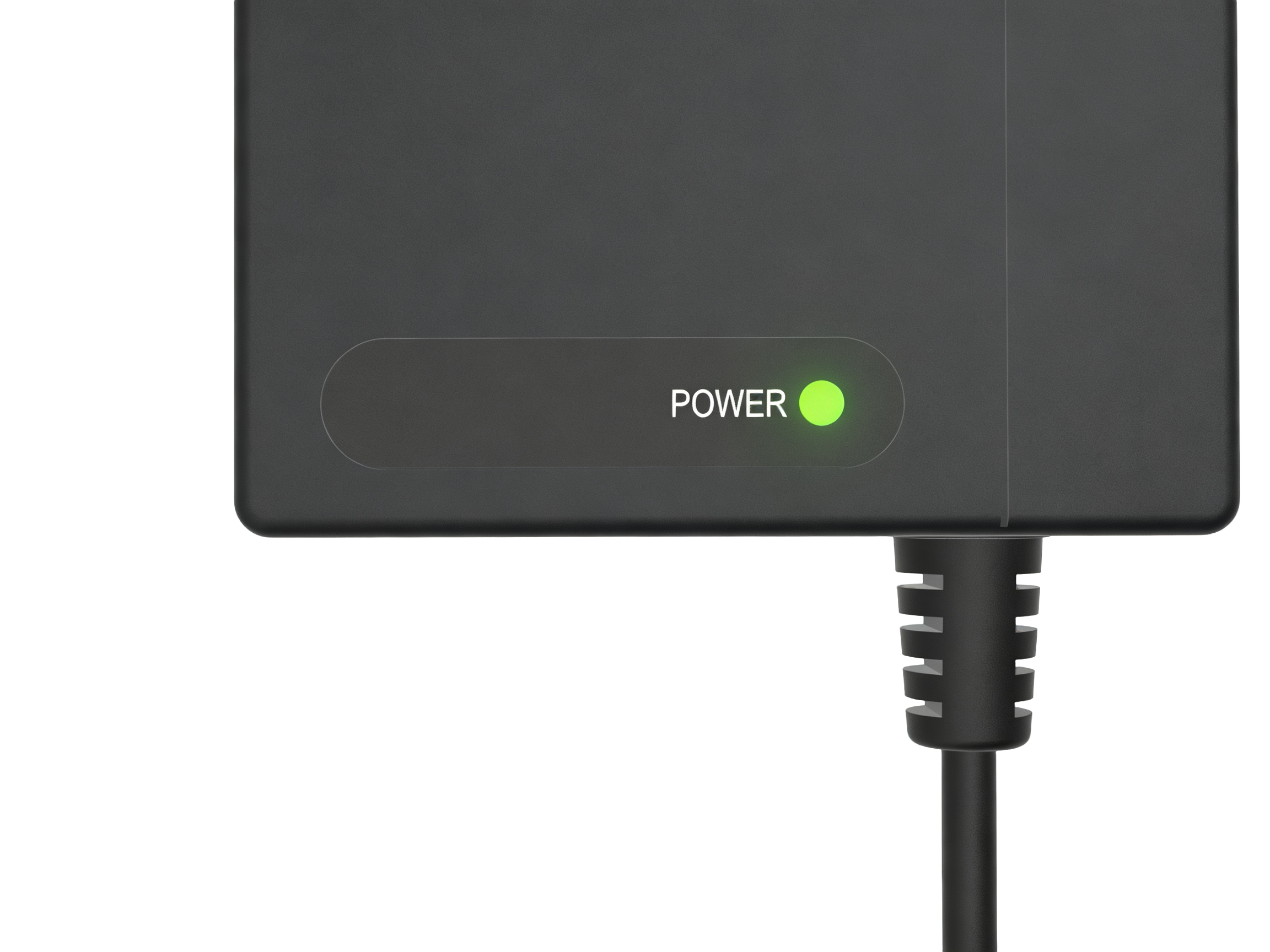

Green light on: power is stable.

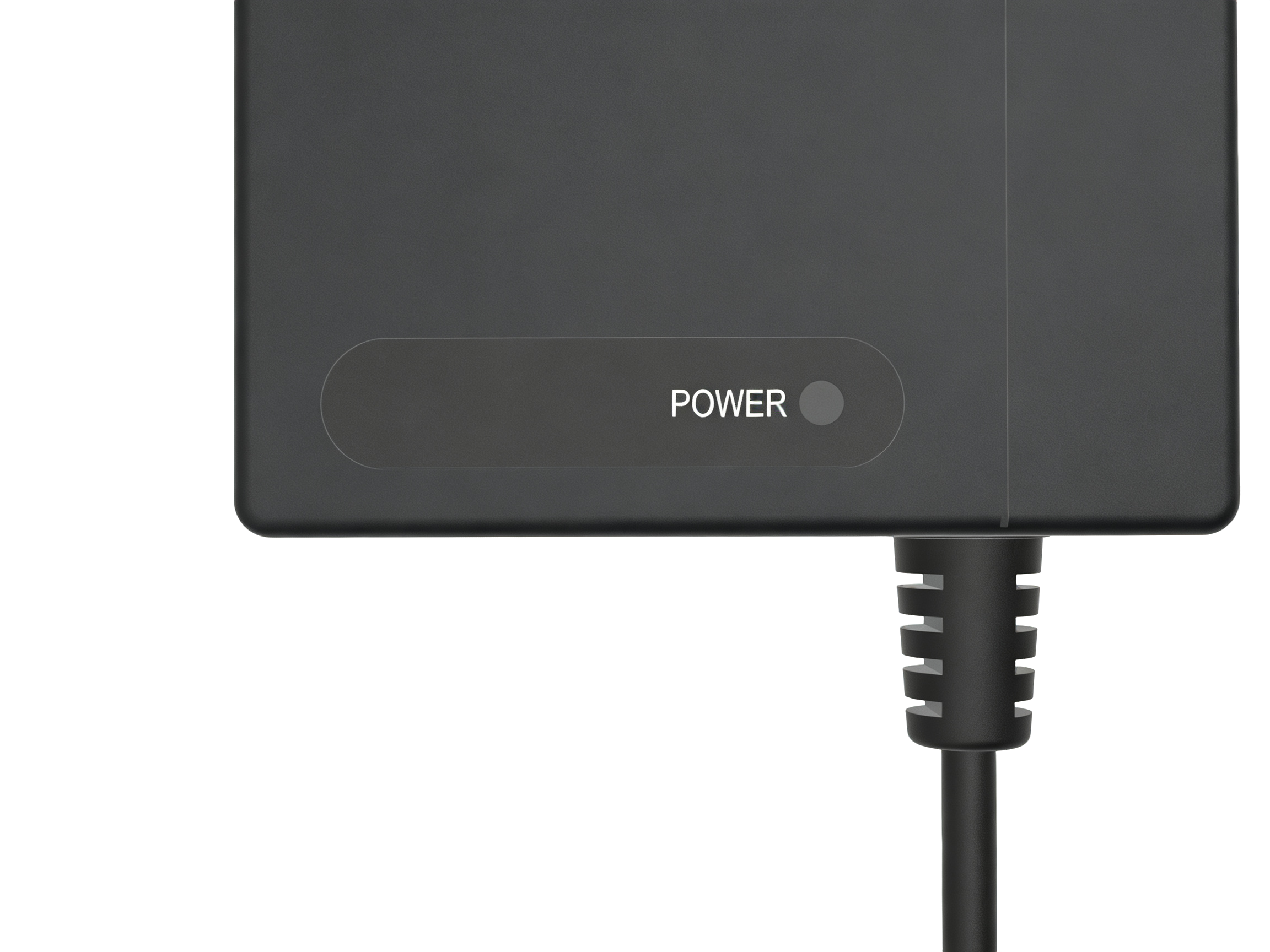

Light off: unplugged or in protection mode.
Clear. Simple. Reassuring.
Built to last.
No worries.
Layered protection guards the connected equipment behind it. Industrial-grade components handle vibration, humidity and temperature swings.
Every detail,
spelled out.
- Input Range
- AC 90~264V 50/60Hz 2.0A
- Output Range
- 12V/12A, 19V/8A, 24V/7A, 48V/3.5A (max 168W)
- Output Protection
- Short-circuit, over-voltage, over-current protection
- Efficiency
- >91% at 100V AC input
- Safety Certifications
- CE / PSE / cETLus / SAA / CB / FCC / UKCA
Need it customized?
Tell us your voltage, current and connector — we'll tune the GAN170 or build a fresh power stage around your spec.
