TA3000
3000W-class balancing charger for large UAV and drone battery packs — high-power multi-cell balancing built for depot and field turnaround.
Two channels, 3000W. Dual independent outputs — each programmable 20–60V / 5–50A — charge two packs at once or push full power through one.
Smart four-stage charging. Pre-charge → CC → CV → cut-off. Supports LiPo, LiFe, Li-ion, LTO, NiMH and more — every chemistry, one charger.
Built-in 2.0A balancer. Active per-cell equalization on every 6S–14S pack — no external balancer needed, every cell converges to the same voltage.

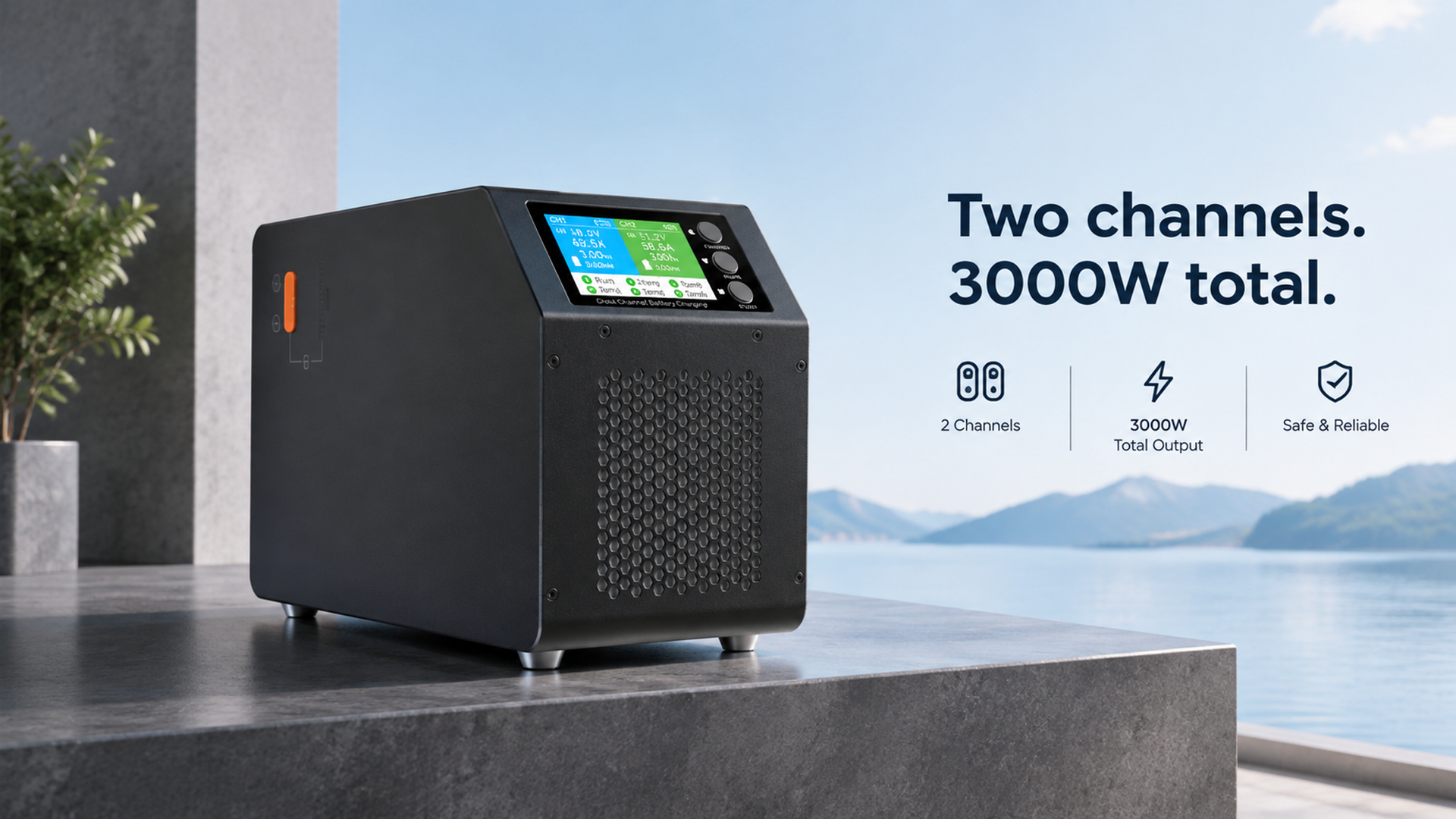

Dual Channel Output — Two channels, 3000W total
Four stages.
Every chemistry.
Pre-charge → constant current → constant voltage → automatic cut-off. The TA3000's intelligent curve adapts to LiPo, LiHV, LiFe, Li-ion, LTO, NiMH, NiCd and AGM — keeping cells safe through every phase.
Built-in balancer.
Every cell balanced.
A dedicated 2.0A balancing circuit on each channel actively monitors and equalizes every cell in 6S–14S packs during charge — no external balancer needed. Cells converge to the same voltage so aging cells never hide inside an average.
90–264V.
Go anywhere.
Wide-range AC input with active PFC (PF > 0.95 at full load) means the TA3000 plugs into any wall outlet worldwide — no voltage selector, no external power factor correction. Indoor lab or outdoor field, it just works.

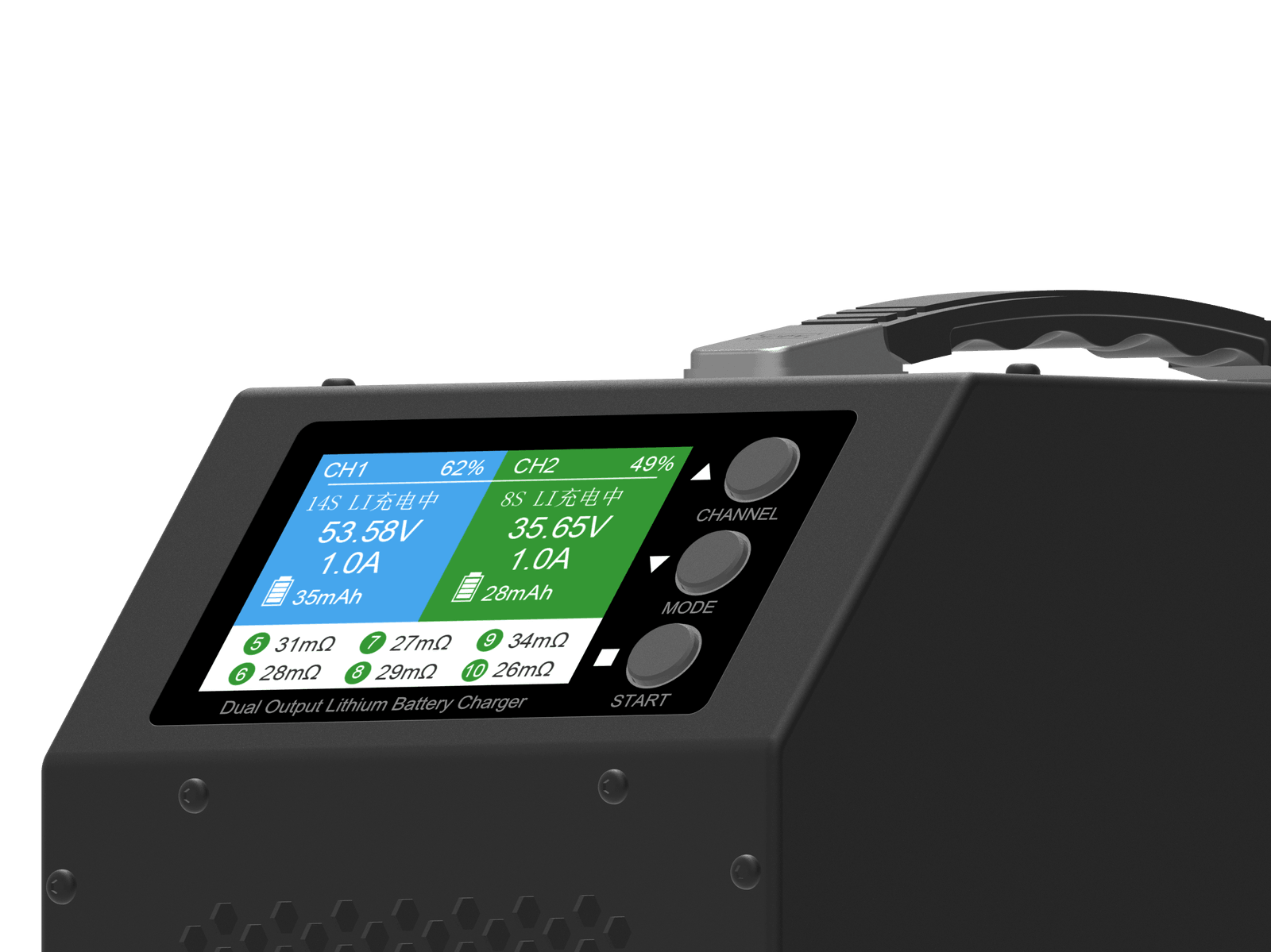

2.8″ IPS LCD.
Fully programmable.
Set charge voltage, current and chemistry from the bright IPS panel — no PC software needed. Real-time voltage, current, capacity and temperature readings keep you in control from pre-flight prep to post-mission maintenance.

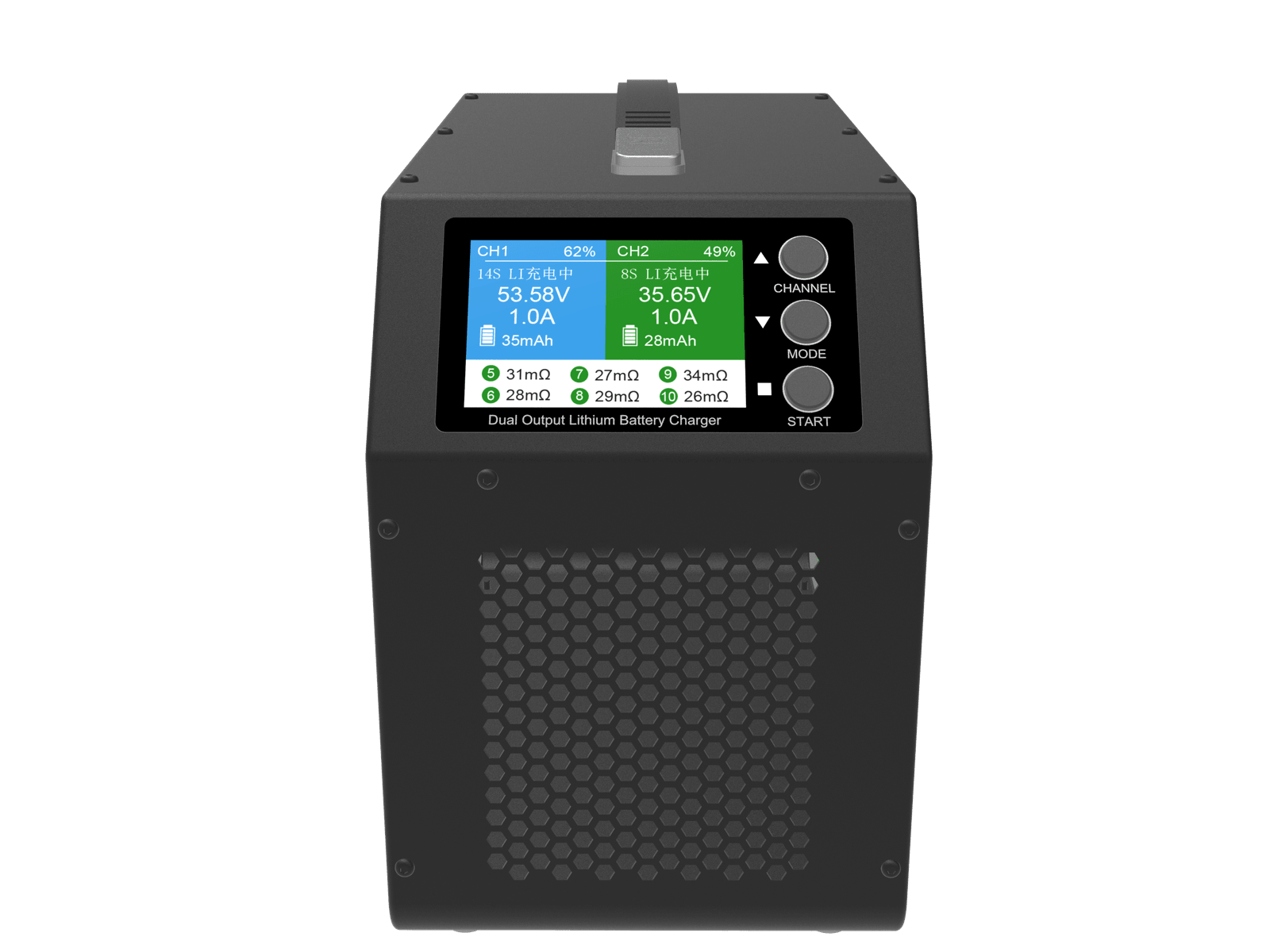

Industrial grade.
No worries.
Short-circuit, over-voltage, over-temperature and reverse-polarity protection guard the charger and every battery behind it. Certified to IEC62368-1 with 30,000-hour MTBF and vibration-tested for real UAV field conditions.
Every detail,
spelled out.
- Input Range
- AC 100–240V rated, 50/60Hz (operating range 90–264V; output derated below AC 150V)
- Output Range
- 2 × DC 20–60V, 5–50A per channel, programmable via LCD (3000W max total)
- Output Protection
- Over-voltage (>110% of setting) · short-circuit shutdown · over-temperature (auto-recover) · reverse polarity (mechanical connector)
- Charging Profile
- Smart 4-stage curve; LiPo/Li-ion/LFP/Pb-acid end at ≤0.1× set current or timeout, NiMH/NiCd via -ΔV cutoff
- Balance & Discharge
- 2 × 6S–14S balancer (2.0A fixed) · 2 × 0.1–3.0A discharging, user-set
- Status Display
- Smart 2.8″ IPS LCD, fully programmable
- PD Port
- USB-C PD3.0: 5V/9V/12V/15V/20V 3A, PPS 3.3–21V 3A
- Efficiency & Power Factor
- 92% typ. @ AC 230V, 60V/50A output · PF > 0.95 @ AC 100V full load
- Safety Certifications
- IEC 62368-1 · EN 55032 / FCC Part 15 Class B · Hi-Pot 3000V
- Dimensions & Weight
- 300 × 236 × 148mm / 3.0kg
- Applicable Batteries
- LiPo / LiHV / LiFe / Li-ion / LTO / NiMH / NiCd / AGM, 6S–14S (22–52V), 5–200Ah
- Applicable Industries
- Drone & UAV battery packs and similar high-power charging applications
Find your power class.
Need it customized?
Tell us your voltage, current and connector — we'll tune the TA3000 or build a fresh power stage around your spec.
