UAV Chargers

TAD300

300W-class balancing charger for UAV battery packs with per-cell equalization.

Full Specifications →

CE · FCC · IEC 62368-1Industrial Grade

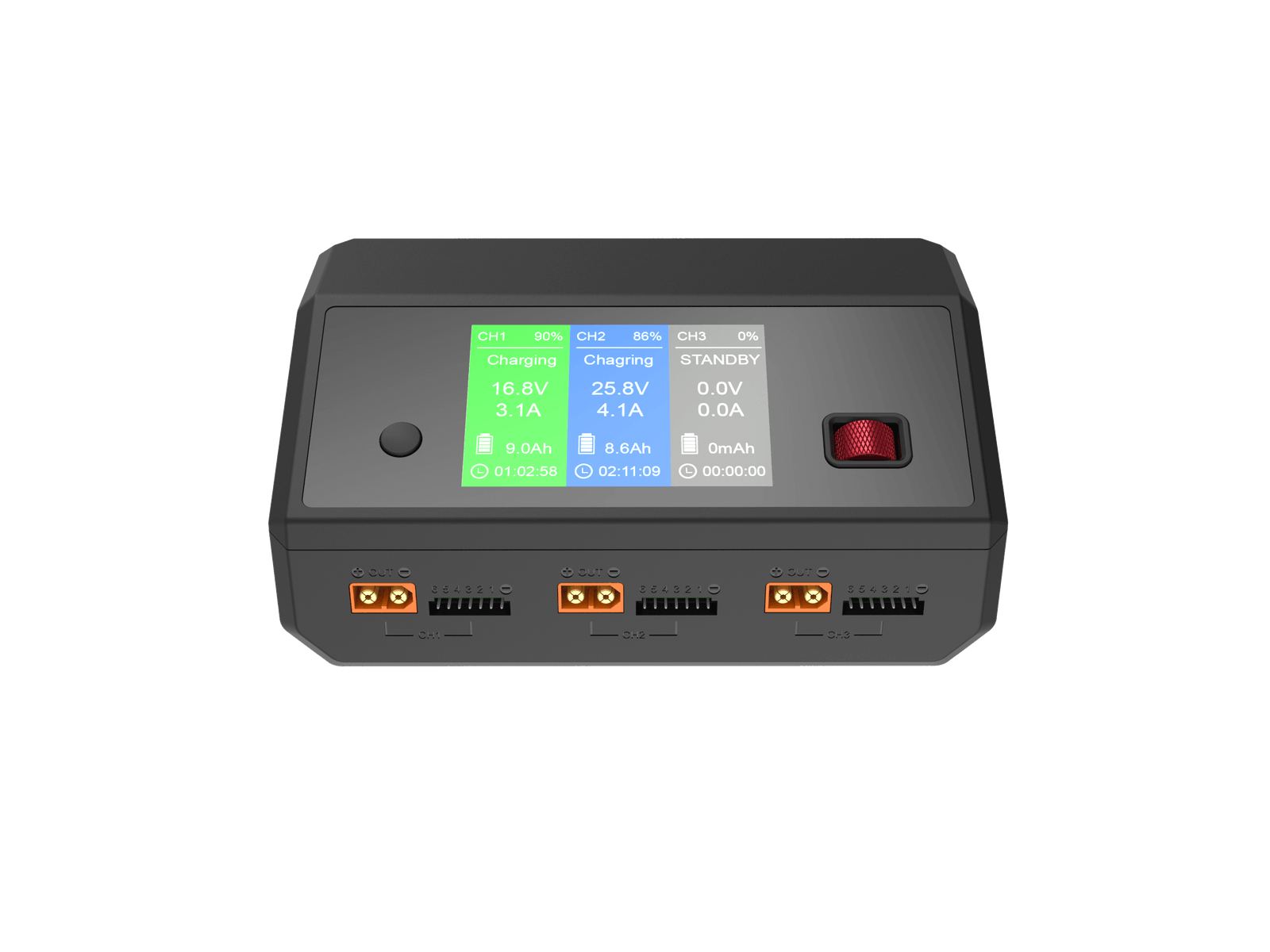

TAD300 UAV Balancing Charger product render

SCROLL

Three smart channels. Charge three packs at once — up to 300W per port, auto-start on connect.

Per-cell equalization. Every cell is monitored and balanced, so aging cells never hide inside an average.

Built for the field. Rugged body, active cooling, and storage mode to park packs safely between missions.

Live channel monitoring

Fleet status,
at a glance.

Each port reports its own state — voltage, current, delivered capacity and elapsed time — on a screen your ground crew can read without a manual.

Up to 300W per channel — 15A / 26V (900W total on DC)
8 chemistries: LiPo · LiHV · LiFe · Li-ion · LTO · NiMH · NiCd · AGM
Auto-start on connect · AC/DC dual input (DC 7–32V)
60W USB-C PD 3.0 port for field laptops & phones

CH1Charging

Voltage22.2V

Current13.5A

Delivered9.0Ah

CH2Charging

Voltage25.8V

Current11.6A

Delivered8.6Ah

CH3Standby

Voltage0.0V

ConnectAuto-start

Per-cell equalization

Equalize every cell.
Fly longer.

The TAD300 carries a 1.6A balancer on every channel — double the usual 0.8A — balancing each cell individually, not just the pack, so aging cells stop hiding inside an average. Watch six cells converge:

TAD300 MCU — ARM Cortex-M4 32-bit core processor

32-bitARM Cortex-M4 core processor
1–240Interrupts, plus NMI
12-cycleInterrupt latency

Battery maintenance

Discharge & store.
Safely.

A built-in 0.1–3.0A discharge circuit keeps every pack healthy between sorties — bleed down to storage voltage, re-balance cells, and park batteries so they're mission-ready when you are.

Discharge 0.1–3.0AProgrammable per channel

Storage modeHold packs at safe voltage

Auto cutoffStops at target voltage

Longer lifeLess capacity loss in storage

TAD300 UAV Balancing Charger discharge path diagram

Built for the field

Ready anywhere.
Light to carry.

60W USB-C PD 3.05 / 9 / 12 / 15 / 20V 3A · PPS 3.3–21V — power laptops & phones on site

240 × 117 × 66 mmCompact footprint for 900W of charging power

800 gSlots into a field kit or vehicle without weighing you down

Field-proven protection

Built for the field.
No worries.

Layered protection guards the charger and the battery behind it. Industrial-grade components handle vibration, humidity and temperature swings in real UAV operations.

Over-voltageOutput clamped to safe limits

Short-circuitAuto shutdown on fault

Reverse polarityBattery connection protected

Over-temperatureThermal derating under load

TAD300 UAV Balancing Charger safety and protection detail

IEC62368-1FCC / EN55032 Class BMTBF 30,000hHi-Pot 3000VVibration 10–50Hz 2G

Specifications

Every detail,
spelled out.

Input Range: AC 100–240V rated, 50/60Hz (range 90–264V) · DC 12–24V rated (range 7–32V, max 40A)
Output Range: 3 × DC 7–26V, 1–15A per channel, programmable via LCD (3 × 300W max on AC; 900W max on DC input)
Output Protection: Over-voltage (>110% of setting) · short-circuit shutdown · over-temperature (auto-recover) · reverse polarity (mechanical connector)
Charging Profile: Smart 4-stage curve; LiPo/Li-ion/LFP/Pb-acid end at ≤0.1× set current or timeout, NiMH/NiCd via -ΔV cutoff
Balance & Discharge: 3 × 2S–6S balancer (1.6A fixed) · 3 × 0.1–3.0A discharging, user-set
Status Display: Smart 2.8″ IPS LCD, fully programmable
PD Port: USB-C PD3.0: 5V/9V/12V/15V/20V 3A, PPS 3.3–21V 3A
Efficiency & Power Factor: 90% typ. @ AC 230V, 20V/15A output · PF > 0.98 @ AC 100V full load
Safety Certifications: IEC 62368-1 · EN 55032 / FCC Part 15 Class B · Hi-Pot 3000V
Dimensions & Weight: 240 × 117 × 66mm / 0.8kg
Applicable Batteries: LiPo / LiHV / LiFe / Li-ion / LTO / NiMH / NiCd / AGM, 2S–6S (7.4–22.2V), 2–50Ah
Applicable Industries: Drone & UAV battery packs and similar applications
